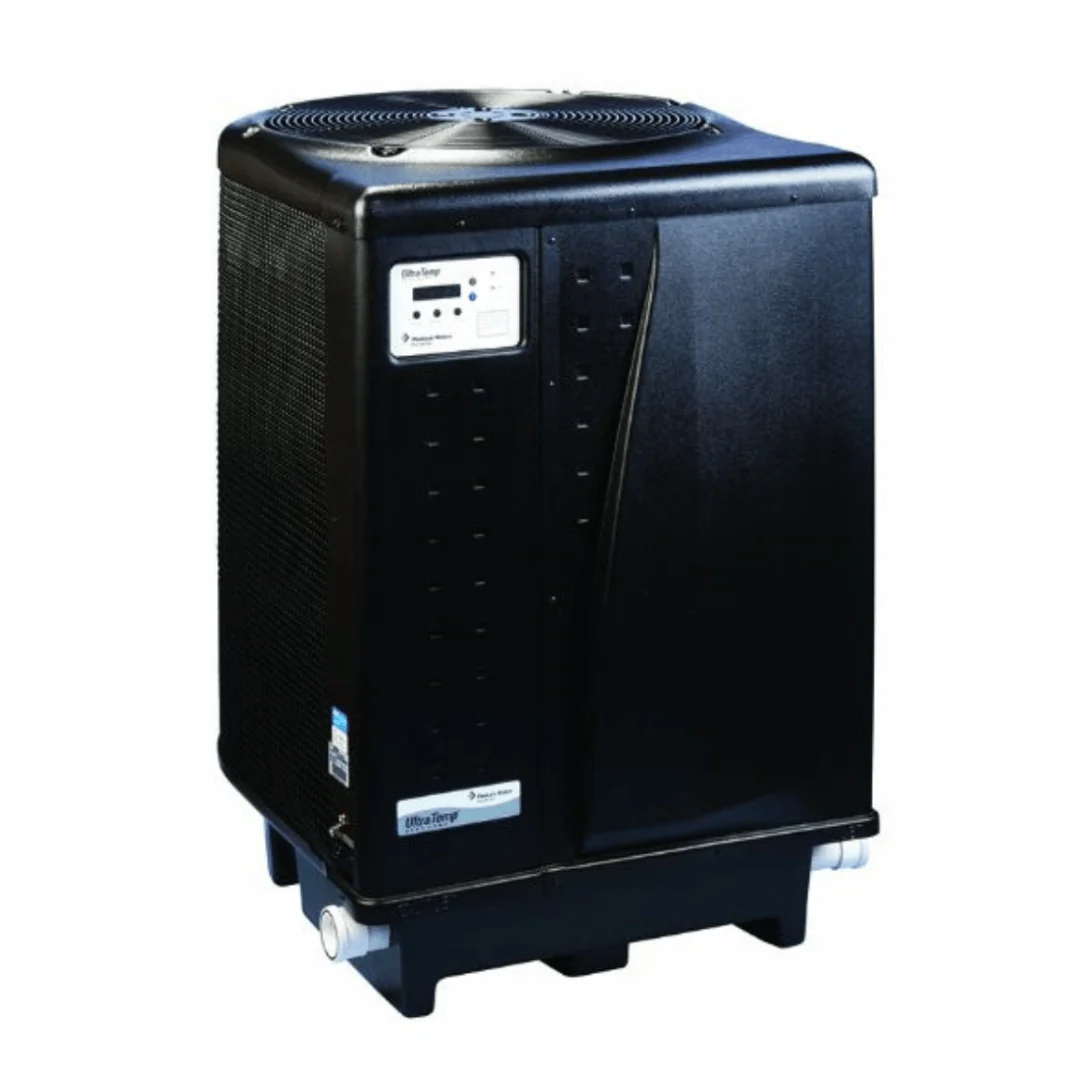

UltraTemp® High-Performance Pool Heat Pump

An energy-efficient, cost-effective solution for heating pools and spas.

• First heat pump using R410A refrigerant, which is non-ozone-depleting
• 100% titanium heat exchanger ensures corrosion-free performance and long life
• LCD control board with easy-to-read, intuitive full-word messages
• AutoSet feature monitors water temperature, adjusting the pump to maintain the desired heat
• Automatic defrost prevents freezing, enabling operation at lower temperatures
• Compatible with all automated control systems
• Durable, corrosion-resistant plastic composite cabinet designed for harsh climates and pool chemicals
• ETL listed for safety
• Thermostatic Expansion Valve (TXV) optimizes refrigerant flow for maximum efficiency and output
• Meets or exceeds all efficiency standards and codes, certified by AHRI

Specifications:

• Brand: Pentair
• Application: Outdoor, Pool, Spa

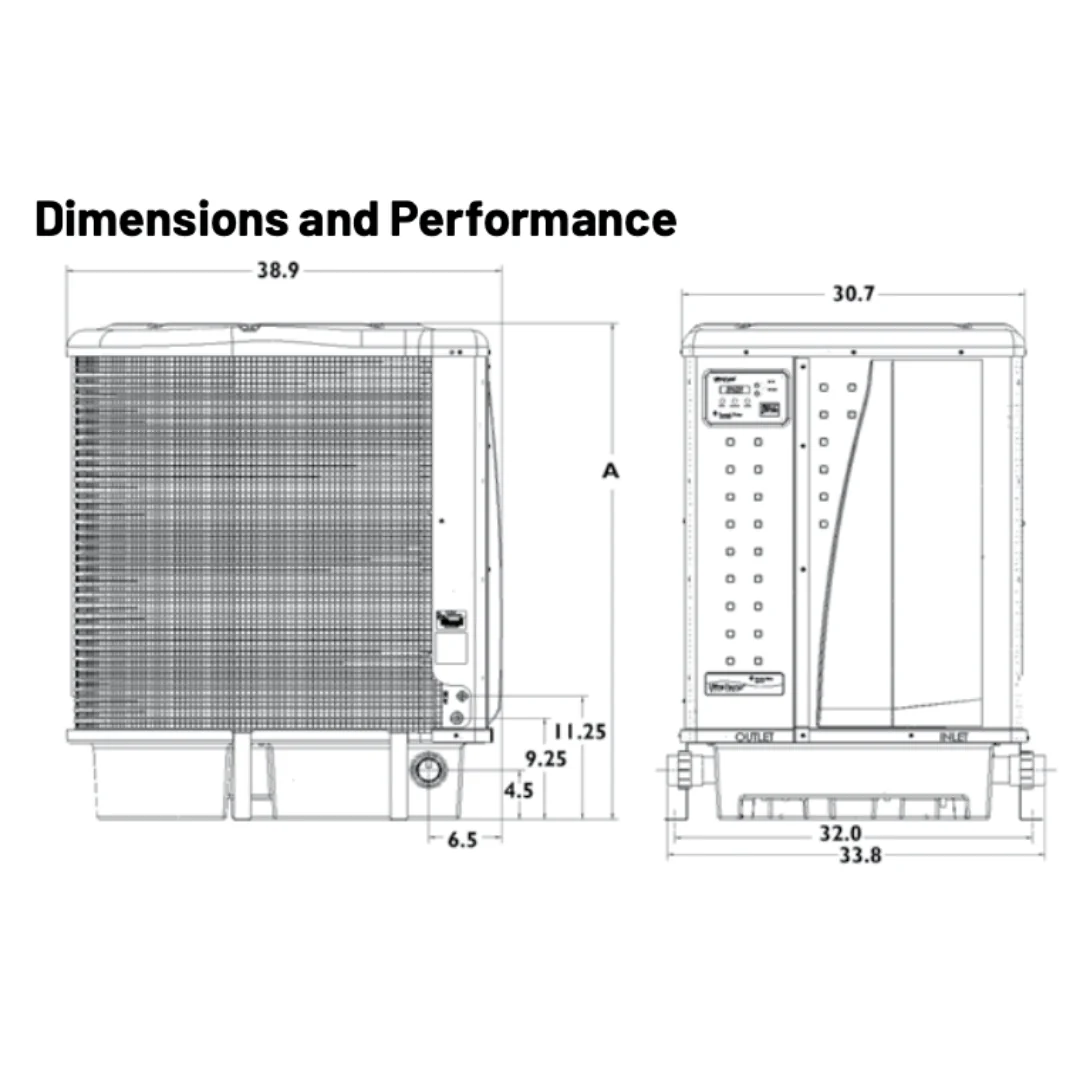

• Shipping Dimensions: 43 x 34 x 51 inch
• BTU Output: 145,000 British thermal unit
• Cabinet Depth: 33.8 inch
• Cabinet Height: 45.5 inch
• Cabinet Width: 38.9 inch
• Commercial, Residential, or Professional: Residential
• Compressor Type: Scroll
• Control Type: Digital
• Weight: 335 pounds
• Electrical Input: 7.2 kilowatts
• Flow Rate Max: 120 gal/min
• Flow Rate Min: 30 gal/min
• Frequency Rating (Hz): 60
• Green or Energy Efficient Product: True
• Heat Exchanger Material: Titanium
• Housing Material: Plastic
• Maximum Circuit Breaker: 50 amperage
• Min Circuit Ampacity: 43 amperage
• Phase: Single
• Refrigerant Model: R410A
• Standards Approvals: AHRI Certified
• Voltage: 230V
• UPC Code: 788379859800

Support Documents:

• Brochure
• Install Guide

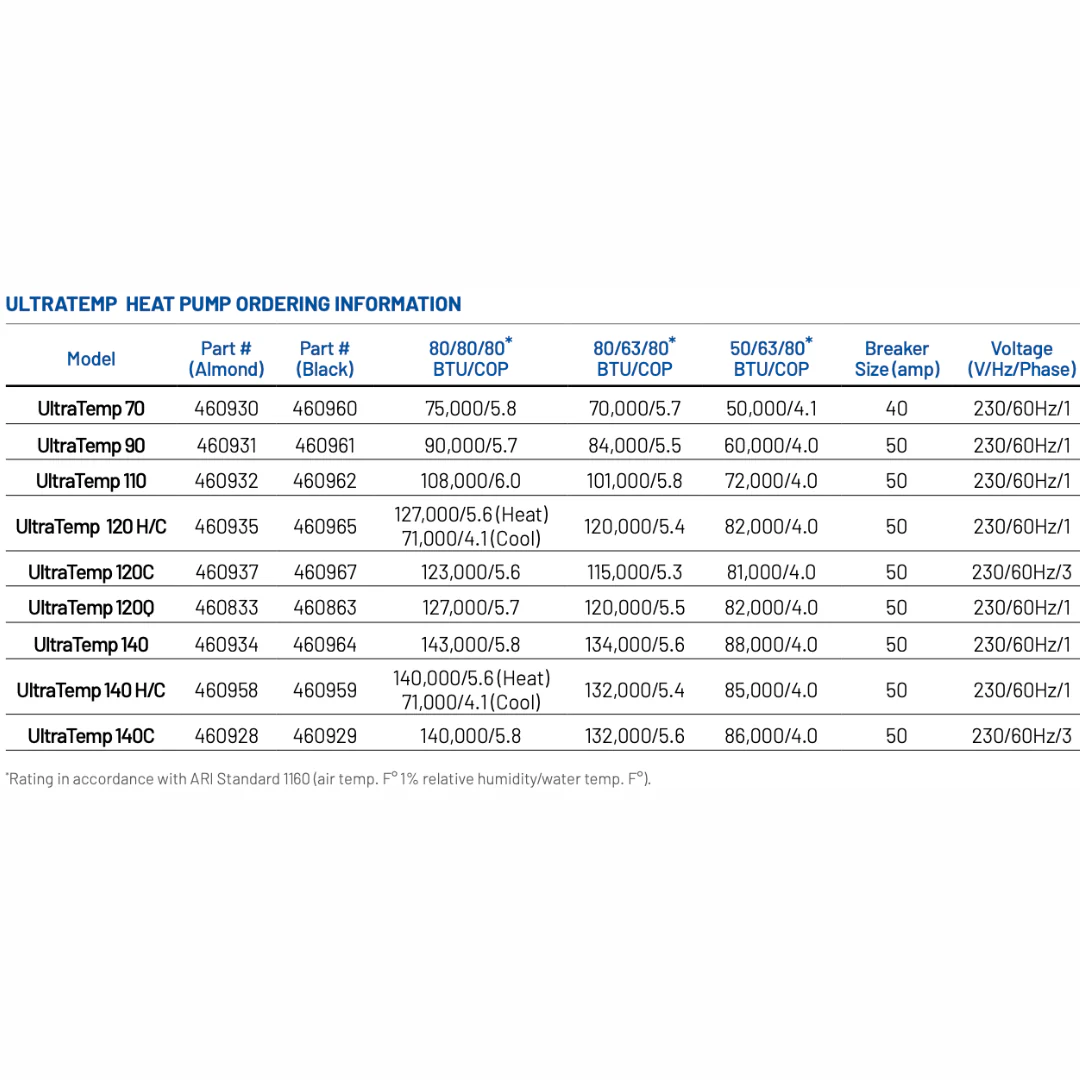

Configurations:

• 460932 UltraTemp 110 Almond
• 460962 UltraTemp 110 Black
• 460935 UltraTemp 120 H/C Almond
• 460965 UltraTemp 120 H/C Black
• 460833 UltraTemp 120Q Almond
• 460863 UltraTemp 120Q Black
• 460934 UltraTemp 140 Almond
• 460964 UltraTemp 140 Black
• 460958 UltraTemp 140 H/C Almond
• 460959 UltraTemp 140 H/C Black
• 462032 UltraTemp 140 H/C Active Defrost Almond
• 460928 UltraTemp 140C Almond
