Hayward 110K BTU HeatPro Heat Pump W3HP21105T
Hayward 110K BTU HeatPro Heat Pump W3HP21105T

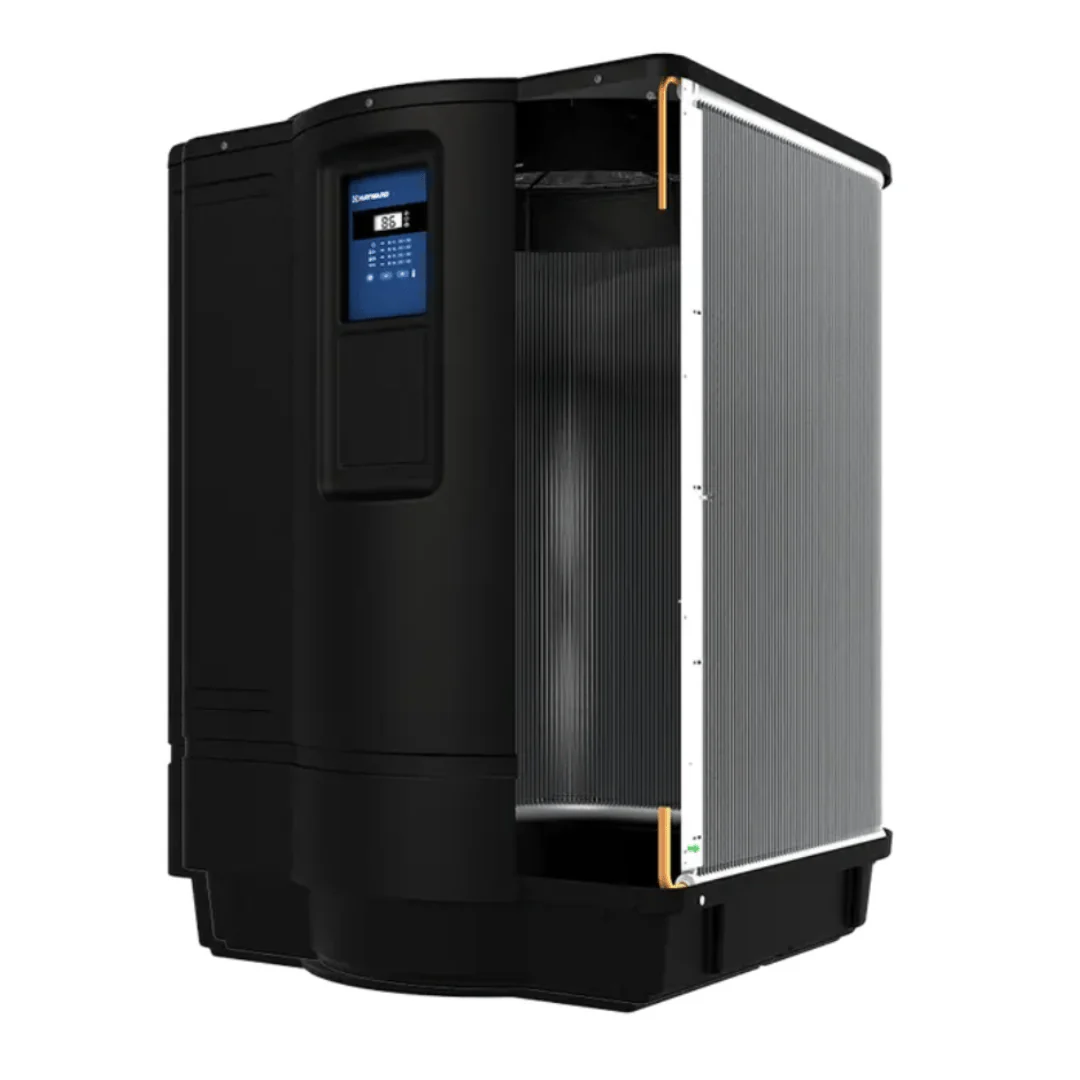

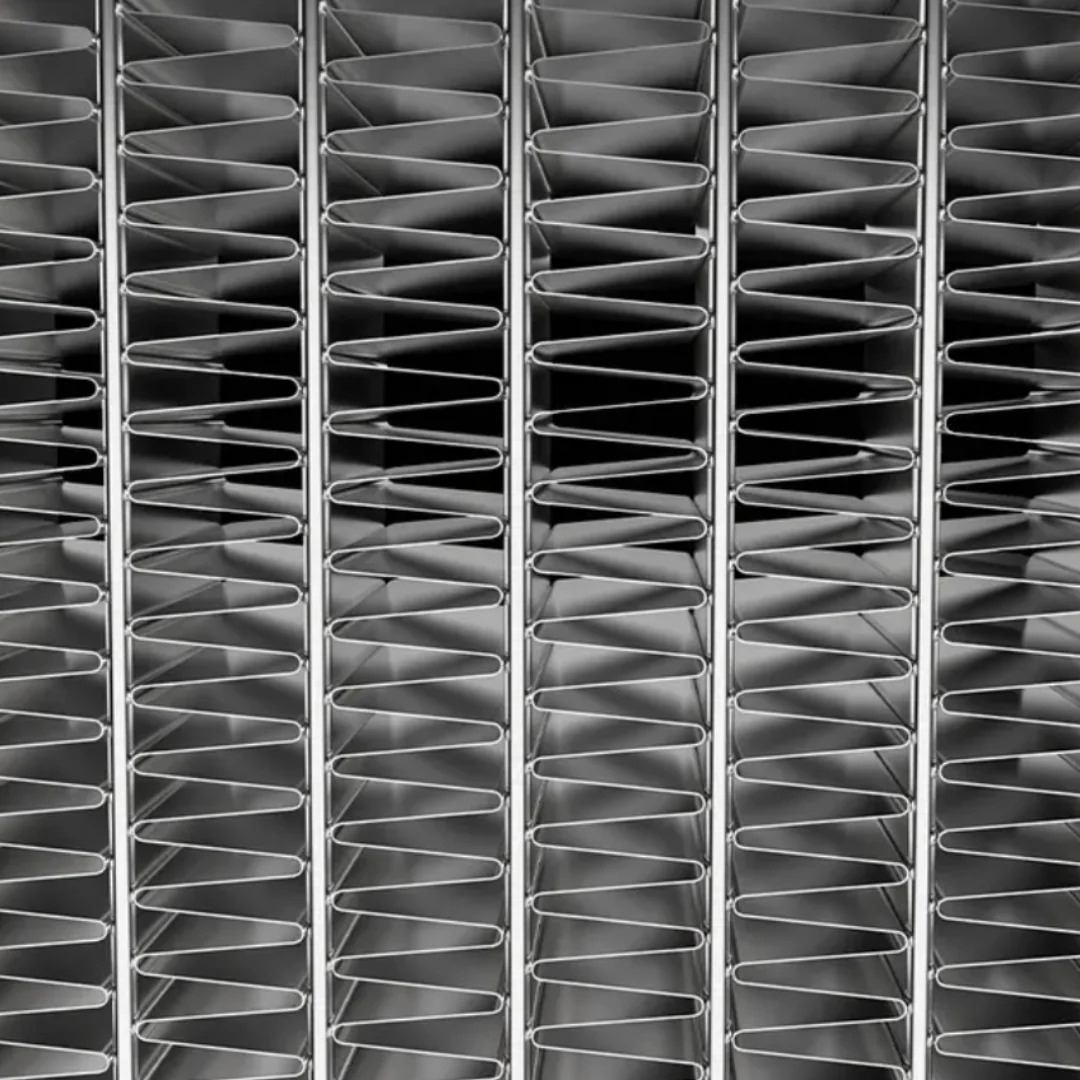

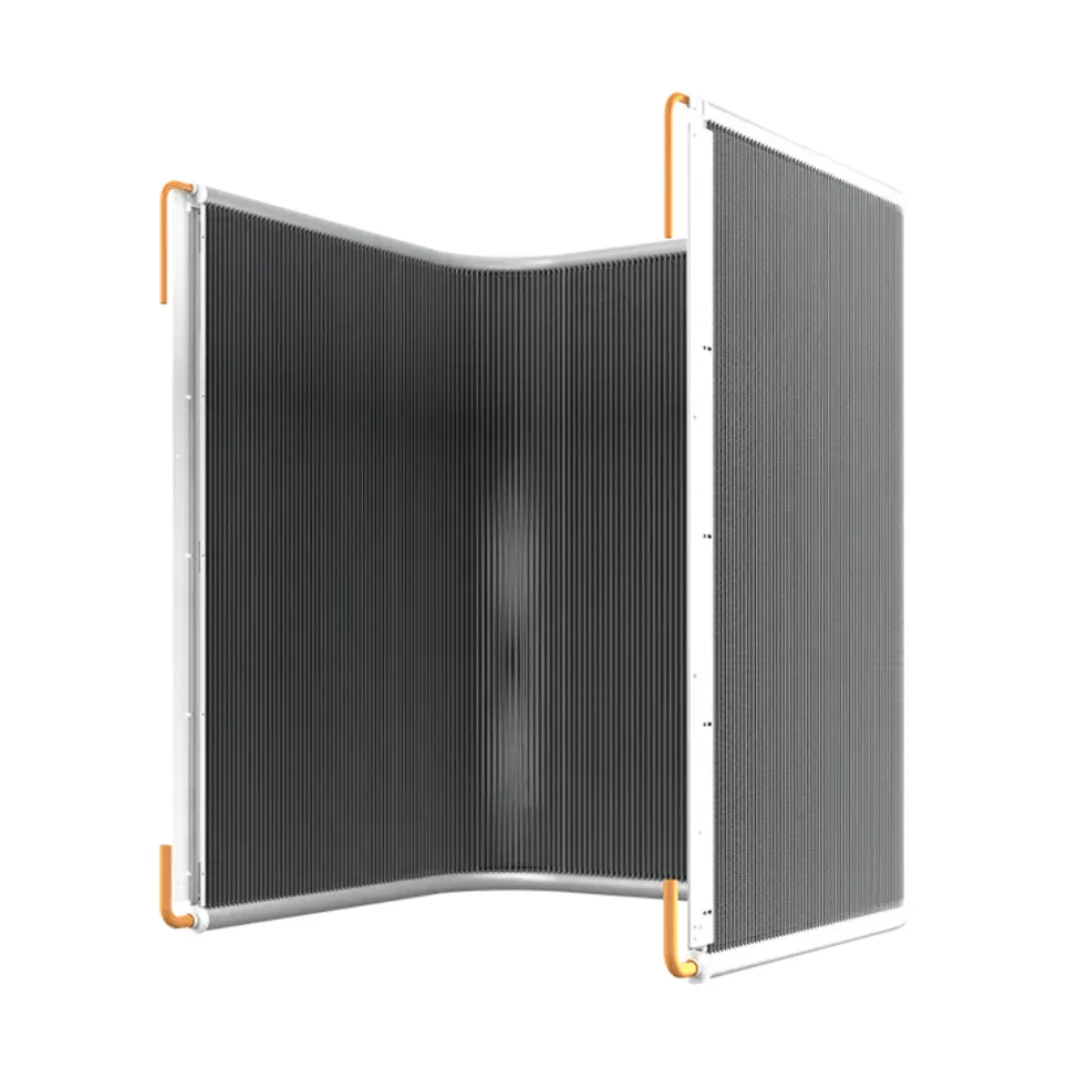

Hayward continues its position as the industry leader in innovation by introducing the Hayward HeatPro Series of heat pumps that utilize industry-first microchannel heat exchanger technology to get your pool water to the perfect temperature. Microchannel = More versatility! More energy efficiency! More affordable over time!
- Improved Heating in Cool Weather: The patent-pending defrost algorithm provides improved heating capacity at 50ºF and below, so you can extend swim season.
- Robust Coil Structure: Protects against fin damage during installation and outdoor impacts.
- Best in Class Corrosion Resistance: TCP coating developed by Naval Air Command for durability in the harshest climates.
- Lasts Longer: Less performance degradation than traditional tube and fin.
- Weight Reduction: Up to 50 lbs lighter than traditional tube and fin.
- Less Complexity: An 85% reduction in braze joints means fewer leak opportunities and increased efficiency.
- Better for Everyone: A significant reduction in refrigerant used means lower environmental impact, reduced energy consumption in production, and is built & assembled in Nashville, TN.
- AHRI Certification: Certified for performance and value.
Specifications:
- Active Defrost: No
- Application: New Construction, Renovation, Pool
- Boost Mode: No
- Brand: Hayward
- Cooling Capability: No
- Heating Capacity (BTU/Hr): 110000
- Heating COP: 5.7000
- Low Ambient Operation: Yes
- Maximum Fuse Breaker Size (Amps): 40.0000
- Minimum Operating Temperature: 40 °F
- Pool Type: In Ground
- Product Dimensions: 44 " x 30.5 " x 33.6 "
- Product Height: 44 in
- Product Length: 33.6 in
- Product Weight: 230 lb
- Product Width: 30.5 in
- Rear Clearance - Heaters: 12 in
- Refrigerant: Yes
- Series Heaters: HeatPro
- Side Clearance - Heaters: 12 in
- Silent Mode: No
- Vertical Clearance - Heaters: 72 in
- Part No.: W3HP21105T W3 HP21105T
Support Documents:
The Hayward W3HP21105T replaces the discontinued heat pump model W3HP21104T.
