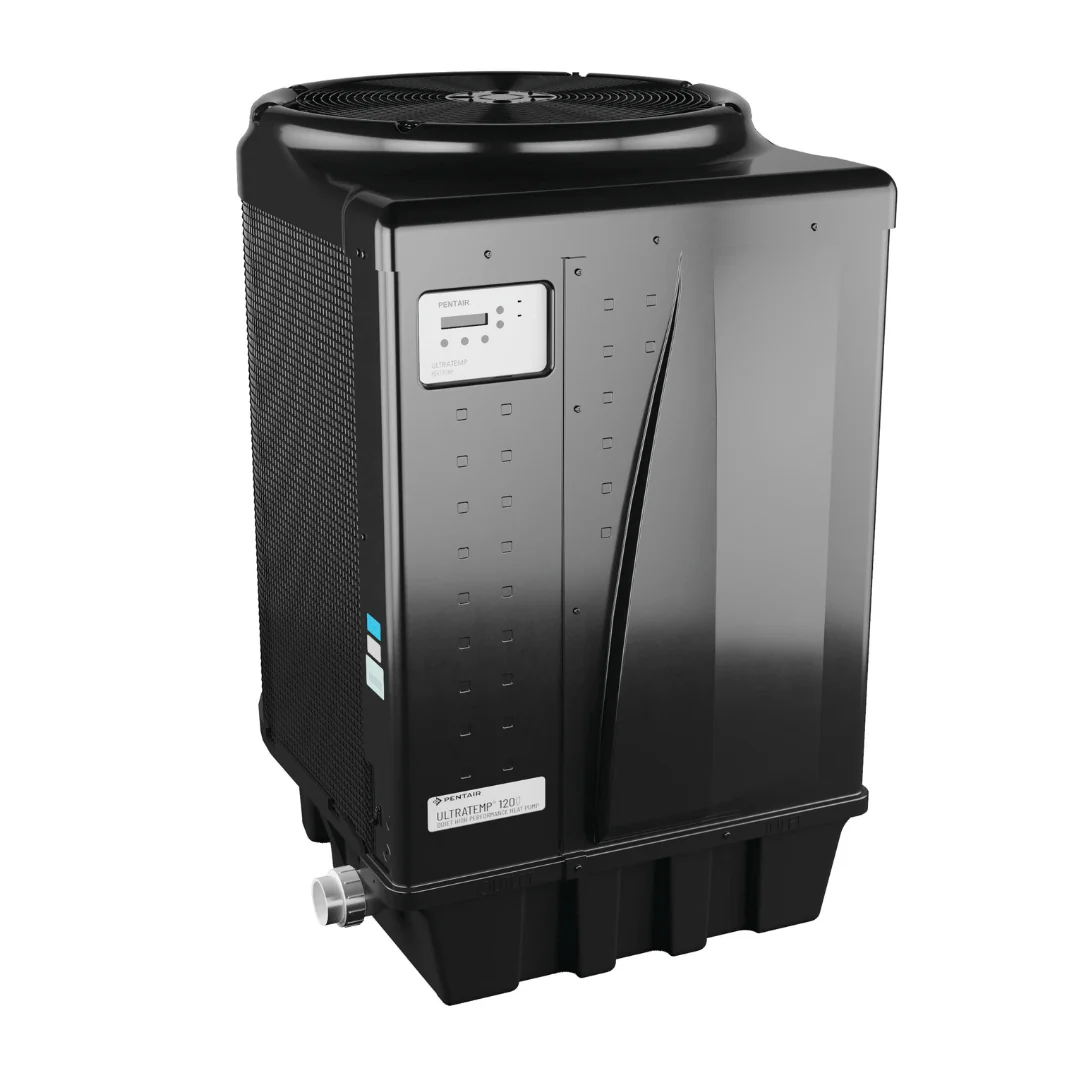

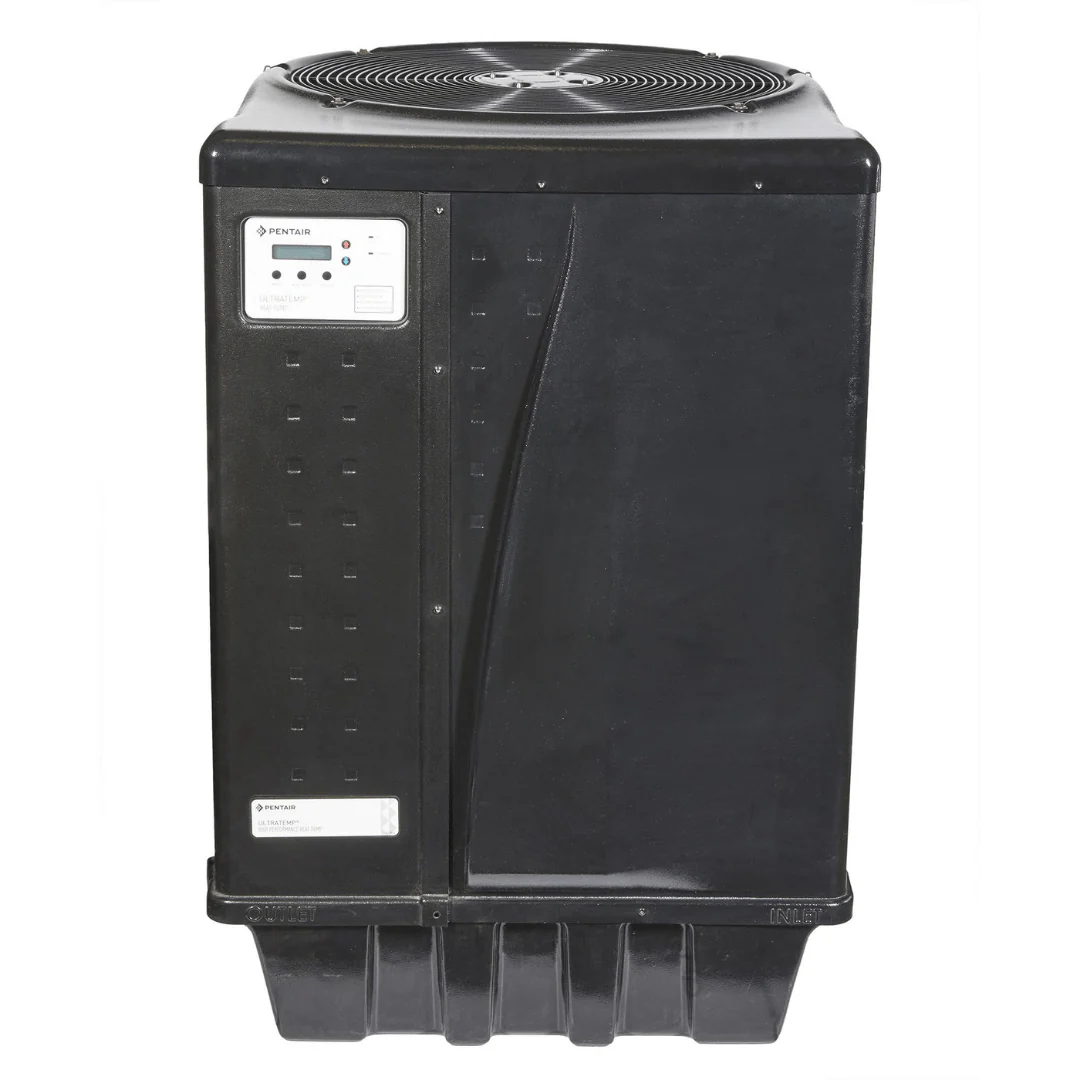

Pentair UltraTemp 120Q Heat Pump Almond, 460833

An energy-efficient, cost-effective solution for heating pools and spas.

• First heat pump using R410A refrigerant, which is non-ozone-depleting.
• 100% titanium heat exchanger ensures corrosion-free performance and long life.
• LCD control board with easy-to-read, intuitive full-word messages.
• AutoSet feature monitors water temperature, adjusting the pump to maintain the desired heat.
• Automatic defrost prevents freezing, enabling operation at lower temperatures.
• Compatible with all automated control systems.
• Durable, corrosion-resistant plastic composite cabinet designed for harsh climates and pool chemicals.
• ETL listed for safety.
• Thermostatic Expansion Valve (TXV) optimizes refrigerant flow for maximum efficiency and output.
• Meets or exceeds all efficiency standards and codes, certified by AHRI.

Support Documents:

• Brochure
• Install Guide

Specifications:

• Brand: Pentair
• Amperage: 50 amperage
• Shipping Dimensions: 34 x 44 x 54 inch
• Application: Outdoor, Pool, Spa
• BTU Output: 127000 British thermal unit
• Commercial, Residential, or Professional: Residential
• Compressor Type: Scroll
• Control Type: Digital Electric
• Weight: 300 pounds
• Flow Rate Max: 120 gal/min
• Flow Rate Min: 30 gal/min
• Frequency Rating (Hz): 60
• Fuel Type: Electric
• Green or Energy Efficient Product: True
• Heat Exchanger Material: Titanium
• Housing Material: Composite
• Ignition Type: Digital
• Maximum Circuit Breaker: 70 amperage
• Min Circuit Ampacity: 50 amperage
• Phase: Single
• Refrigerant Model: R410A
• Voltage: 230V

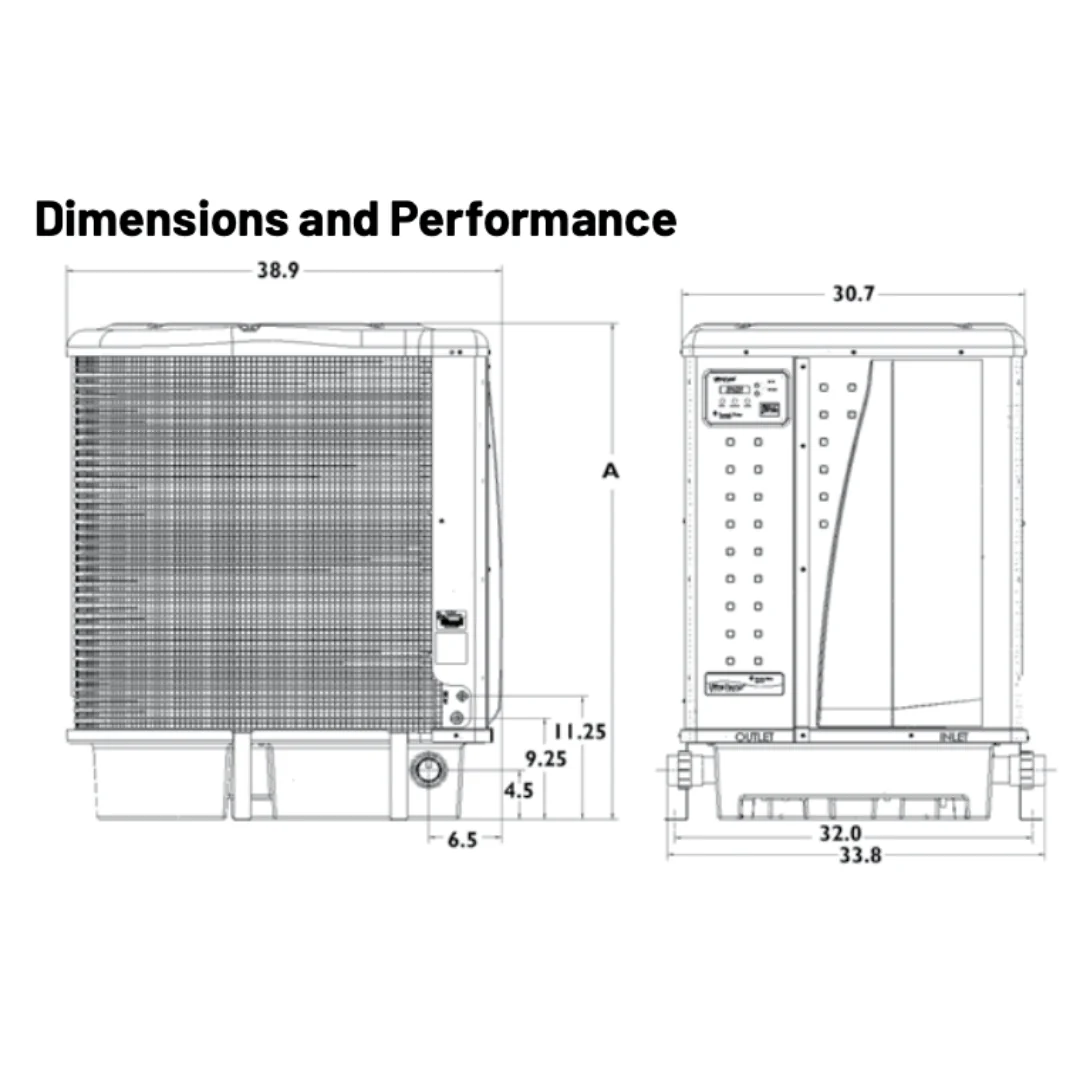

• Product Depth: 39 inch
• Product Height: 48.2 inch
• Product Weight: 287 pound
• Product Width: 31 inch
• Water Connection 1: 2 inch
• UPC Code: 788379867393
