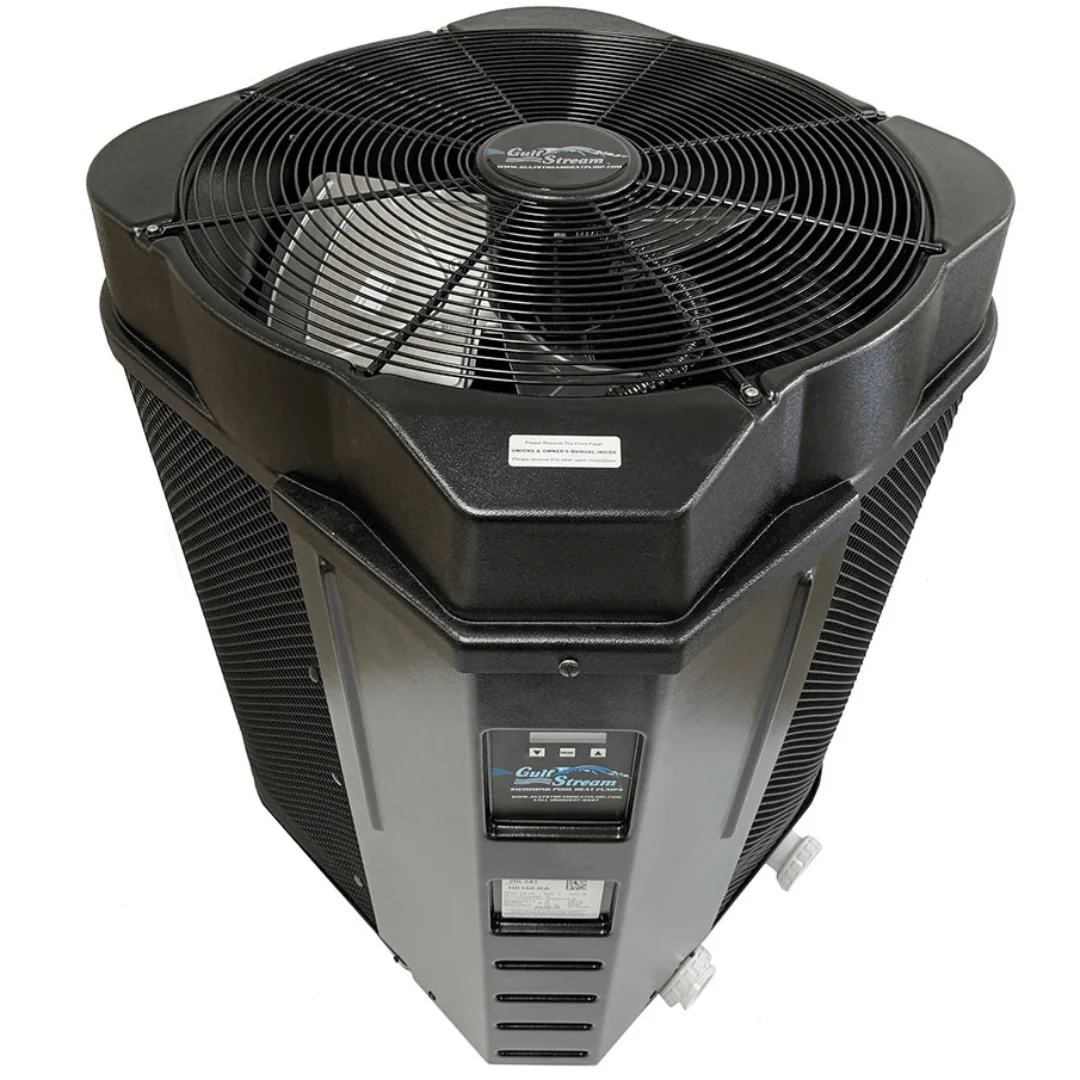

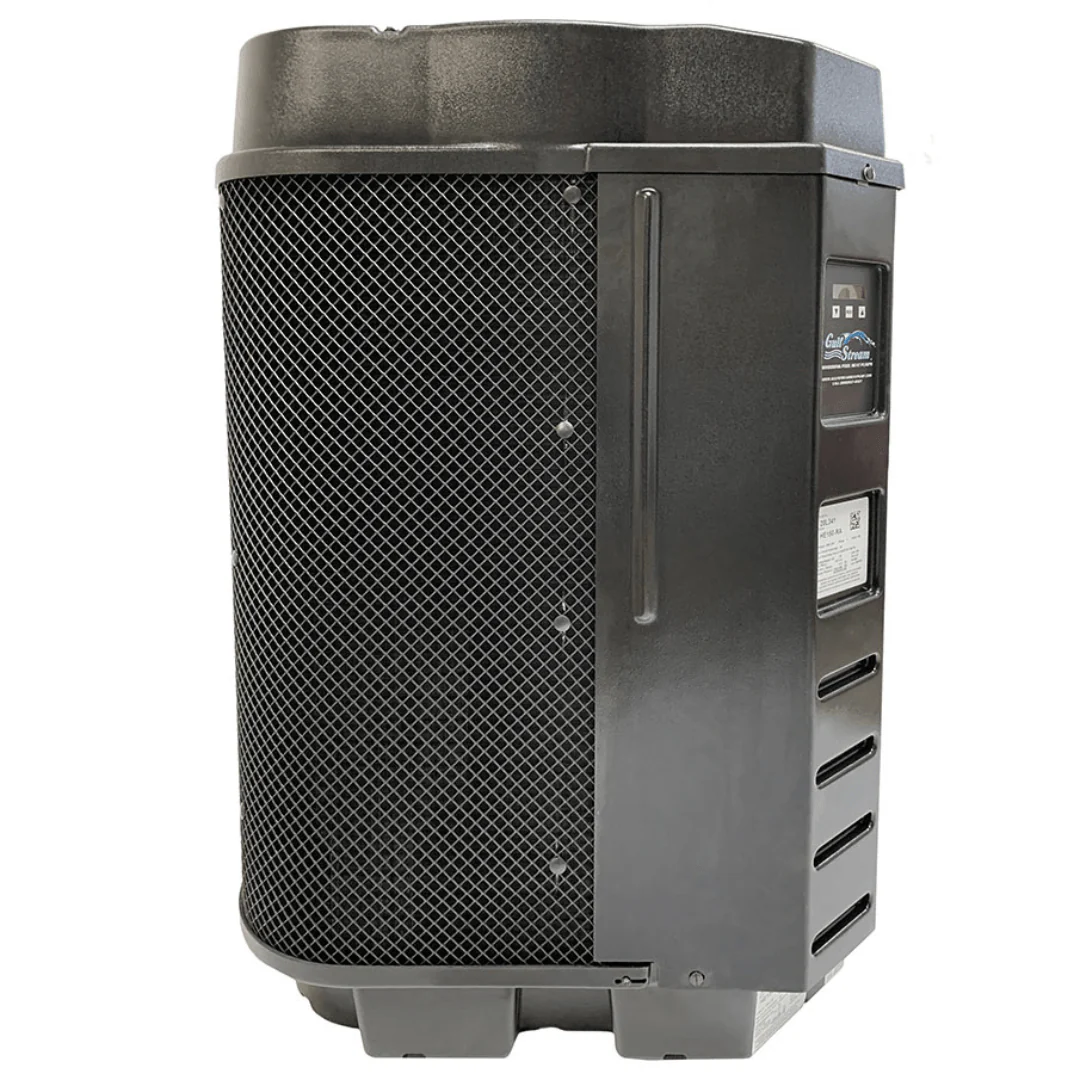

Gulfstream 145K BTU Heat Pump 220V 3PH HE150RB

The HE125RB 60Hz heat pump is a high-efficiency, ultra-quiet pool heat pump manufactured by Gulfstream. The model is 145,000 BTU and customized with the most comprehensive digital control board available. With an easy-to-operate interface, you can keep your pool heated consistently throughout the day with even heat technology.

Set it and forget it! The easy-to-use LCD screen includes a simple-to-manage 3-button control panel to evenly heat your pool to your personal preference. Compatible with all automation systems.

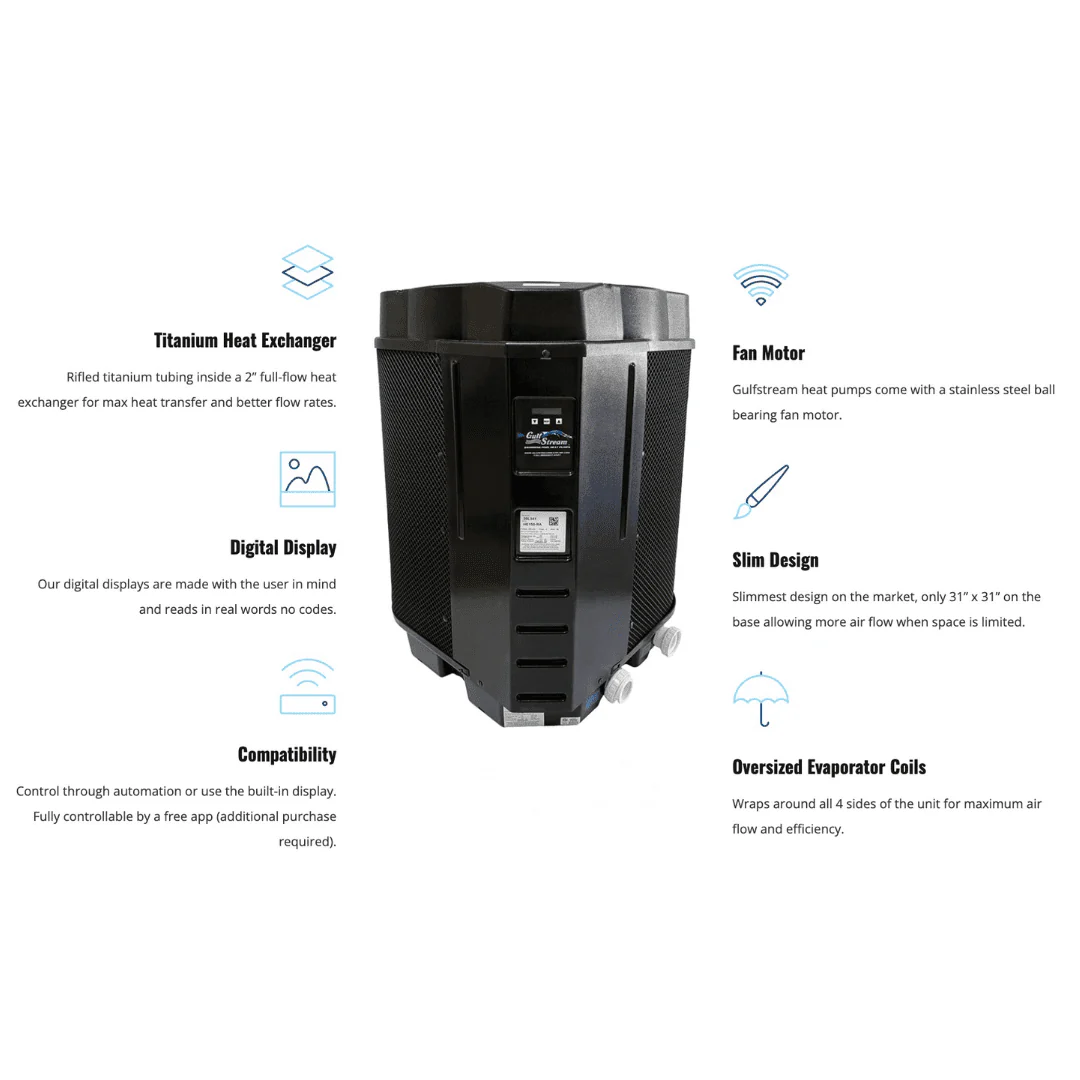

Features:

• Titanium Turbo Heat Exchanger
• Efficient Scroll Compressor
• Super-Quiet 8 Pole Emerson Fan Motor
• Higher efficiency in colder weather
• Quiet – as low as 56 decibels at full operation
• No-Rust ABS Cabinet

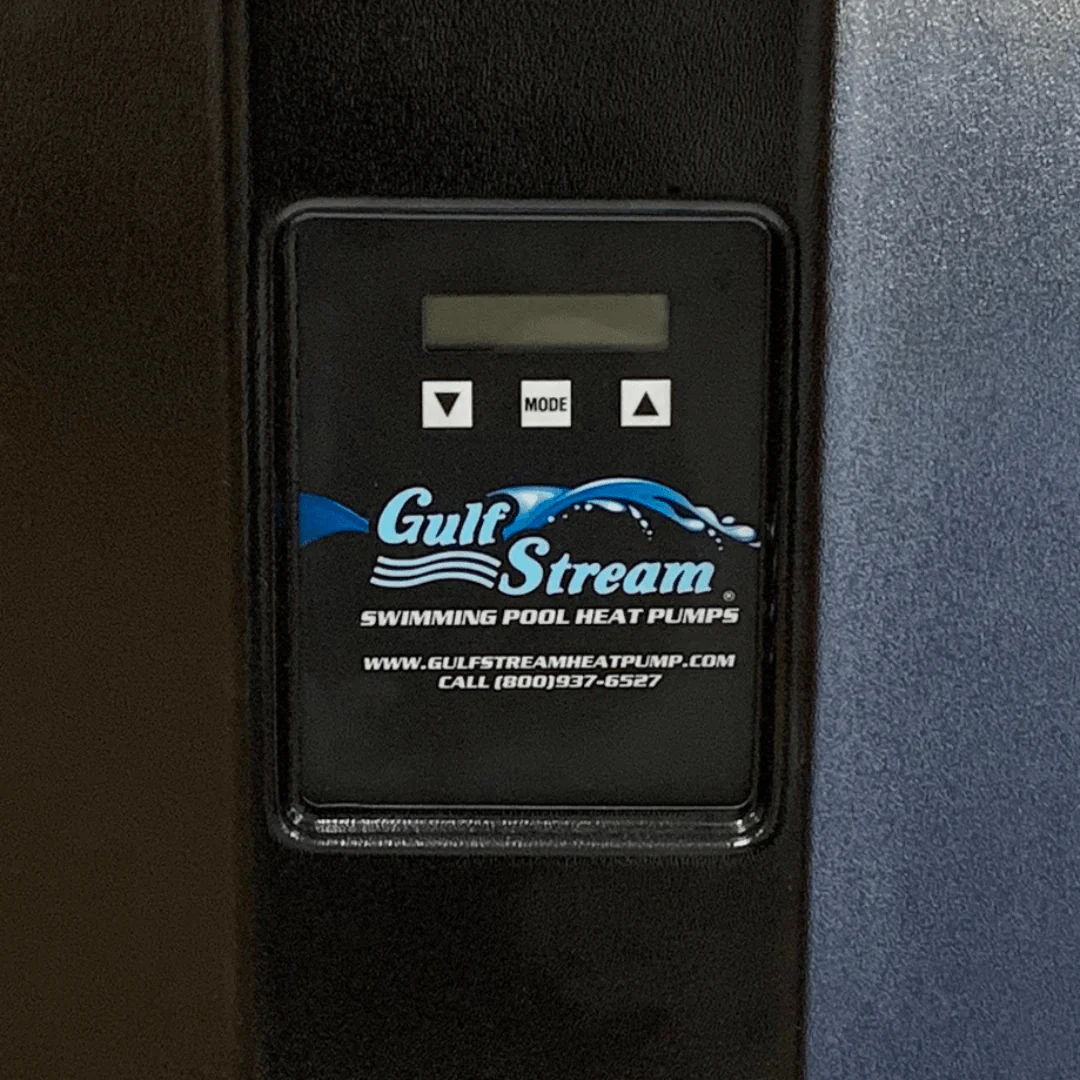

• Digital Diagnostic LCD Display reads in real words
• Super-Sized Evaporator Coil (20 square feet of wrap-around coil)
• Patented Refrigerant Metering System
• 2” Water flow - no need for an external bypass
• Plumbing is located out of the way
• Compatible with all remote control systems
• R-410A Refrigerant is environmentally friendly

Specifications:

• Phase: Three Phase
• Brands: Gulfstream
• BTU Output, Standard Rating Conditions 80/80/80: 125,000 BTU
• COP, Standard Rating Conditions 80/80/80: 6.3
• BTU Output 145,000 BTU
• COP 80/80/63: 5.9
• Refrigerant Type: R-410A
• Display Controls: Digital
• Thermostat: Digital
• Compressor: Scroll
• Heat Exchanger: 100% Titanium
• Hertz: 60 Hz
• Phase Type: Three Phase
• Voltage: 208/230 v
• Minimum Circuit Ampacity / Max Breaker: 37/50
• Optimal Water Flow GPM: 45 GPM
• Water Flow Min/Max GPM: 20/70 GPM
• Dimensions: 31 x 31 x 38

Optional Gulfstream Compass Wi-Fi Antenna Controller:

The Compass Wi-Fi Controller allows pool owners to remotely monitor and control their pool heat pump through an easy-to-use mobile app. The Compass antenna attaches to the pool heat pump and connects to the app via Wi-Fi.
