Gulfstream 145K BTU Heat Pump HE150RA

Gulfstream has designed the HE150 RA heat pump to efficiently heat your pool while minimizing costs. Its patented refrigerant metering system ensures high efficiency, particularly in colder conditions. Optimized for R-410A Refrigerant, it effectively regulates flow through the evaporator coil, resulting in maximum efficiency at low temperatures and reduced operating expenses. The HE150 RA is also available in both 3 Phase and Heat/Cool options.

• WARRANTY: 2 Year Labor & 10 Year Parts

Features:

• Titanium Turbo Heat Exchanger
• Efficient Scroll Compressor
• Super-Quiet 8 Pole Emerson Fan Motor
• Higher efficiency in colder weather
• Quiet – as low as 56 decibels at full operation
• No-Rust ABS Cabinet

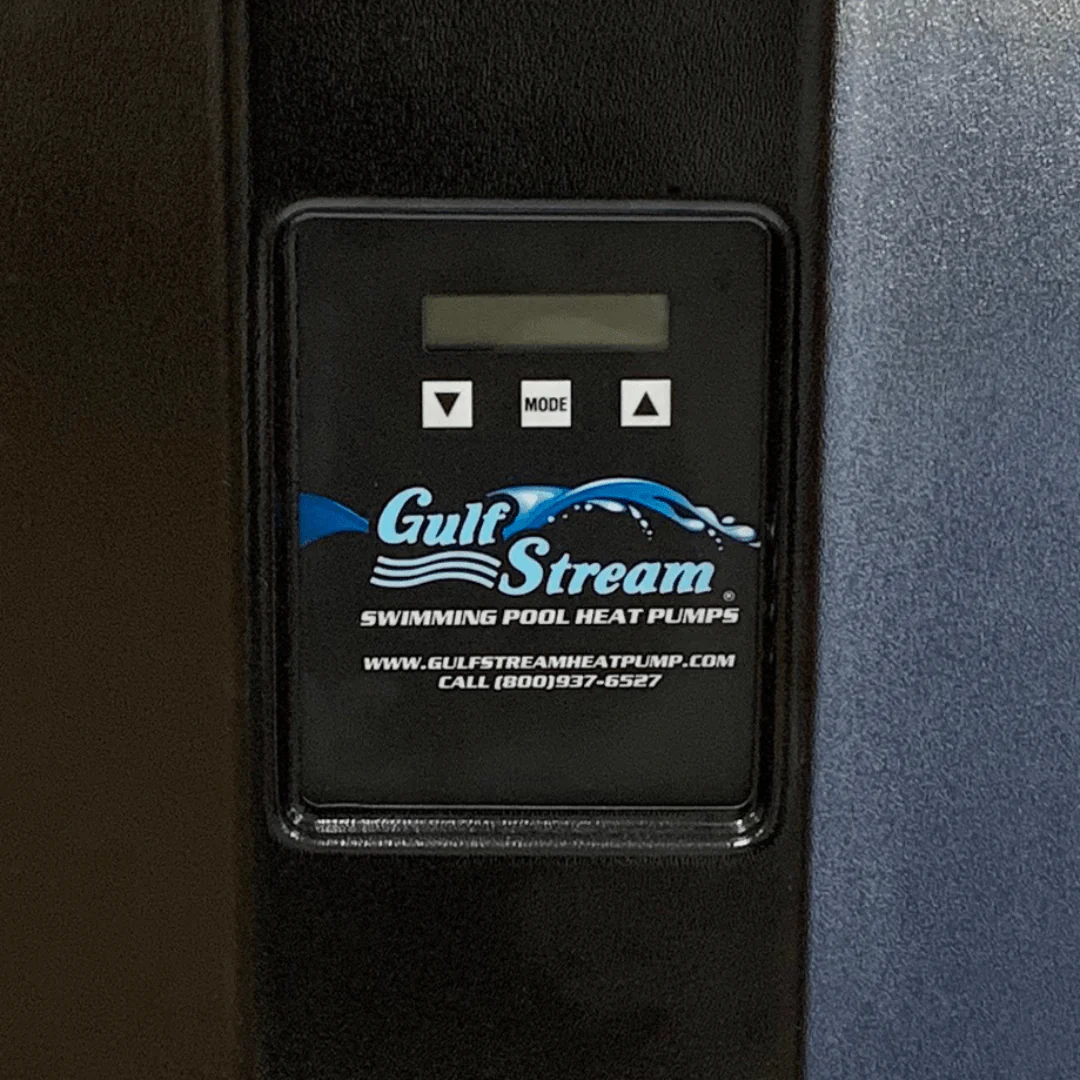

• Digital Diagnostic LCD Display reads in real words
• Super-Sized Evaporator Coil (20 square feet of wrap-around coil)
• Patented Refrigerant Metering System
• 2” Water flow - no need for an external bypass
• Plumbing is located out of the way
• Compatible with all remote control systems
• R-410A Refrigerant is environmentally friendly
• Includes standard 2-year labor warranty
• Part Numbers: HE150-R-A, HE150 RA, HE150RA, HE 150 RA
• Spec Sheet
• Product Brochure

Specifications:

• Brand: Gulfstream
• Model Number: HE150-R-A
• COP 80/80/80: 6.2/145,000
• Minimum Circuit Ampacity: 40 Main
• Time Delay Breaker: 50
• Average Running Amps: 28
• Voltage: 208-230
• Phase: 1
• Hertz: 60
• Plumbing Size: 2" Union
• Min/Max Flow Rate: 30-70
• Recommended Flow: 45
• Fan Motor: 1/3 HP
• Fan Load Amperage: 1.8
• Fan Speed RPM: 825
• Compressor Type: Scroll
• Compressor: RLA 30
• Compressor LRA: 145
• Refrigerant: R410A
• Unit Weight: 248 lbs
• Shipping Weight: 276lbs
• Unit Dimensions: 31"x31"x46"
• Foot Print: 31"x31"
• Shipping Dimensions: 32"x31"x50"
• AHRI Testing Certification: 3694125

As a rule of thumb, here are suggestions based on pool sizes under standard conditions:

• HE110 – (Up to 15,000 gallons or 450 square feet)
• HE125 – (Up to 23,000 gallons or 650 square feet)
• HE150 – (Up to 27,000 gallons or 800 square feet)

Optional Gulfstream Compass Wi-Fi Antenna Controller:

The Compass Wi-Fi Controller allows pool owners to remotely monitor and control their pool heat pump through an easy-to-use mobile app. The Compass antenna attaches to the pool heat pump and connects to the app via Wi-Fi.
