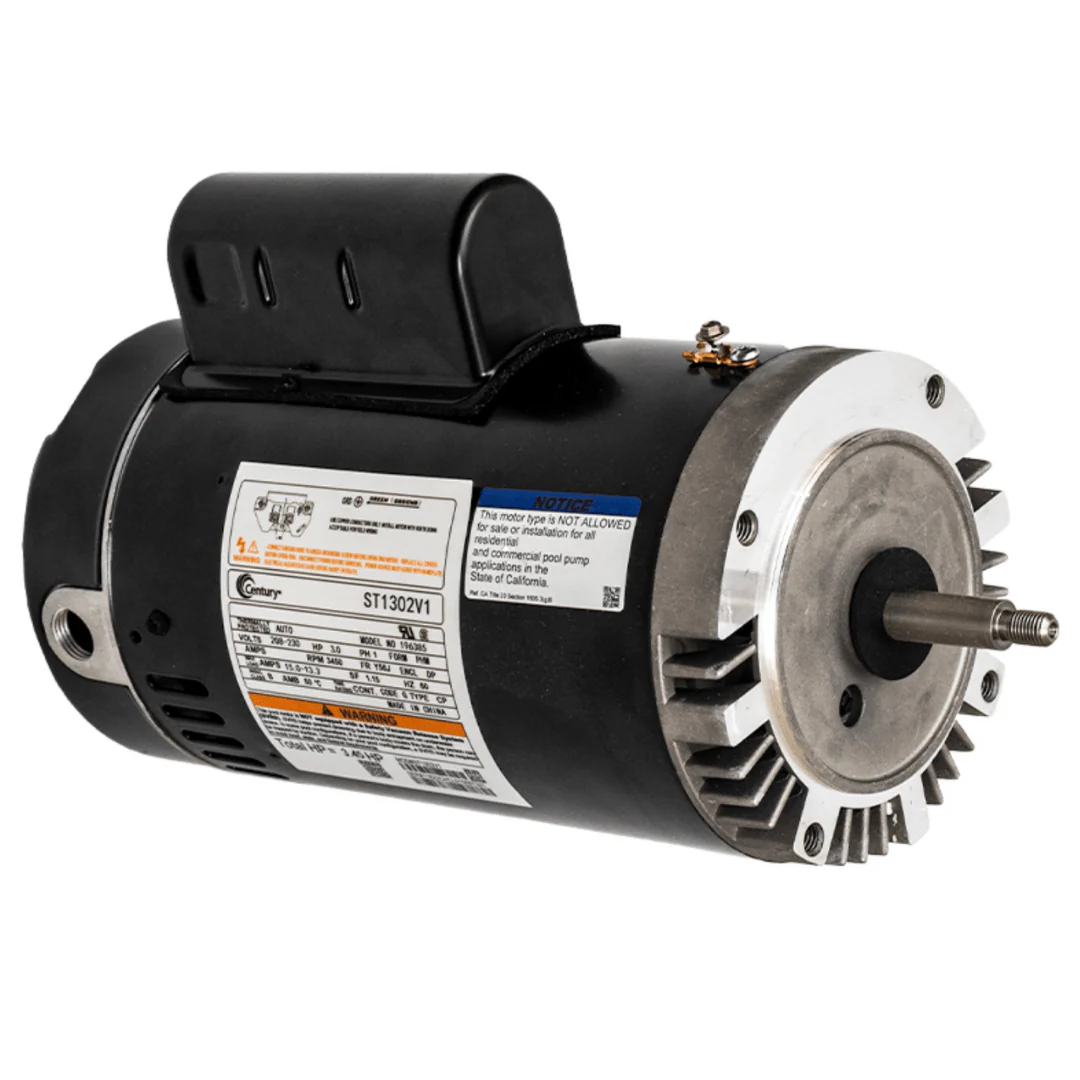

Century® ST1302V1 Two-Compartment Pool Filter Motor; 3 HP, 3450 RPM, 208-230 V, 56J, Threaded Shaft

• 3 HP THREAD SHAFT MOTOR
• 1.15 SF

Used On:

• Jacuzzi L Series Pump Parts
• Jacuzzi Magnum Pump Parts
• Jacuzzi P, PC, EP Pump Parts
• Jacuzzi PH and UPH Pump Parts
• Jacuzzi RC Pump Parts
• Jacuzzi Ring-Lok Pump Parts
• Jandy HHP/HHPU Pump Parts
• Jandy JHP/JHPU Pump Parts

Specifications:

Ambient Temperature	50 deg C
Bearing Type	Sealed Ball
Brand	Regal Beloit
Diameter	6-1/2 Inch
Duty Cycle	Continuous
Efficiency Group	High
Enclosure Design	Open Dripproof
Finish Color	Black Lacquer
Flange Material	Aluminum
Frame	56J
Frequency Rating	60 Hz
Full Load Amps	14.5-13.8 A
HP	3
Insulation Class	B
Item	Two-Compartment Pool Filter Motor
Motor Design	Capacitor Start/Run
Motor Shaft Rotation	CCWPE
Motor Thermal Protection	Auto
Mounting Type	C-Face
Numberof Speed	1-Speed
Overall Length	14.19 Inch
Phase	1-Phase
RPM	3450
Service Factor	1.15
Shaft Design	Threaded
Shaft Diameter	5/8 Inch
Shaft Length	2-9/16 Inch
Shaft Material	303 Stainless Steel
Standards Approvals	UL 1081 Approved, UL Recognized (E14663), CSA Certified (LR4642)
Sub Brand	Century®
Thrust Horsepower	3.45
Type	Full-Rated, CP
Voltage Rating	208-230 V
