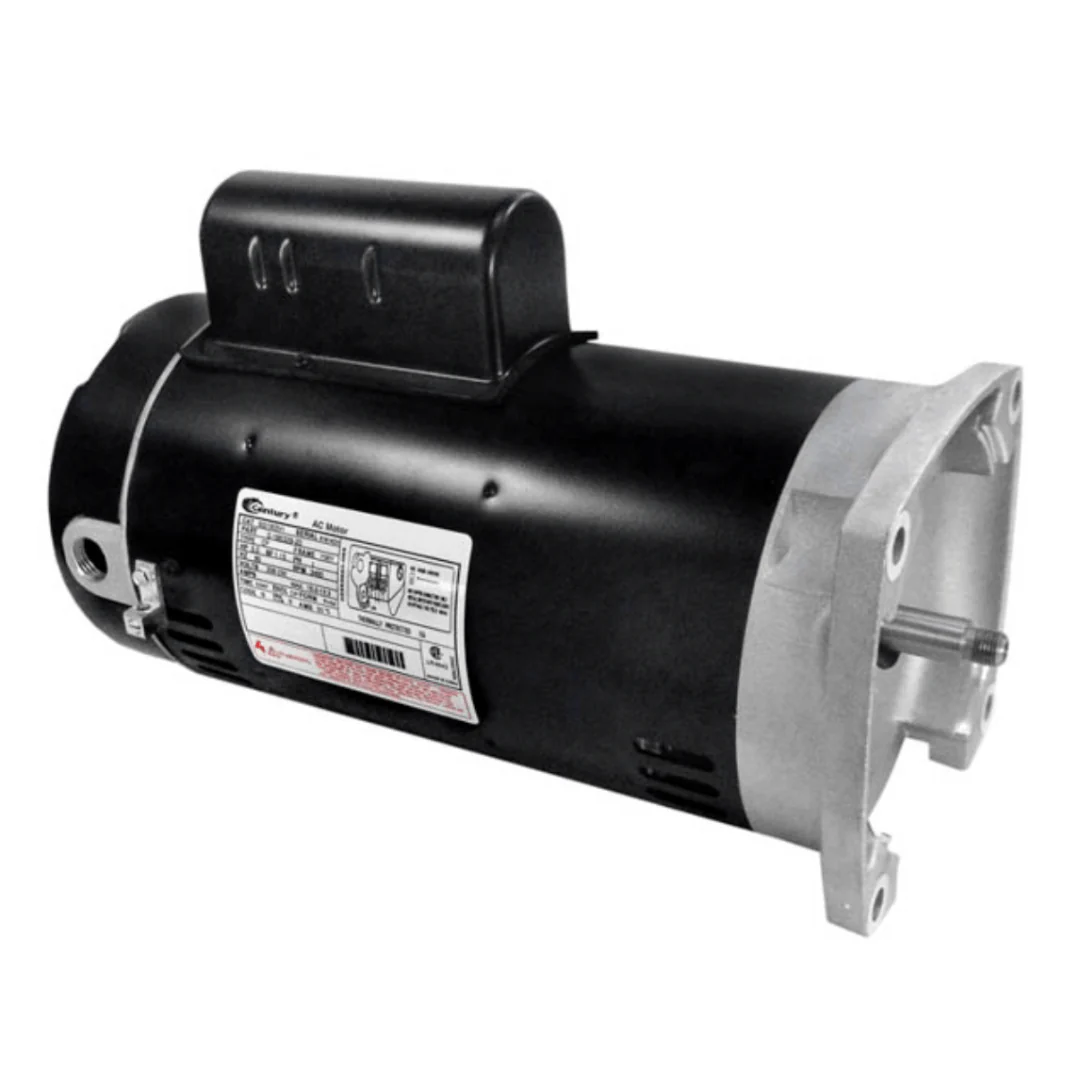

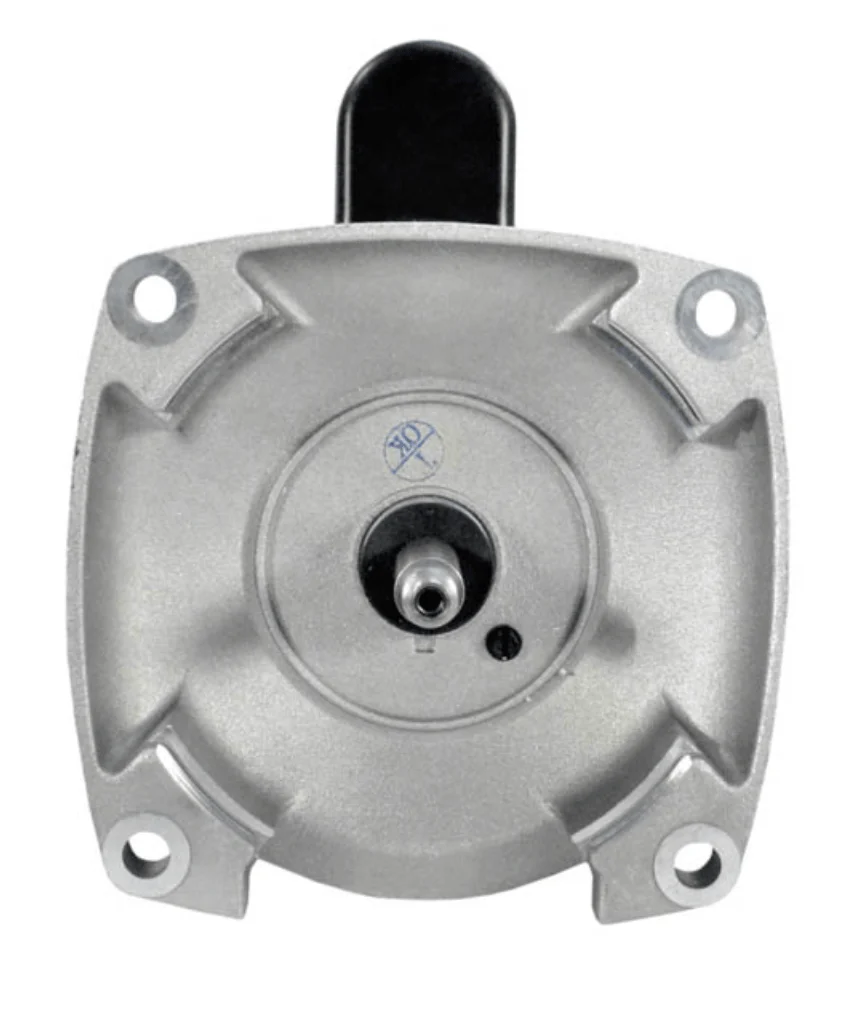

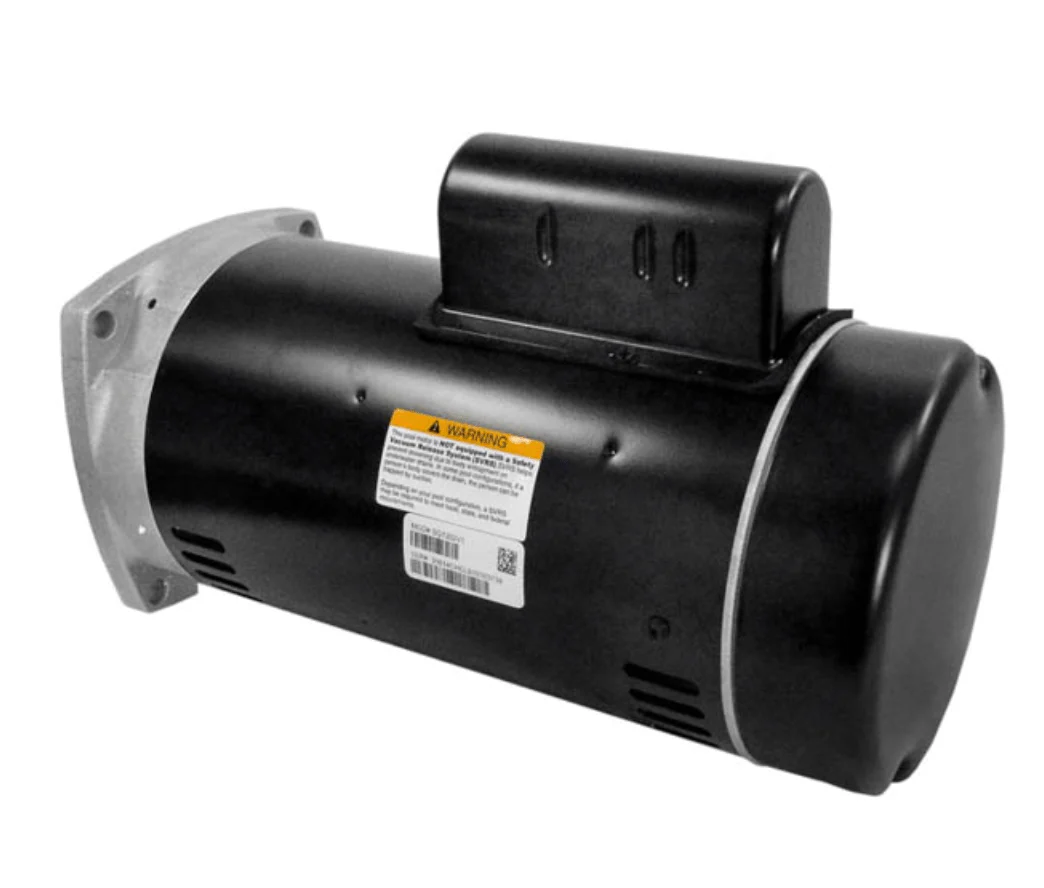

Century SQ1302V1 Pool Pump Motor, 3 HP, 1 Ph, 60 Hz, 208-230 V, 3600 RPM, Y56Y Frame, ODP
Century® SQ1302V1 Two-Compartment Pool Filter Motor; 3 HP, 3450 RPM, 208-230 V, 56Y, Threaded Shaft, Square Flange
- 3HP 230V FULL FLANGED MOTOR
- 1.15 SF RATED
Used On:
- Sta-Rite Max-E Glas and Dura-Glas Full-Rated Pump Parts
- Sta-Rite Max-E Glas II and Dura-Glas II Full-Rated Pump Parts
Specifications:
| Ambient Temperature | 50 deg C |
| Application | Many Sta-Rite®, Red Jacket, Pac Fab and American Products |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Black Lacquer |
| Flange Type | Square |
| Frame | 56Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 15.4 A |
| HP | 3 |
| Insulation Class | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start/Run |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 14.00 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.15 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Length | 3/4 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, CSA Certified |
| Sub Brand | Century® |
| Thrust Horsepower | 3.45 |
| Type | Full-Rated, CP |
| Voltage Rating | 208-230 V |
$599.99
Century SQ1302V1 Pool Pump Motor, 3 HP, 1 Ph, 60 Hz, 208-230 V, 3600 RPM, Y56Y Frame, ODP—
$599.99
