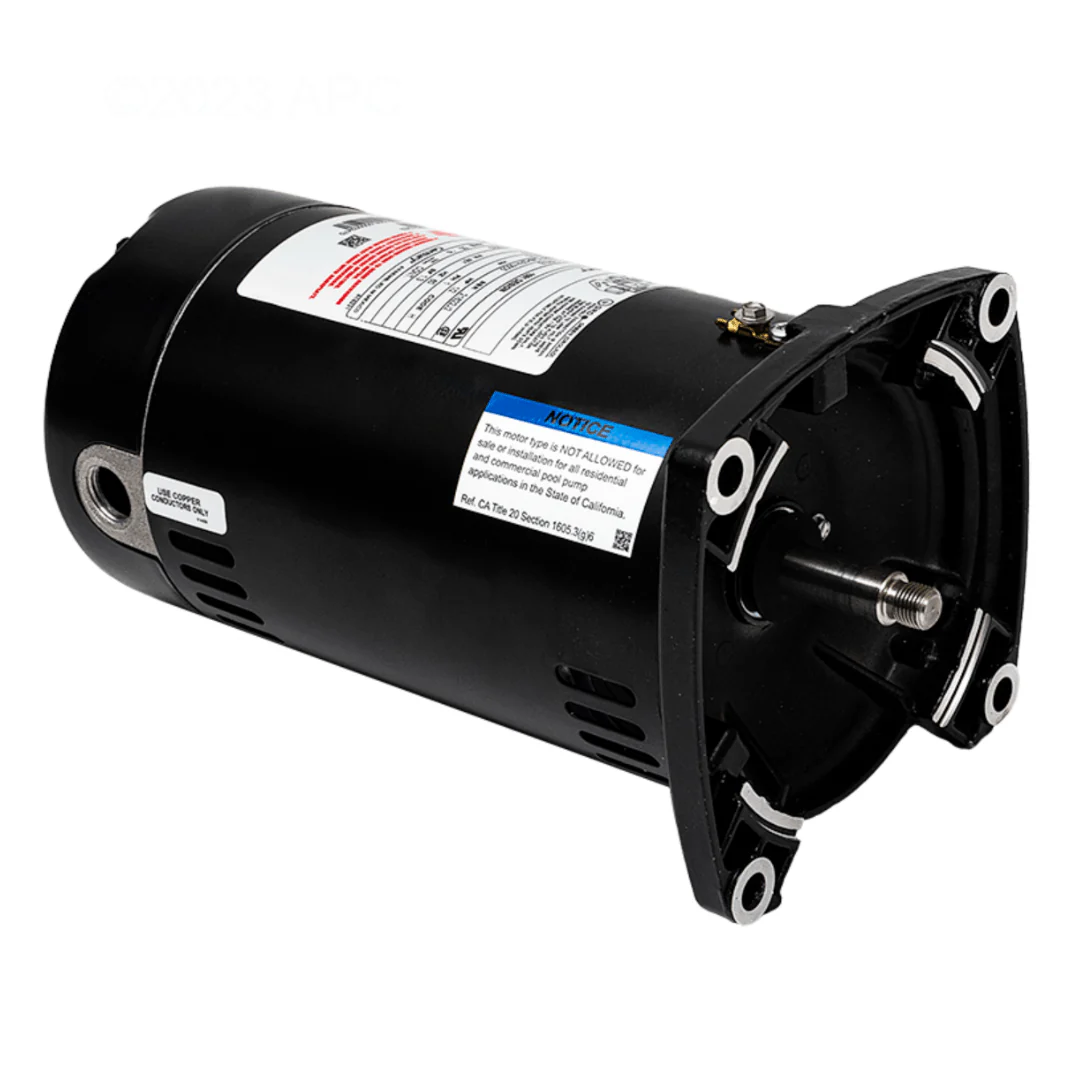

Century USQ1052 Pool Pump Motor, 1/2 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, 48Y Frame, ODP
Century USQ1052 Square Flange Up-Rated Two-Compartment Pool Filter Motor; 0.5 HP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft
- Low service factor
- 1/2-20 UNF-2A RH threaded shaft
Specifications:
| Ambient Temperature | 50 deg C |
| Application | Many Sta-Rite®, Red Jacket, Pac Fab and American Products |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | Standard |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |

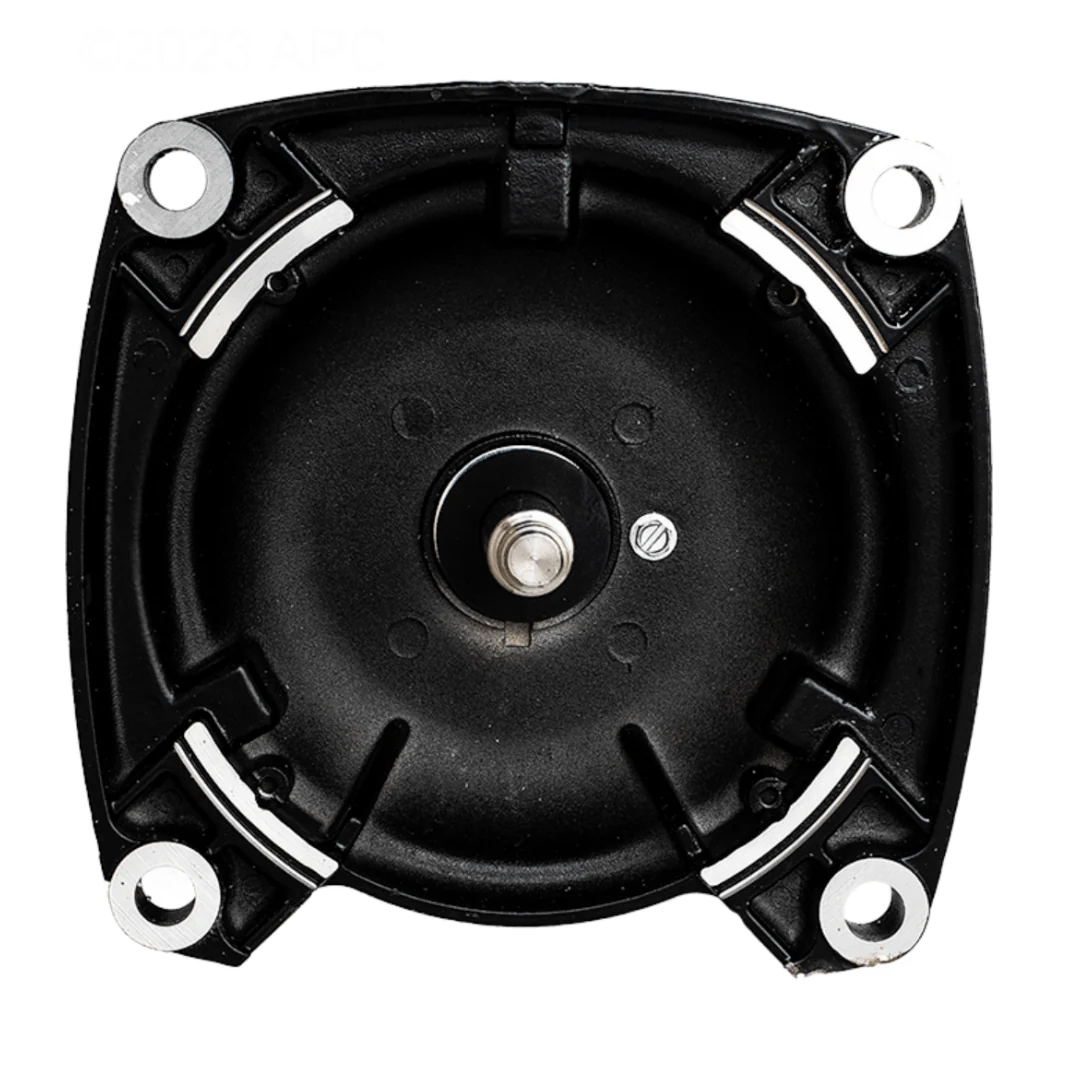

| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 9.9/5.0 A |
| HP | 0.5 |
| InsulationC lass | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 11.13 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.30 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 0.65 |
| Type | Up-Rated, UAC |
| Voltage Rating | 115/230 V |
