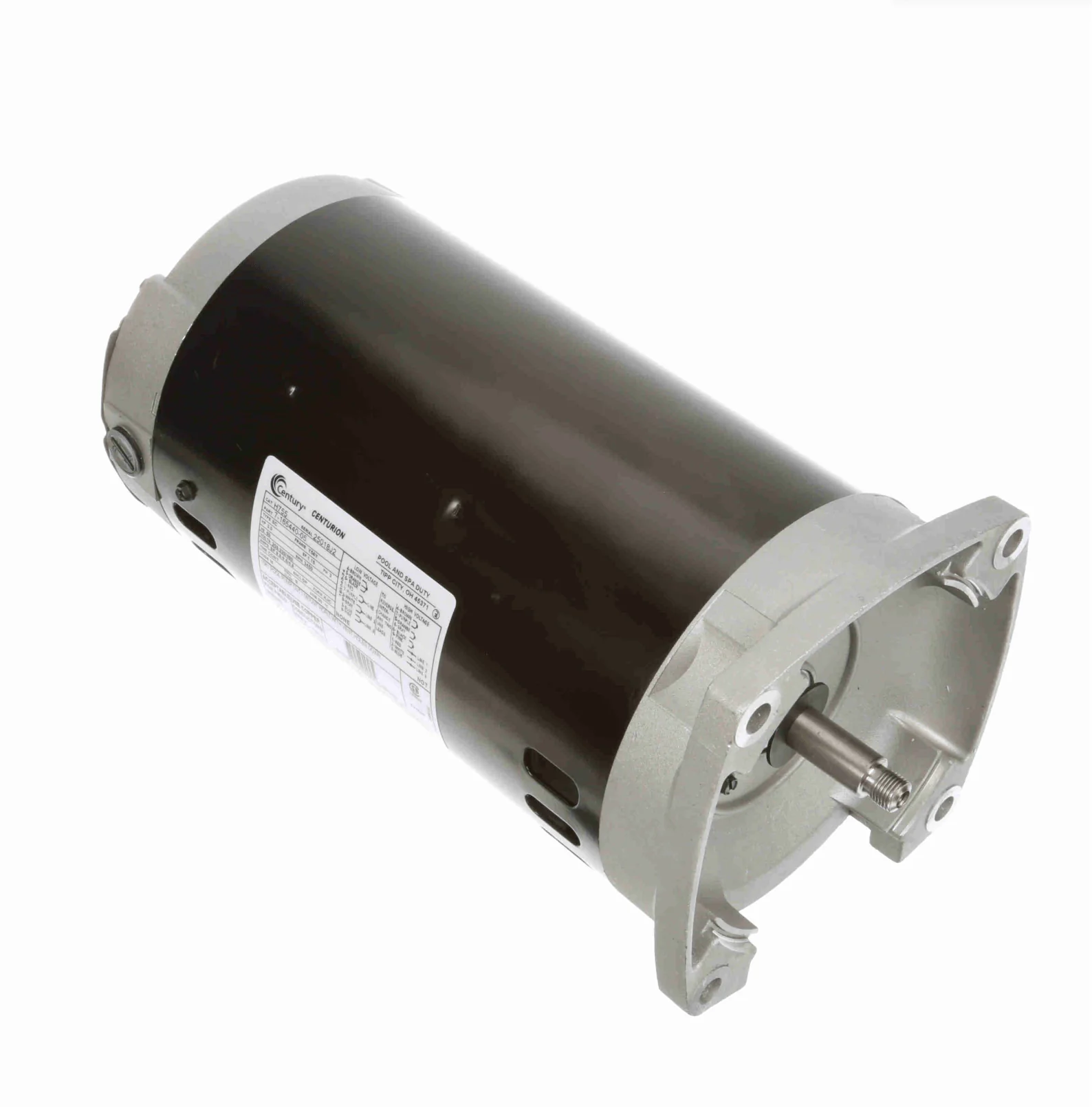

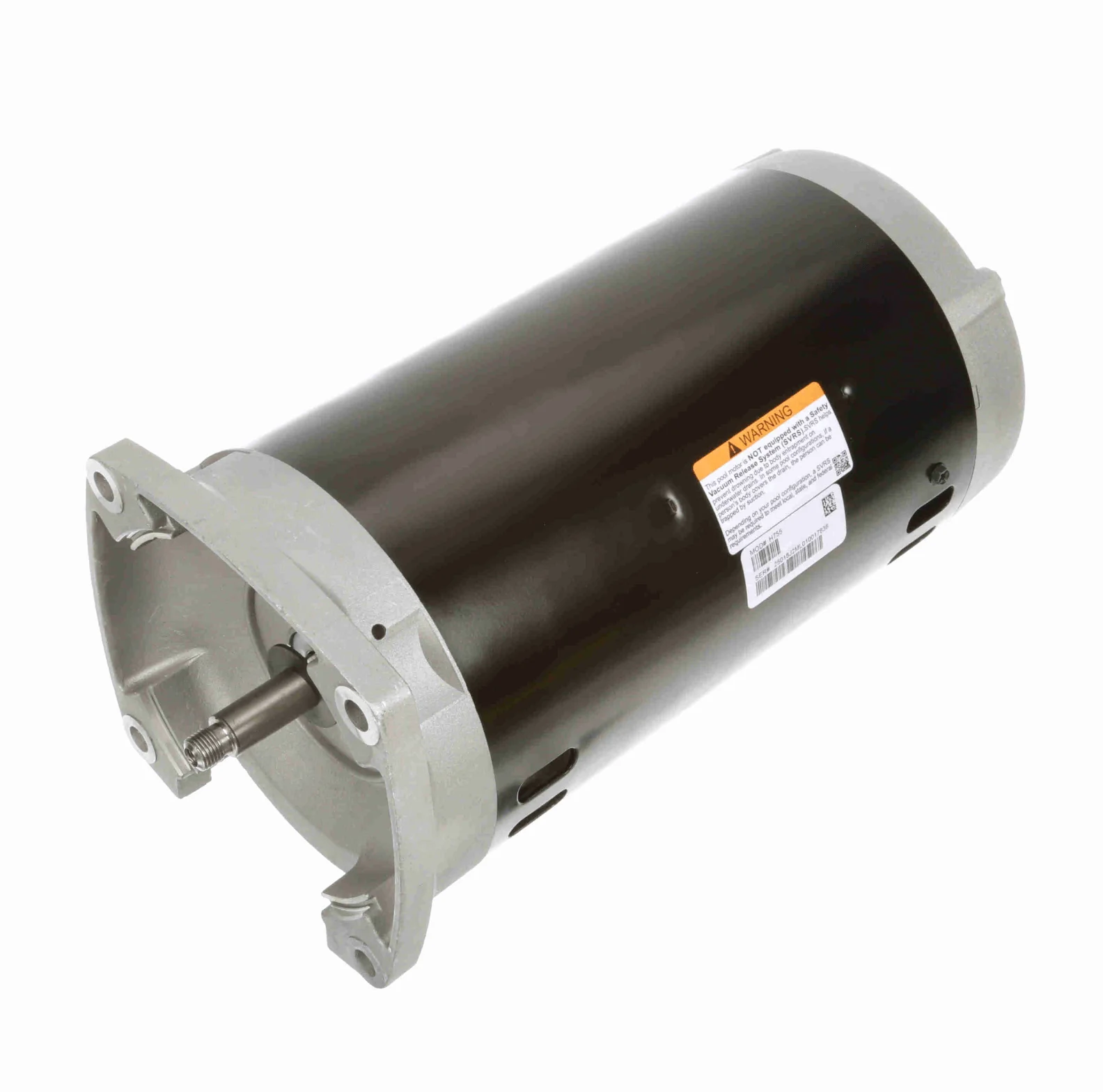

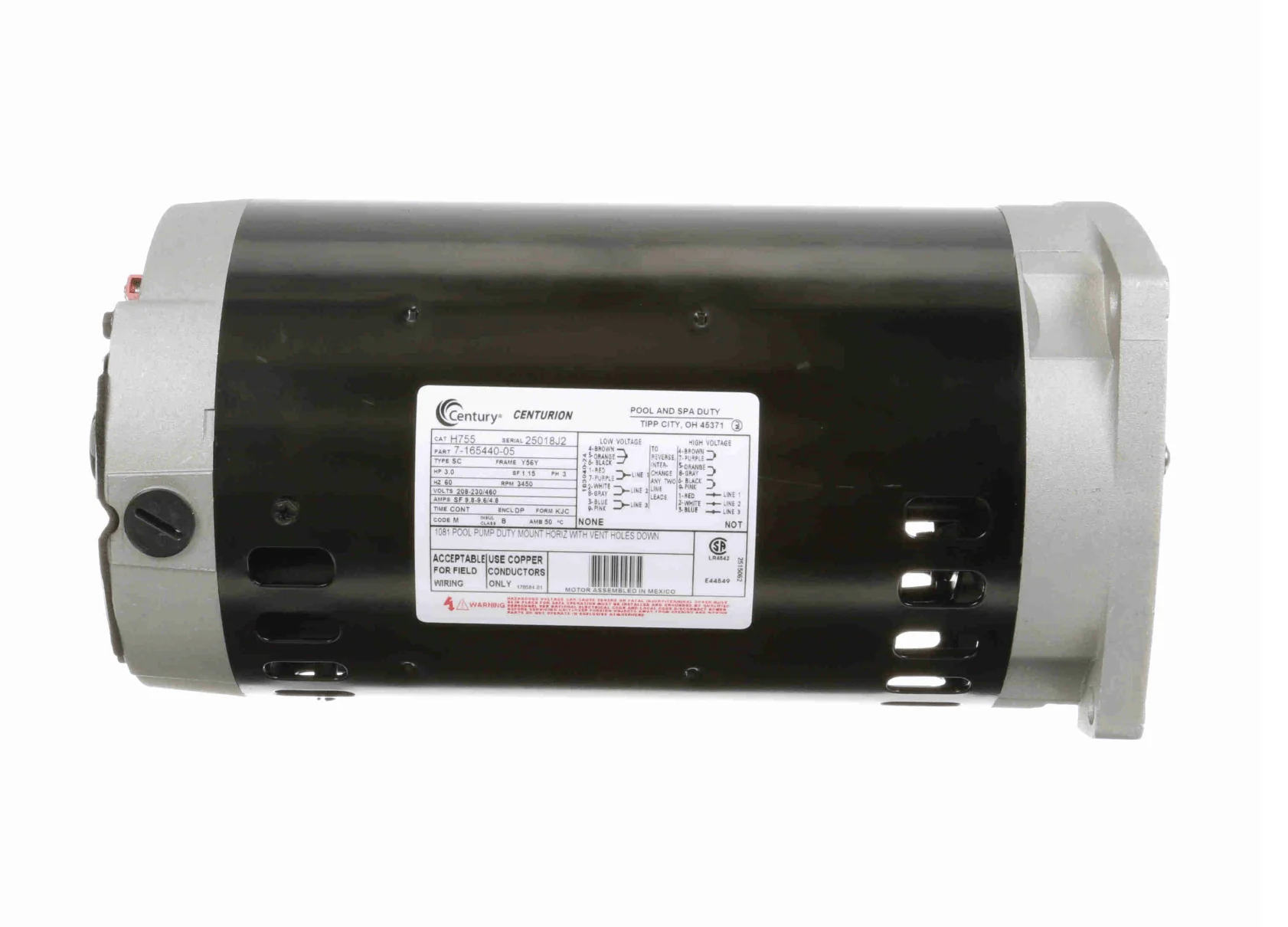

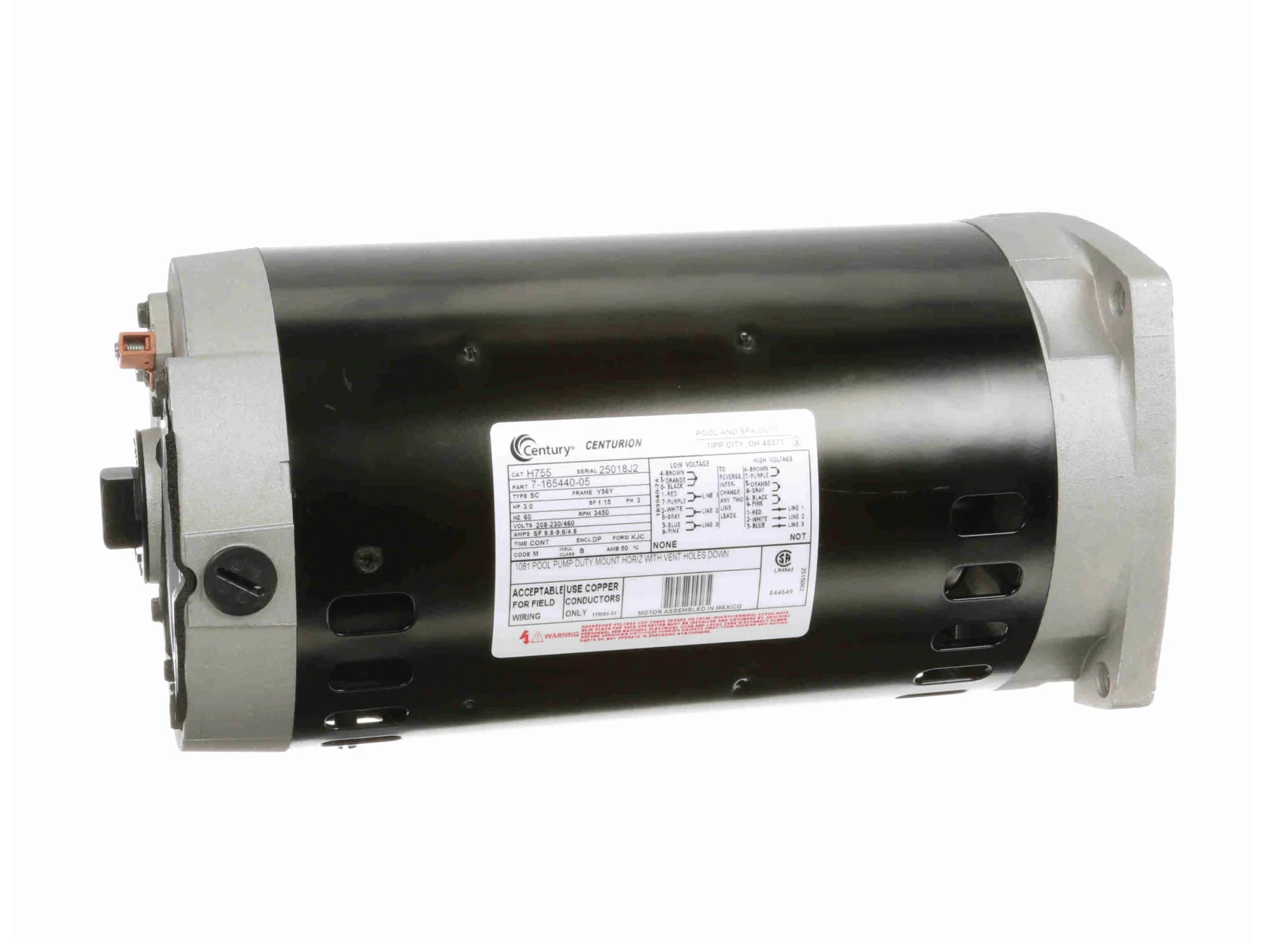

Century H755 Pool Pump Motor, 3.0 HP, 3 Ph, 60 Hz, 208-230/460V, 3600 RPM, Y56Y Frame, DP
Century H755 Pool Pump Motor, 3.0 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, Y56Y Frame, DP
- Sealed Ball Bearings
- 303 Stainless Steel Shaft
- Threaded Shaft
- 50°C Ambient
- 3 Phase
- Square Flange
Specifications:
- Phase: 3
- Output HP: 3.0 HP
- Output KW: 2.2 kW
- Voltage: 208-230/460 V
- Speed: 3450 rpm
- Service Factor: 1.15
- Frame: Y56Y
- Enclosure: Drip Proof
- Thermal Protection: No Protection
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current SF: 9.8-9.6/4.8 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 1
$224.00
Original: $639.99
-65%Century H755 Pool Pump Motor, 3.0 HP, 3 Ph, 60 Hz, 208-230/460V, 3600 RPM, Y56Y Frame, DP—
$639.99
$224.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Century H755 Pool Pump Motor, 3.0 HP, 3 Ph, 60 Hz, 208-230/460 V, 3600 RPM, Y56Y Frame, DP
- Sealed Ball Bearings
- 303 Stainless Steel Shaft
- Threaded Shaft
- 50°C Ambient
- 3 Phase
- Square Flange
Specifications:
- Phase: 3
- Output HP: 3.0 HP
- Output KW: 2.2 kW
- Voltage: 208-230/460 V
- Speed: 3450 rpm
- Service Factor: 1.15
- Frame: Y56Y
- Enclosure: Drip Proof
- Thermal Protection: No Protection
- Ambient Temperature: 50 °C
- Frequency: 60 Hz
- Current SF: 9.8-9.6/4.8 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 1
