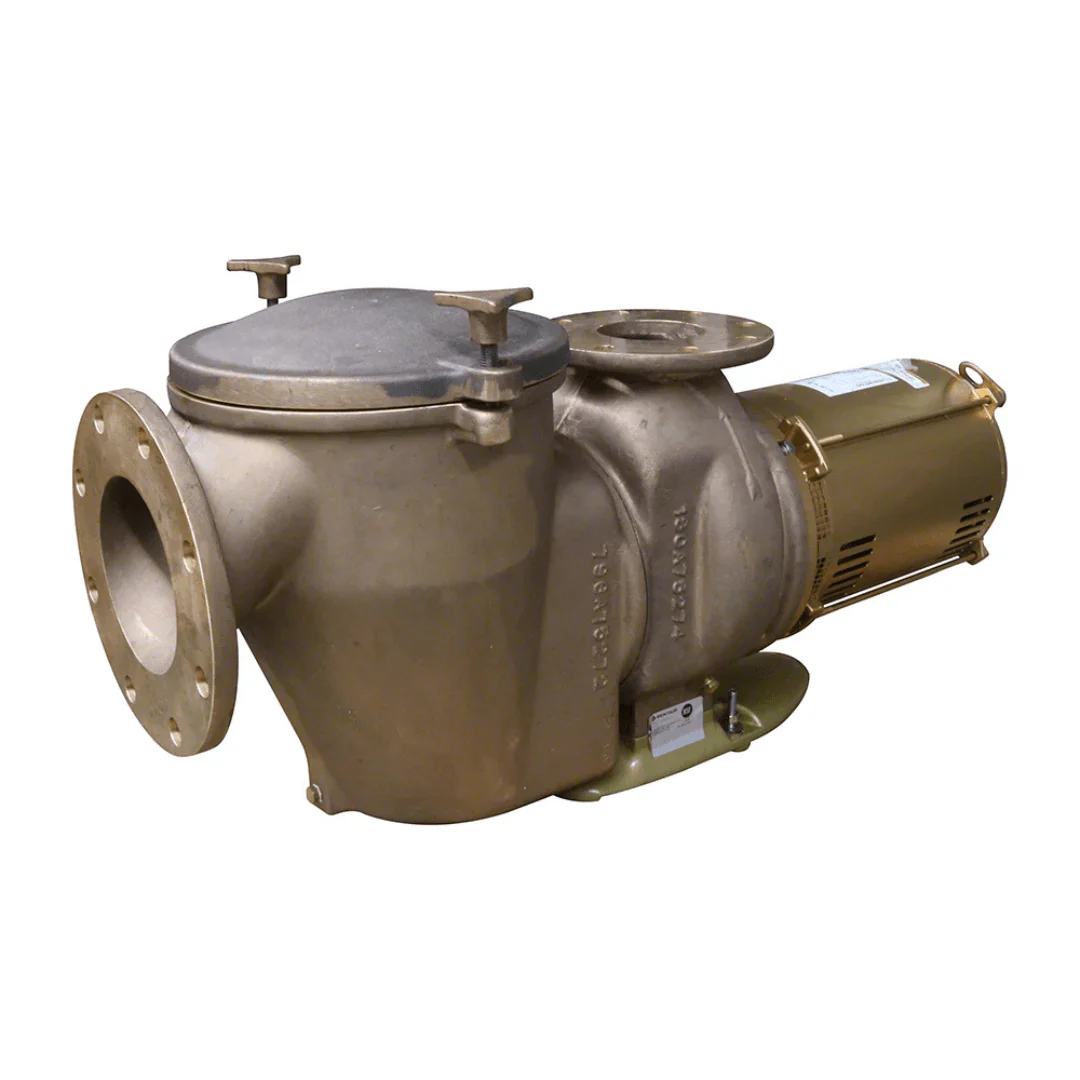

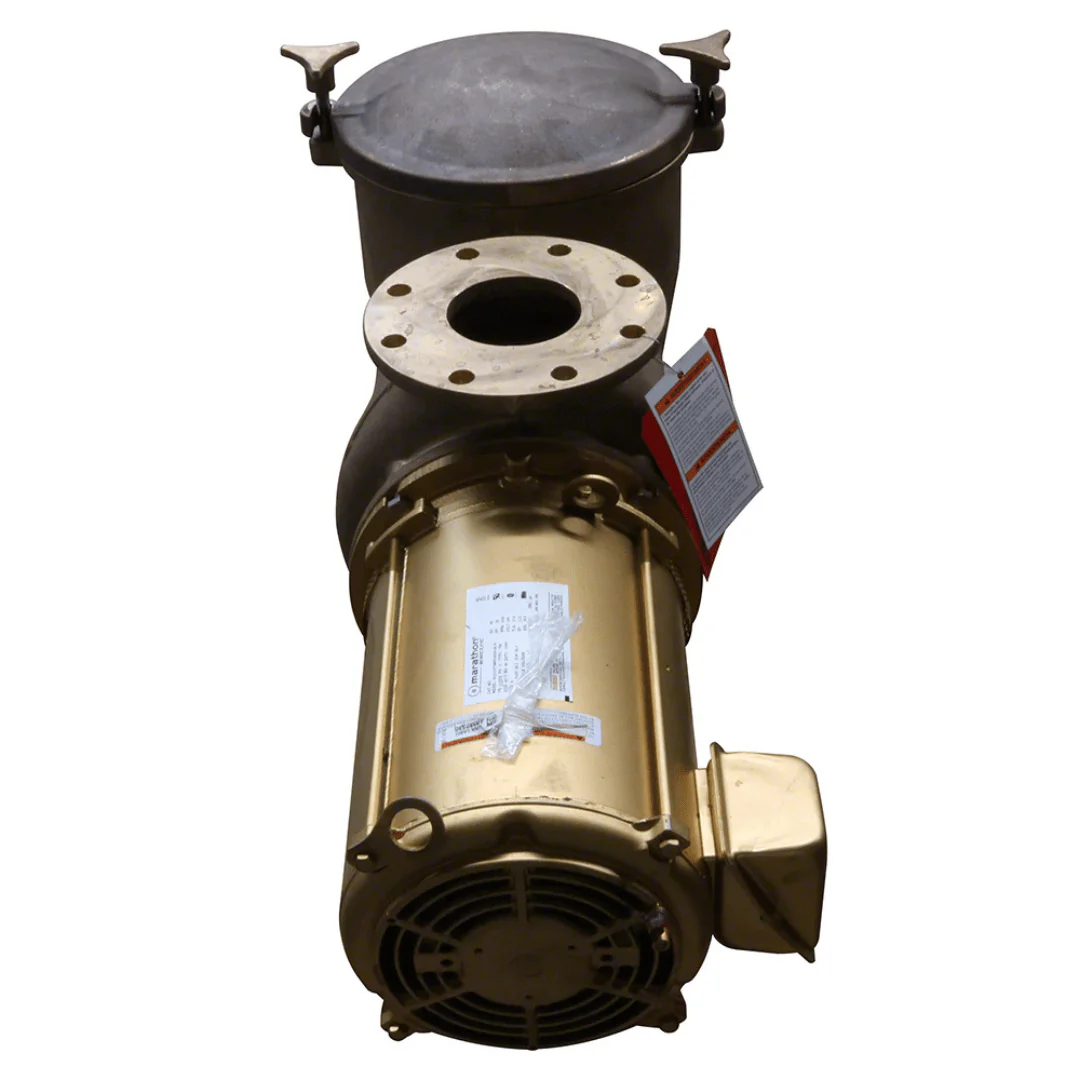

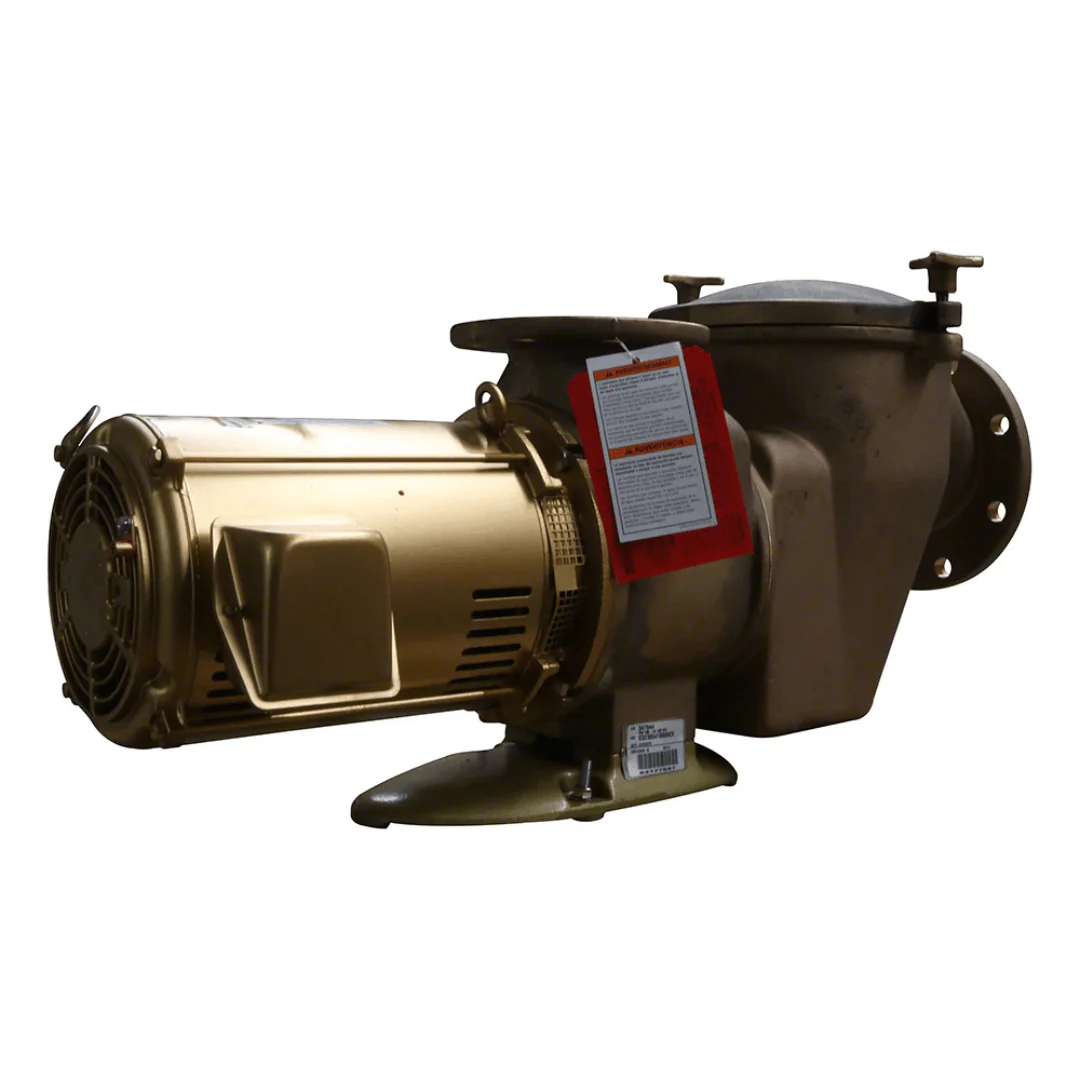

Pentair 347945 C-Series CHK-100 10 HP 200-208V 3-Phase High Head Pump
Pentair 347945 C Series 3 Phase Standard Efficiency Commercial Pump with Hair and Lint Strainer; 10 HP, 200-208V, 28.7 Amp

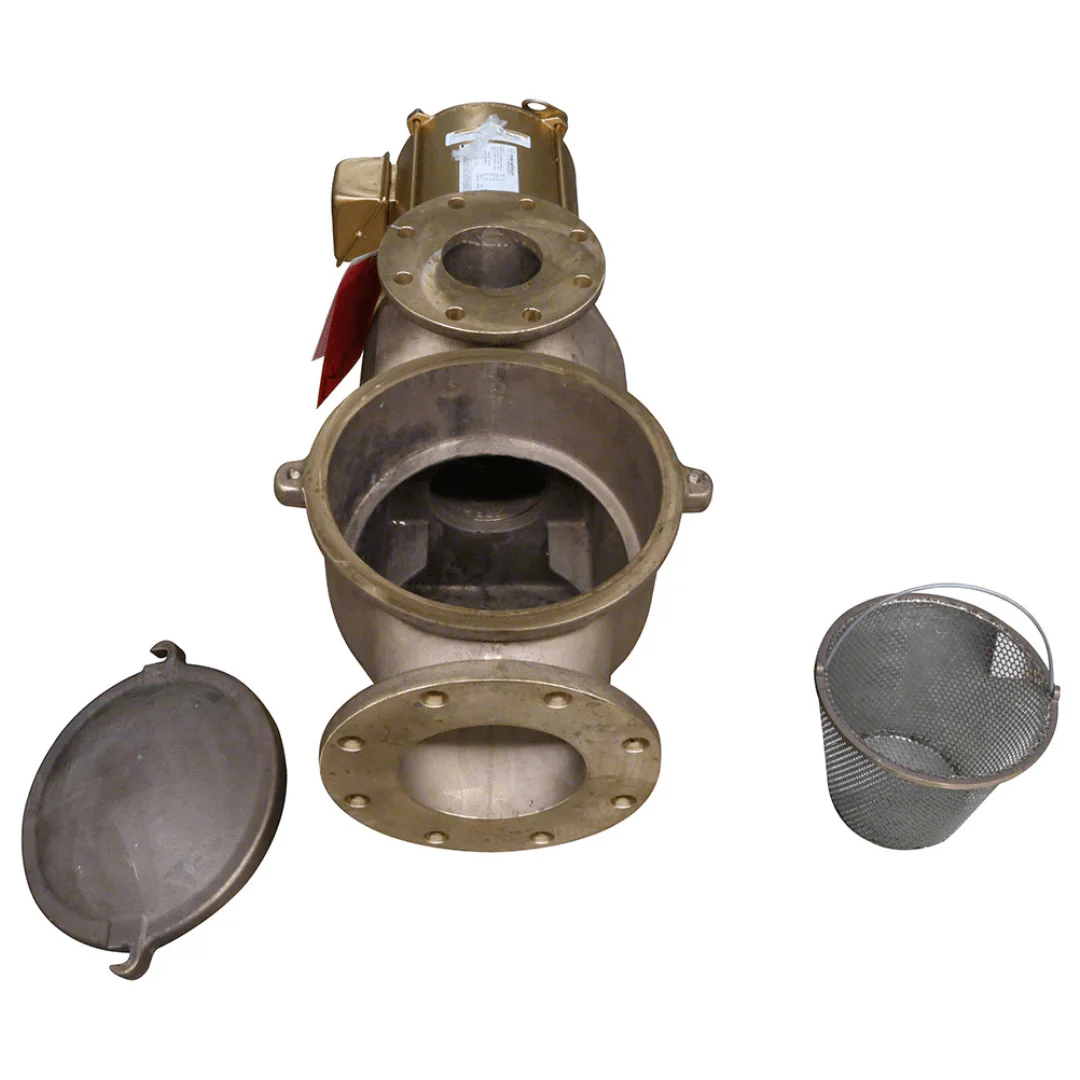

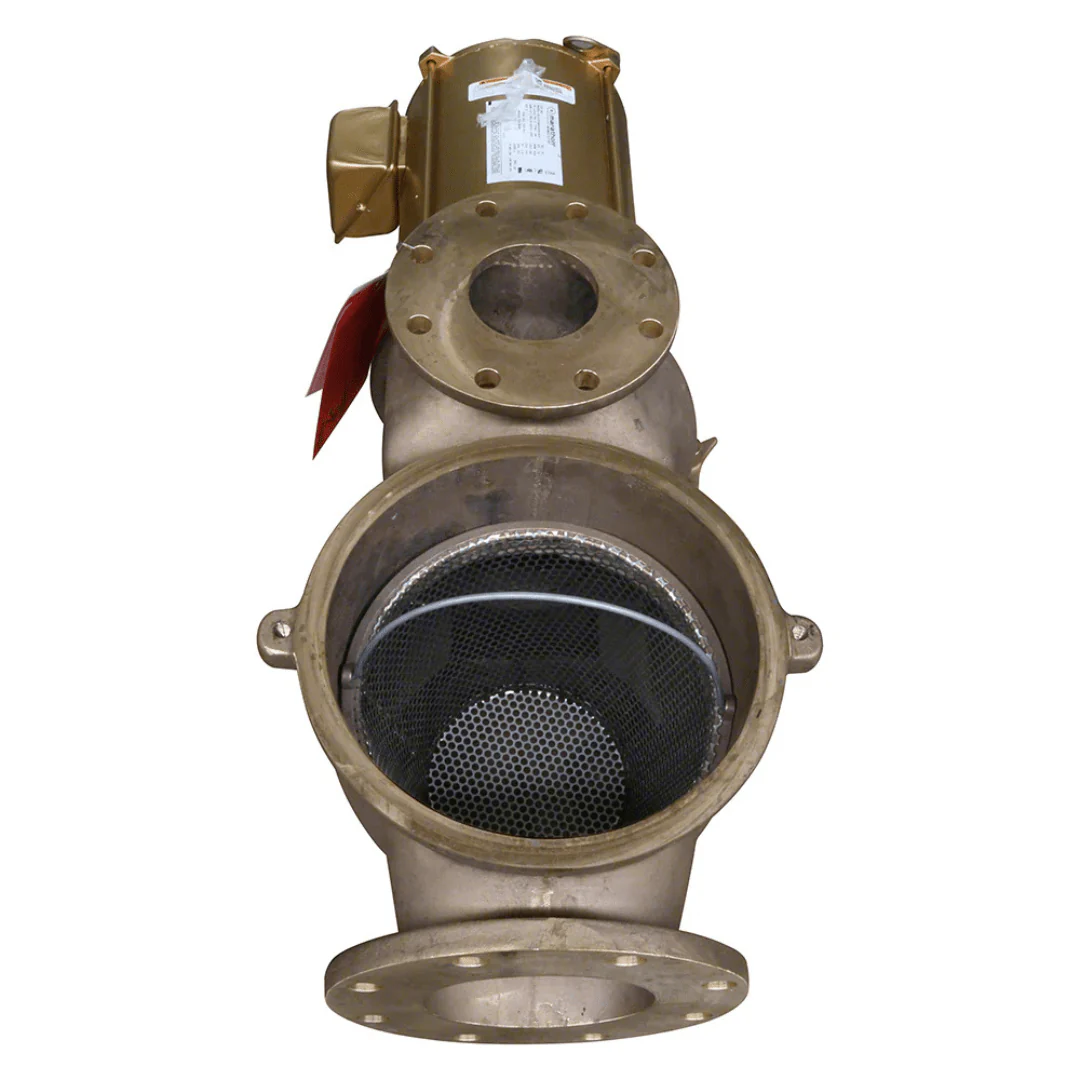

The Pentair C Series Pump is a heavy-duty pump specifically designed for large pools, fountains and water attractions that demand high flow rates and continuous operation. With bronze construction and a stainless steel strainer basket, the C Series pump is perfect for the toughest indoor or outdoor projects. This pump’s lasting efficiency, quiet operation, easy maintenance and durability has set the standard for medium- and high-head performance in the pool industry for many years.
- Brochure
- Install Guide
- Tech Info
Specifications:
- Brand: Pentair
- Amps High Speed: 25.3
- Shipping Dimensions: 20 x 45 x 22 inch
- Amps Low Speed: 12.7
- Commercial, Residential, or Professional: Commercial
- Weight: 356 pounds
- Flow Rate Max: 740 gal/min
- Flow Rate Min: 0 gal/min
- Frequency Rating (Hz): 60
- Horsepower: 10 horsepower
- Material: Bronze
- Motor Speed: 1-Speed
- Phase: Three
- Service Factor: 1.15
- Service Factor HP: 11.5
- Thrust HP: 10
- Voltage: 208V
- Impeller Material: Bronze
- Max Liquid Temperature: 104 degrees Fahrenheit
- UPC Code: 788379657444
