Pentair 340035 EQK-1500 15 HP Pump 3-Phase 208-230/460V
Pentair 340035 EQ Series EQK-1500 15 HP Pump 3-Phase 208-230/460V

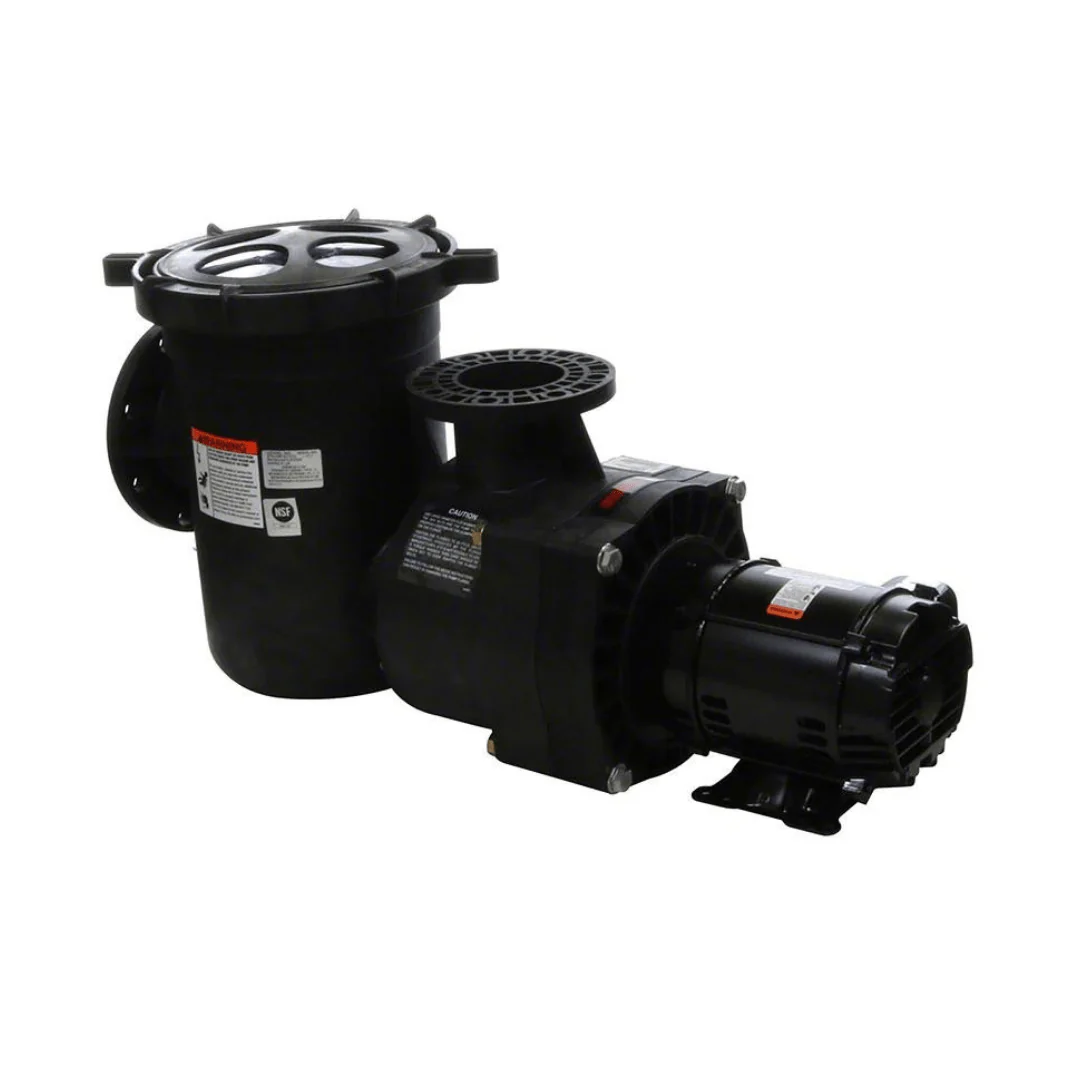

The Pentair EQ Series EQK-1500 Commercial Plastic Pump With Strainer is 15 HP, 3-Phase, 208-230/460 Volts, self-priming, 6 x 4 inch port size, and features extraordinary electrical and hydraulic efficiency, as well as a NEMA premium grade ODP efficiency motor. The EQ Series is a high-performance pump built specifically for commercial and large residential pools. It is constructed of commercial-grade, non-corrosive plastic parts for durability and long life, and is the only pump designed like that.
The EQ Series can be used a a drop-in replacement for the C Series or CSP pumps and are also compatible with the Acu Drive XS Variable Frequency Drives. It has a large hair and lint strainer with a Cam and Ramp see-through lid. The EQ Series will pay premiums with low electrical costs, less wear and tear on critical moving parts, and provide you with a quiet operation.
- EQK-1500 15 HP 3-Phase 208-230/460 Volts.
- ODP (Open Drip Proof) Motor.
- Includes Strainer Pot.
- 6 inch suction and 4 inch discharge.
- NEMA Rated Premium Grade Efficiency Motors.
- Commercial grade, non-corrosive plastic parts.
- Close coupled for quiet, stable flow operation.
- Cam and Ramp locking ring design with see-thru lid.
- Lightweight for easy, one-man installation.
- Easy cleaning and serviceability.
- NSF Standard 50 for Self-Priming Centrifugal Pumps.
Documents
- Install Guide
- Tech Info
Specifications:
- Brand: Pentair
- Amps High Speed: 40
- Amps Low Speed: 17.8
- Application: Pool
- Commercial, Residential, or Professional: Commercial
- Weight: 235 pounds
- Green or Energy-Efficient Product: True
- Horsepower: 15 horsepower
- Material: Plastic
- Phase: Three
- Service Factor: 1.15
- Service Factor HP: 17.25
- Voltage: 208V, 230V
- UPC Code: 7883796904413
