Pentair 011658 C-Series CHK-75 7.5 HP 220/440V 3-Phase High Head Pump
Pentair 011658 C Series 3-Phase Standard Efficiency High Head Commercial Bronze Pump with Hair and Lint Strainer 7.5 HP 220 per 440V 18.4 per 9.2 Amp

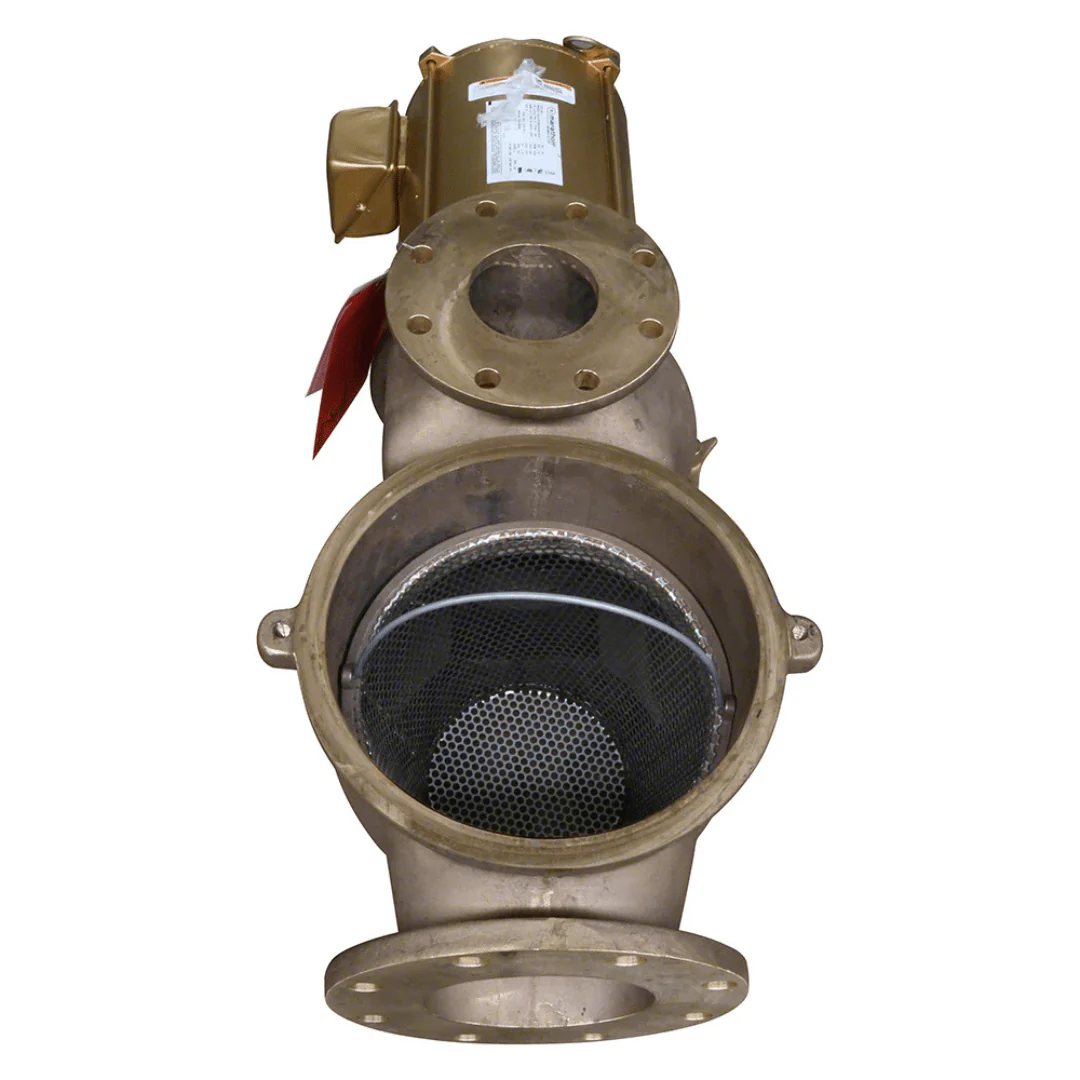

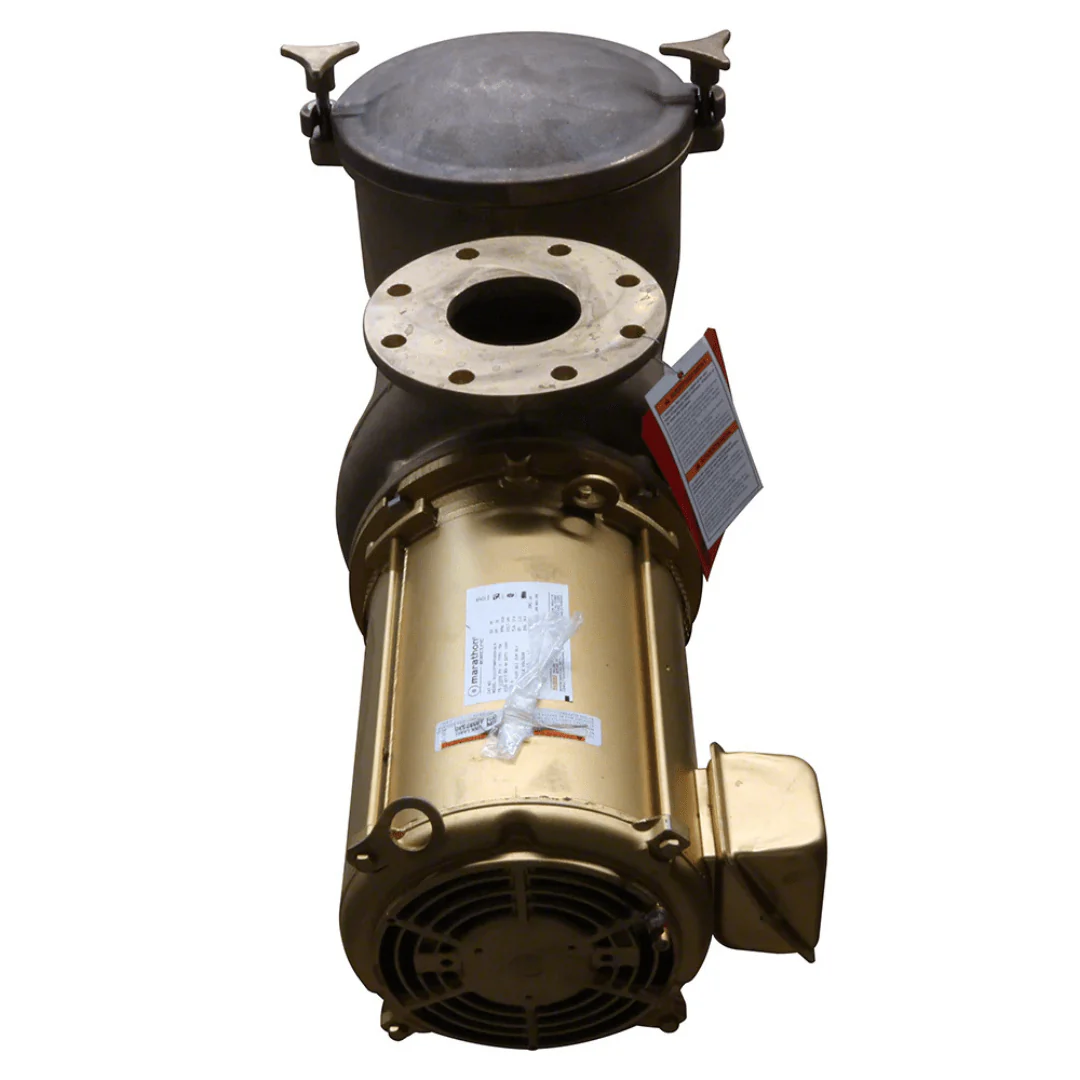

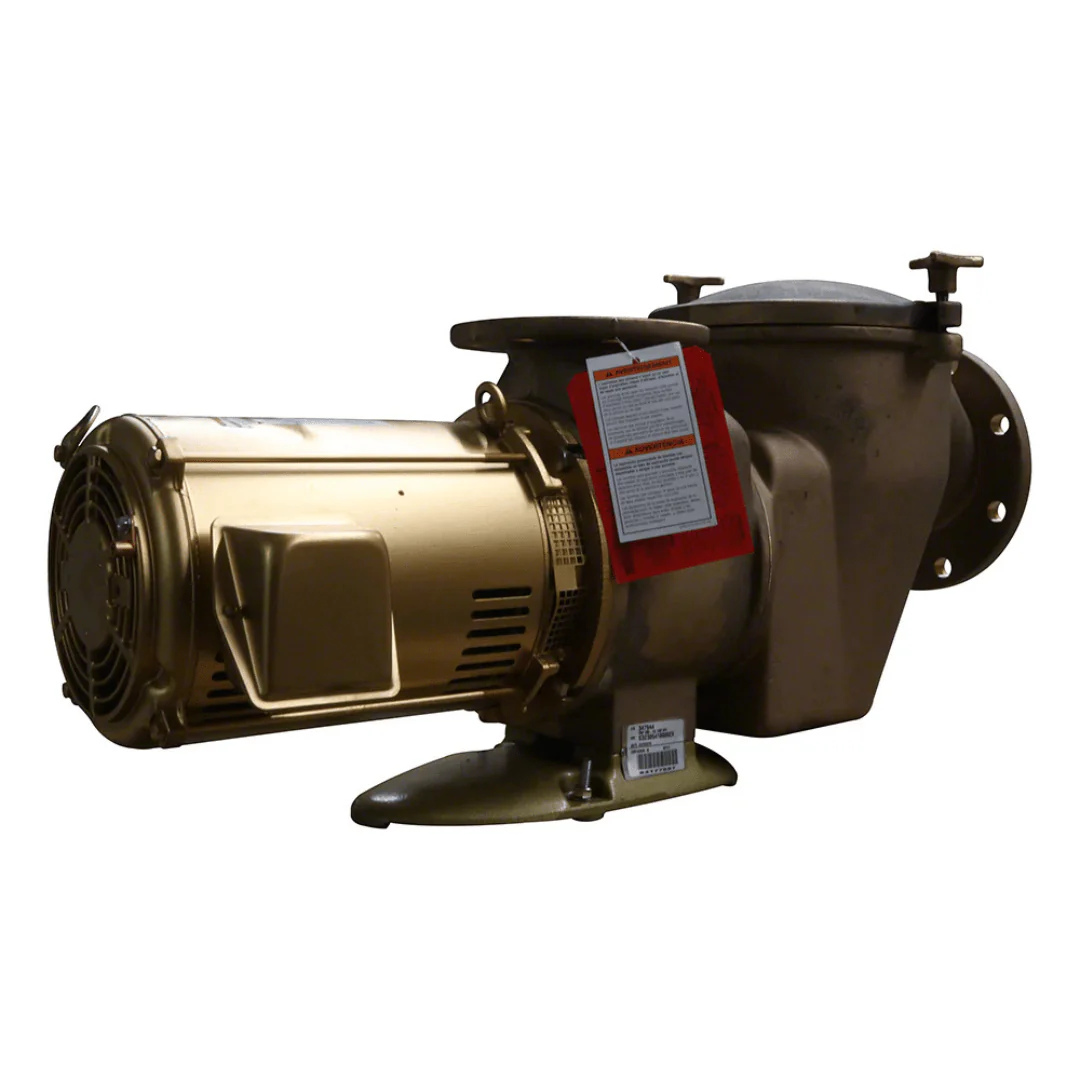

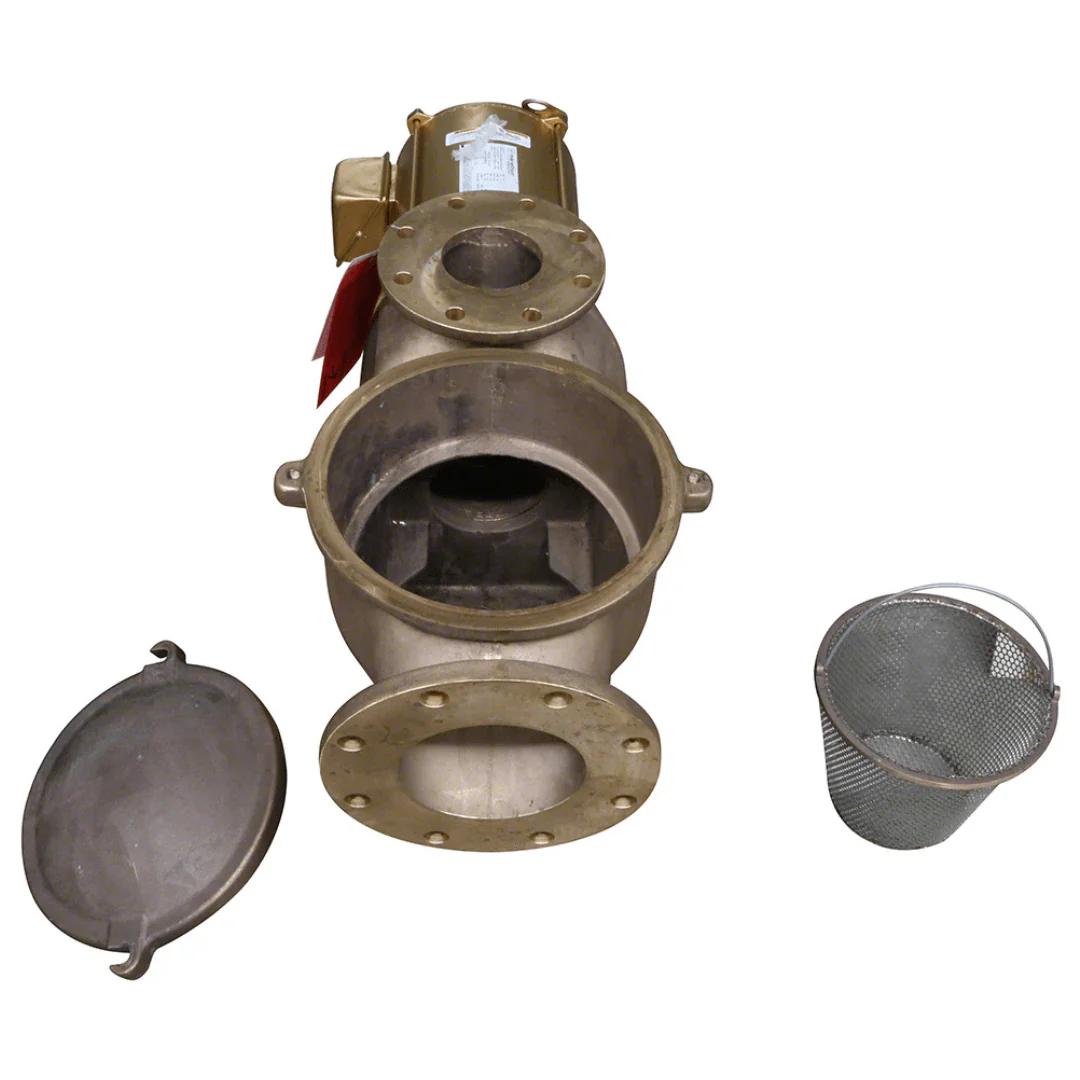

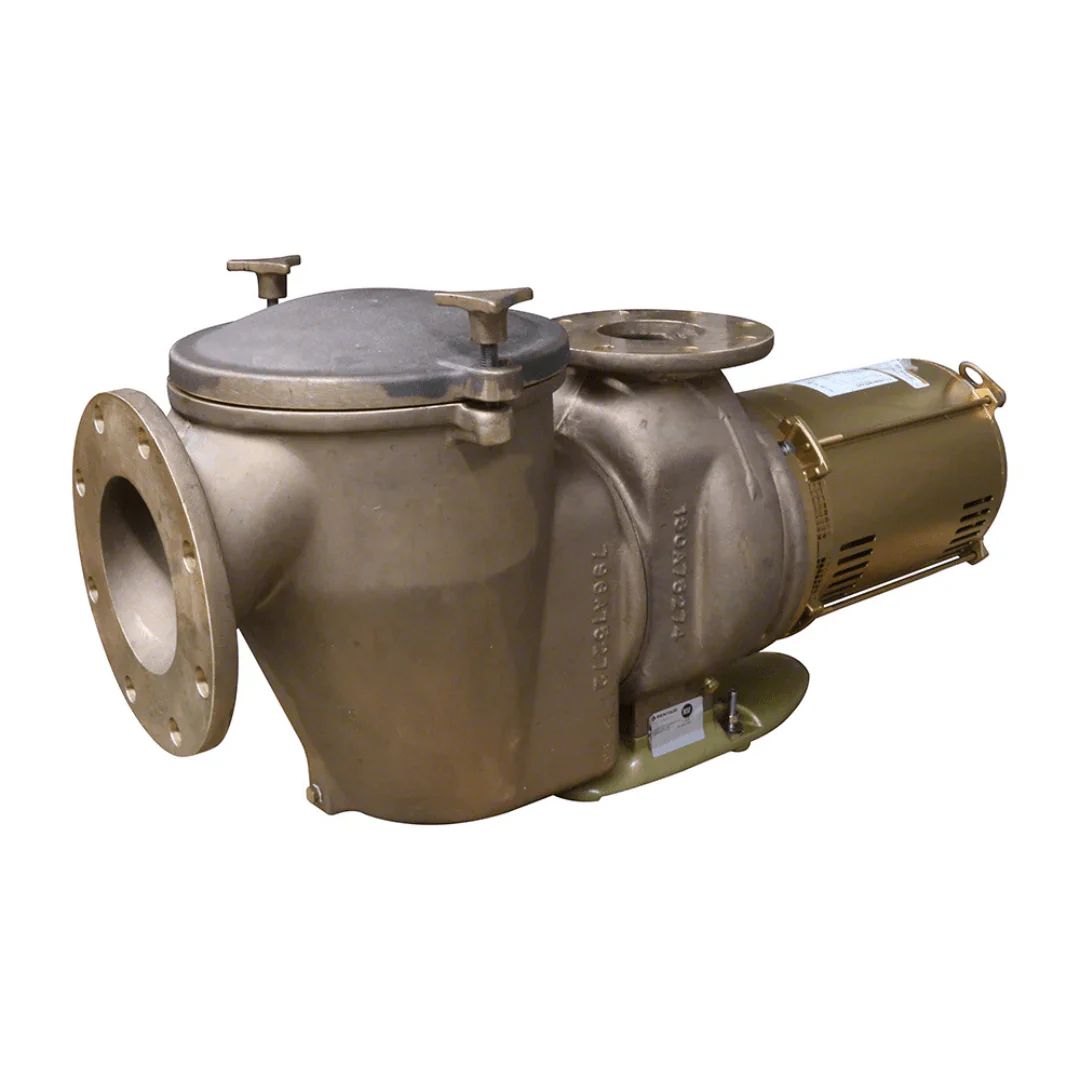

C Series Commercial Bronze Pump has a Bronze volute and pot, coasted cast iron foot, flanged connections, 6" suction, and 4" discharge. The "C" Series is perfect for the toughest indoor or outdoor projects. This pump's lasting efficiency, quiet operation, easy maintenance, and durability have set the standard for medium- and high-head performance in the pool industry for many years.
- Brochure
- Install Guide
- Tech Info
Specifications:
- Brand: Pentair
- Amps High Speed: 18.4
- Shipping Dimensions: 20 x 45 x 22 inch
- Amps Low Speed: 9.2
- Application: Pool
- Commercial, Residential, or Professional: Commercial
- Weight: 349 pounds
- Flow Rate Max: 740
- Flow Rate Min: 0
- Frequency Rating (Hz): 60
- Horsepower: 7.5 horsepower
- Material: Bronze
- Motor Speed: 1-Speed
- Phase: Three
- Service Factor: 1.15
- Service Factor HP: 8.63
- Thrust HP: 7.5
- Voltage: 220V
- UPC Code: 788379663674
