Pentair 3HP IntelliFlo3 VSF Variable-Speed Pump Wifi + IO Relay 011076

ENERGY SAVINGS & SUPERIOR PERFORMANCE, ALL IN A GAME-CHANGING PUMP.

• The Pentair 011076 3.0 HP IntelliFlo3® VSF Pump with I/O Relay Board is ideal for users who want to control additional devices like lights, salt cells, and other on/off equipment directly from the pump.

The IntelliFlo3 Variable Speed and Flow Pool Pump sets a new bar for performance with built-in sensorless flow control for effortless, optimum flow and aids in keeping the pool crystal clear and inviting, no matter what it requires.

• Proprietary flow technology maintains the pool’s optimum flow.

• Up to 90%* energy savings. Slower speed and regulated flow save energy.
• New motor, drive, and hydraulics. Department of Energy (DOE) compliant.
• Easy control via the Pentair Home app or optional touchscreen.
• WEF 7.1 THP 3.0

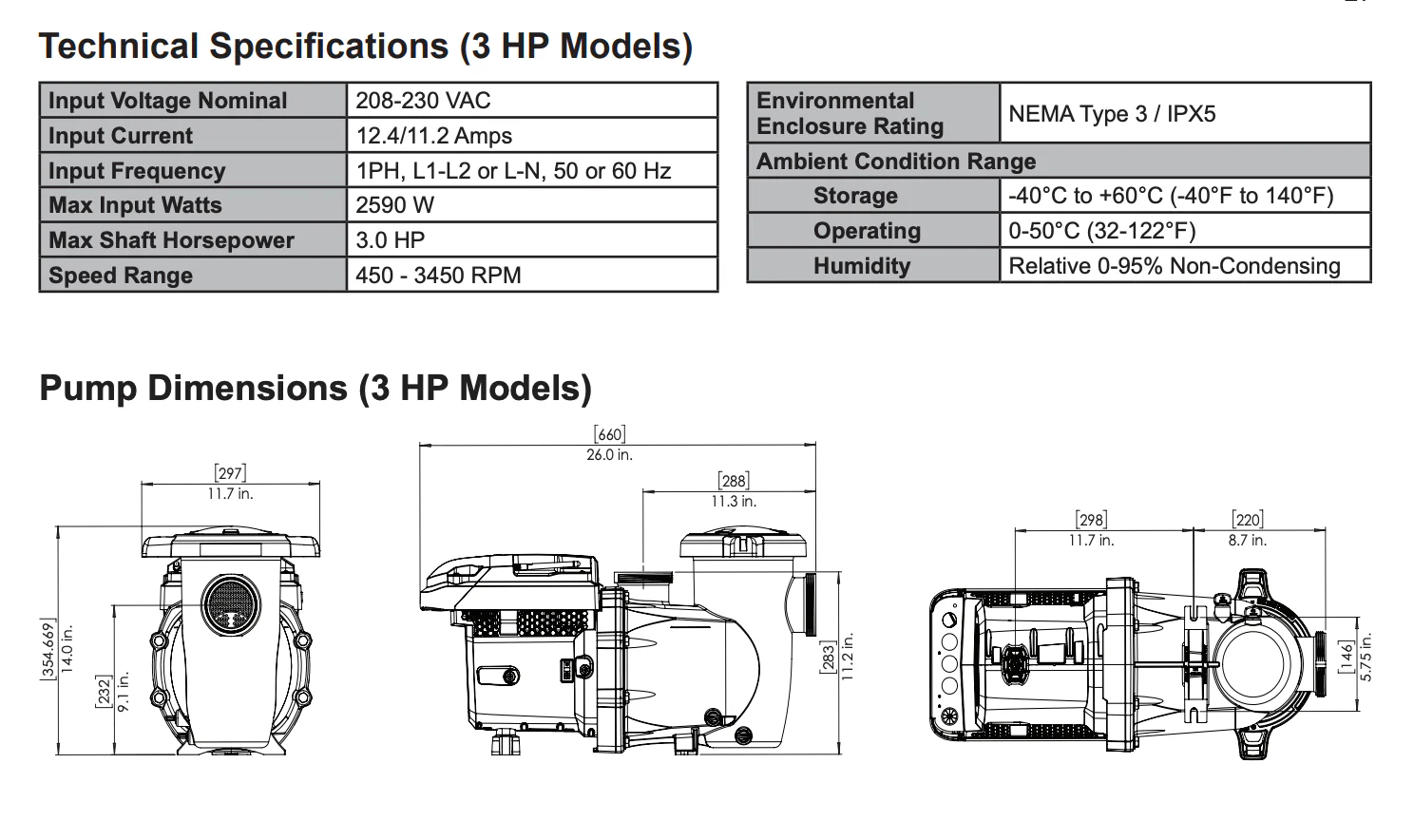

Pentair 011076 IntelliFlo3 VSF 3.0HP w/ I/O Board Specifications:

• Brand: Pentair
• Amperage: 12.4 amperage
• Application: Pool
• Color: Beige
• Weight: 53.5 pounds
• Flow Rate Max: 140 gal/min
• Flow Rate Min: 20 gal/min
• Frequency Rating (Hz): 50/60
• Horsepower: 3 horsepower
• Max Working Pressure: 30 pounds per square inch
• Motor Speed: Variable
• Standards Approvals: NSF Certified, UL Certified
• Thrust HP: 3
• Voltage: 230V
• Wattage: 2590 watts
• Cord Type: NEMA
• Weighted Energy Factor (WEF): 7.1
• UPC Code: 788379886134
• Part Numbers: 011076 IntelliFlo3 VSF 3.0HP w/ I/O board

MODELS:

• [Discontinued] 011075 IntelliFlo3® VSF Pump: Perfect for users who want a high-quality pump with built-in Wi-Fi connectivity.
• [Discontinued] 011076 IntelliFlo3® VSF Pump + I/O Relay Board: Ideal for users who need to control additional devices like lights, salt cells, and other on/off equipment directly from the pump.
• [Current model] 011077 IntelliFlo3® VSF Pump + Touchscreen: Best for users who prefer to program pump settings directly on the pump using a touchscreen, either as a standalone option or in addition to Wi-Fi control.
• [Discontinued] 011078 IntelliFlo3® VSF Pump + I/O Relay Board and Touchscreen: Best for users who want access to all features.

Support Documents:

• Brochure IntelliFlo3 VSF Pool Pump
• Brochure Pentair Pump Family
• Pool Product Warranty Information
• Pool & Spa Calculators
• Variable Speed Pool Pumps Comparison

*Please note: Pentair models 011075, 011077, and 011078 have been discontinued and are no longer available.
