Pentair SuperFlo 348190 1 Speed High Performance Pump .69 HHP 1.1 THP TEFC

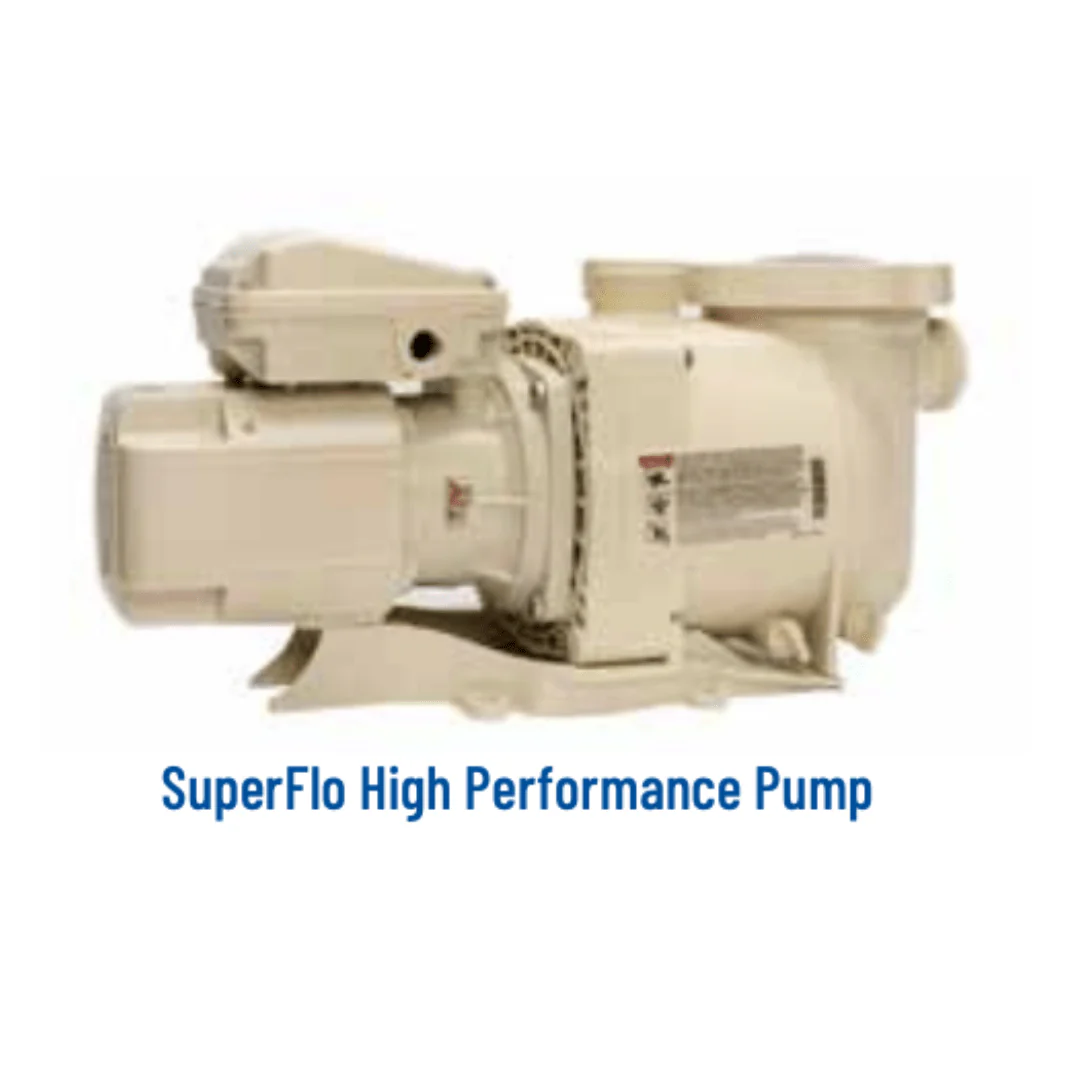

The SuperFlo® High-Performance Pump delivers quiet, efficient operation with a 1 HP TEFC motor and a compact, durable design. Ideal for smaller inground pools, it’s a direct replacement for discontinued Hayward Super Pumps.

Features:

• 1 HP, 115/208-230V, single-phase
• Self-priming and performance-tested
• 1.5" x 1.5" NPT ports with unionized 1.5" slip (internal) and 2" slip (external) fittings
• Thick-walled body, integrated volute/pot for quiet operation
• See-through lid with Cam and Ramp™ quarter-turn lock
• Compact footprint fits tight equipment pads
• UL 1081 / CSA C22.2 No. 108 compliant, NSF certified

Built for longevity and whisper-quiet performance, SuperFlo is a top choice for dependable pool circulation.

DOE COMPLIANT SINGLE-SPEED TEFC: 348190

ITEM #	VOLTAGE	FULL LOAD AMPS	THP	WEF	HHP	SF	PORT SIZE (NPT)	WT. (LBS)	DOE COMPLIANT
348190	115/208-230	10.5/5.5-5.4	1.1	3.6	0.63	1	1.5"	50	Yes

ULTRA-QUIET PERFORMANCE

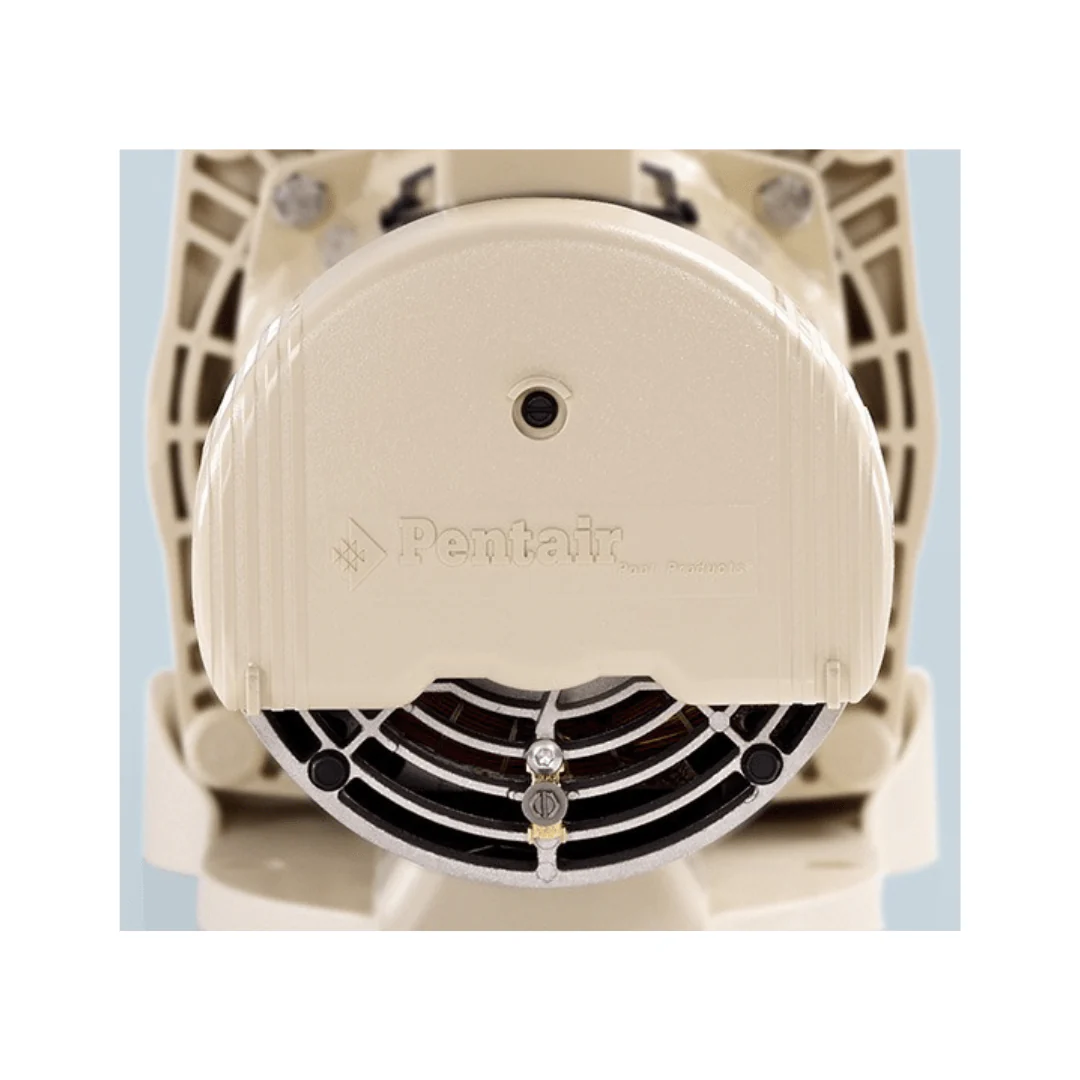

The ultra-quiet totally enclosed fan-cooled motor barely makes a whisper and virtually eliminates unpleasant, high-pitched noise.

• Pentair Pump Family Brochure
• Installation and User's Guide (2021 DOE Compliant Models)
• Manual (Pre-2021 Models)
• Replacement Parts

Q: What’s the difference between the Pentair SuperFlo and WhisperFlo?

A: The SuperFlo is ideal for standard residential pools with quiet, reliable performance. The WhisperFlo is better for larger or more demanding pools, offering higher flow rates and improved energy efficiency.
