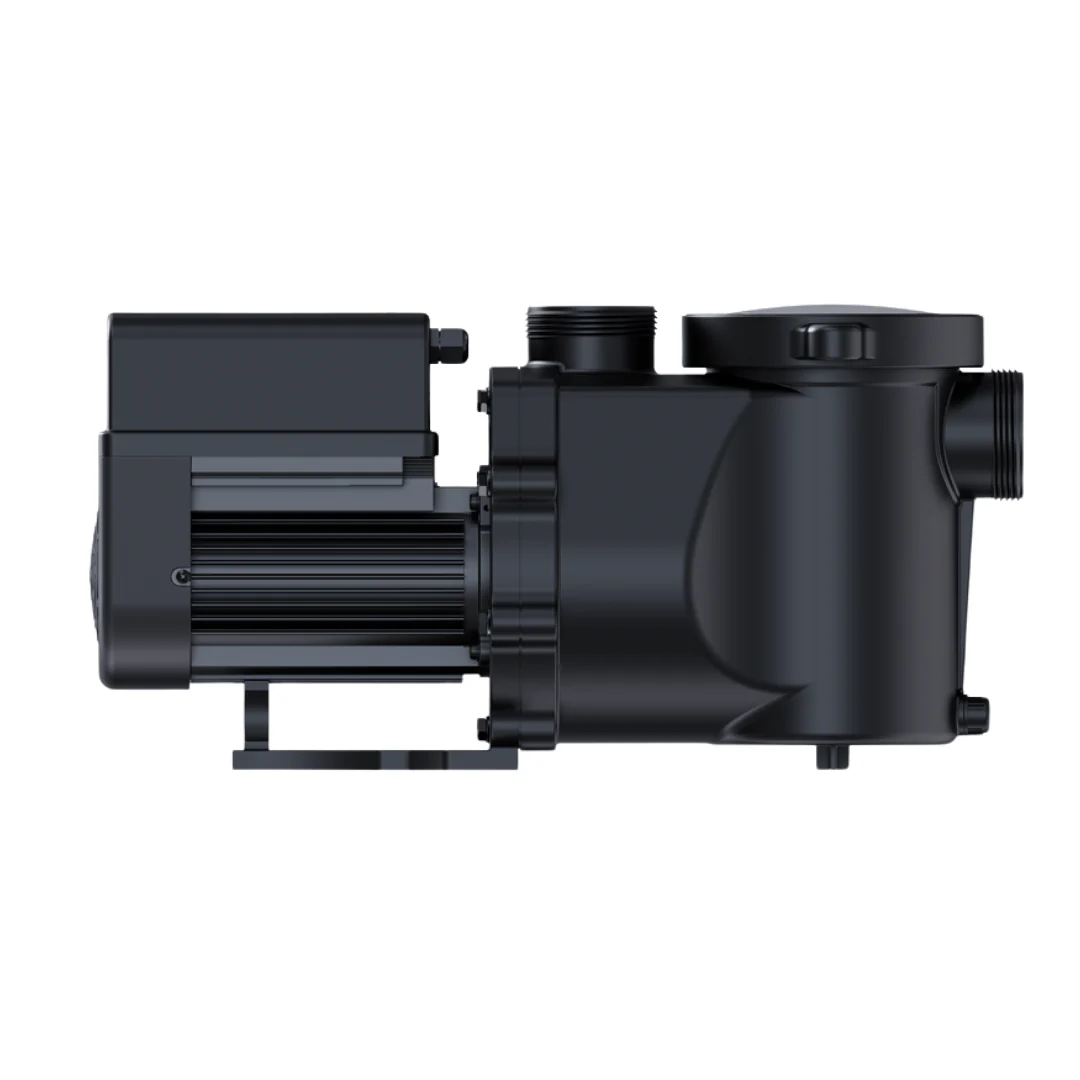

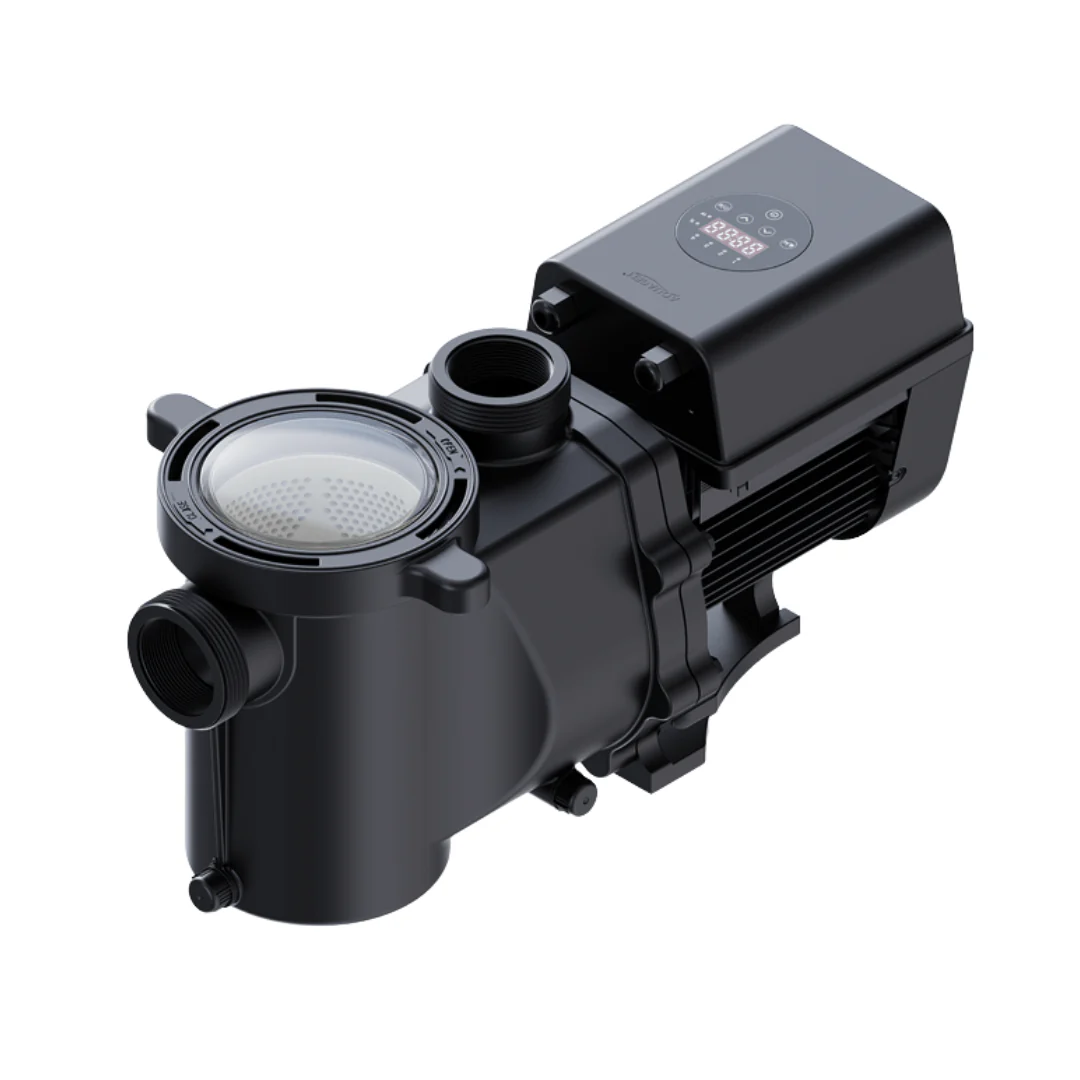

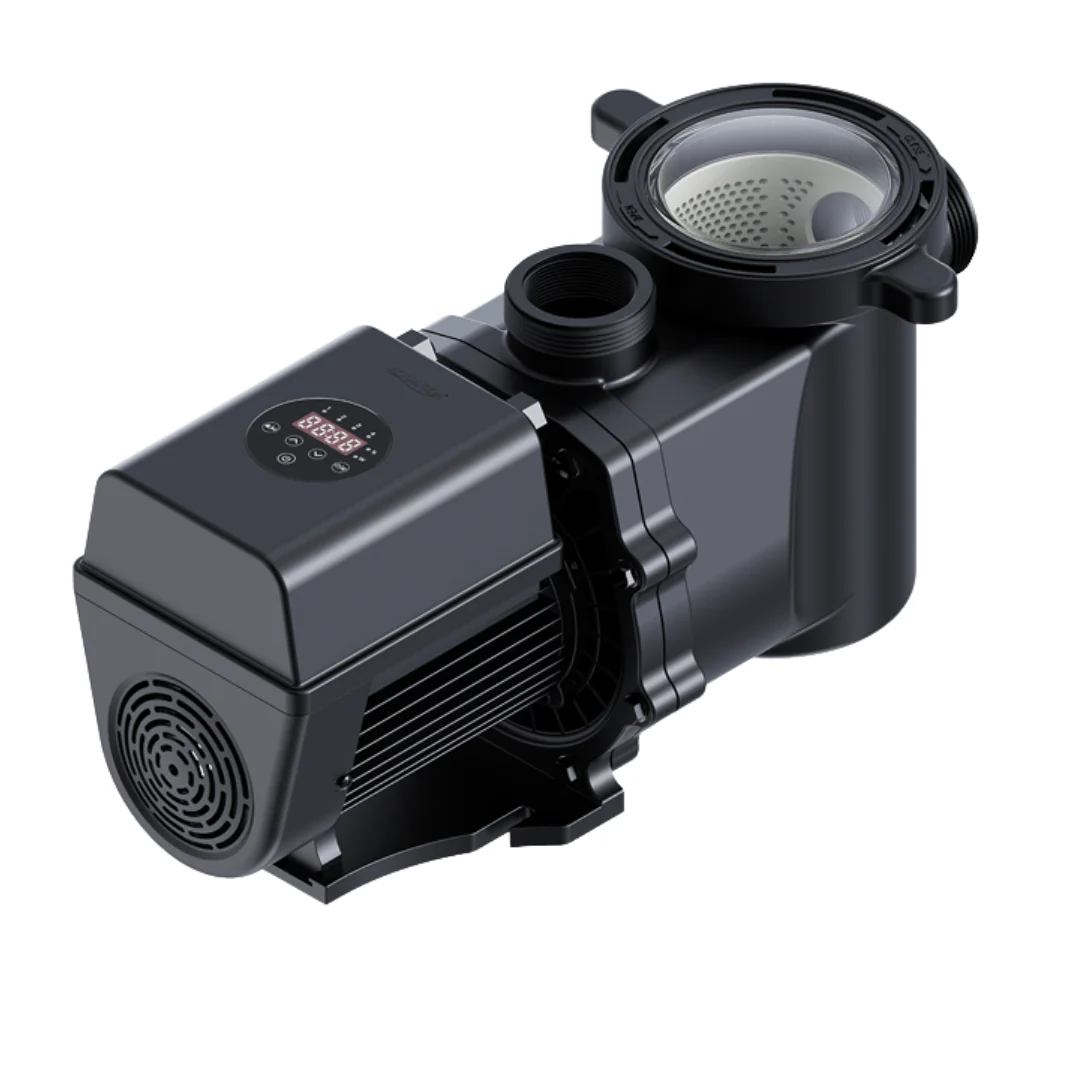

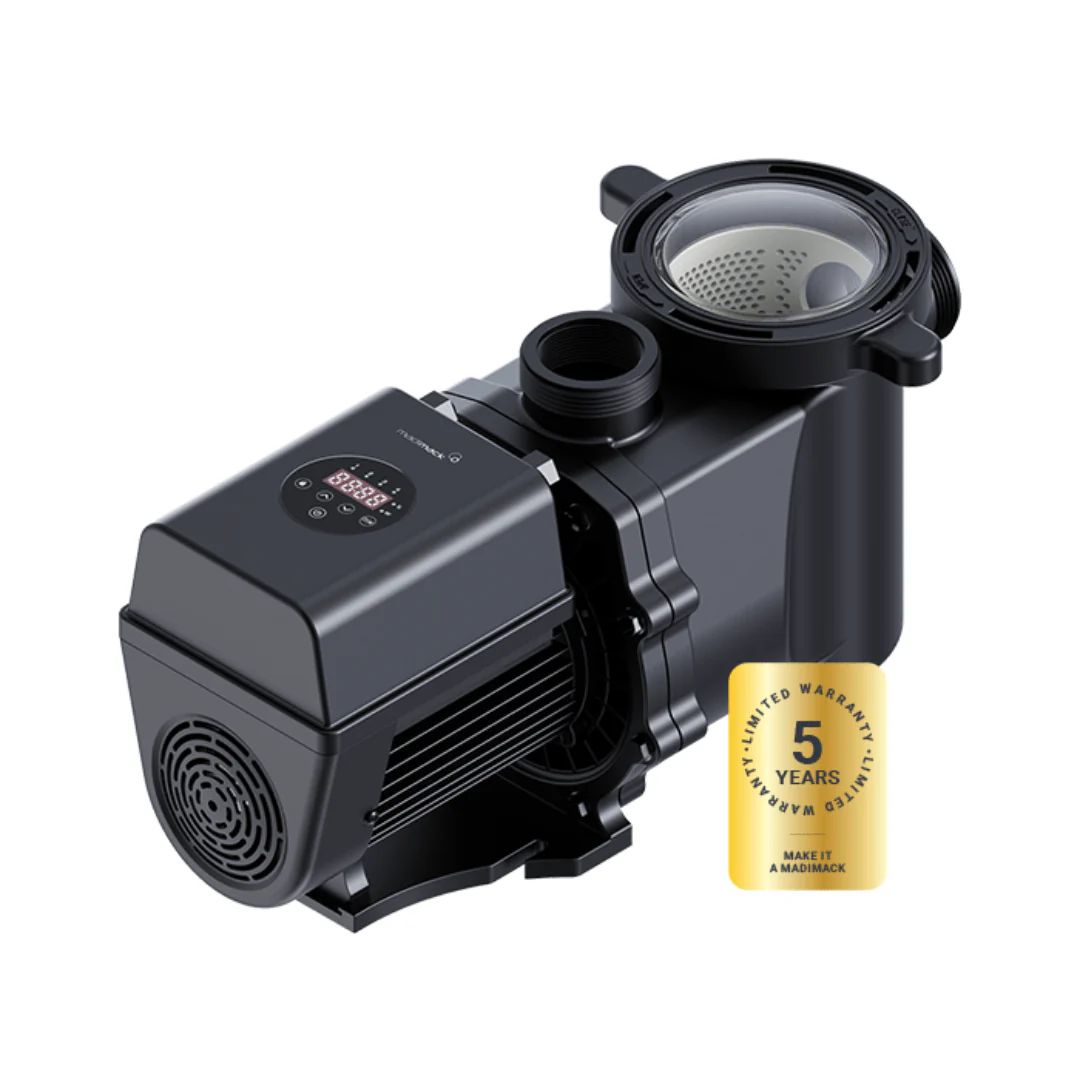

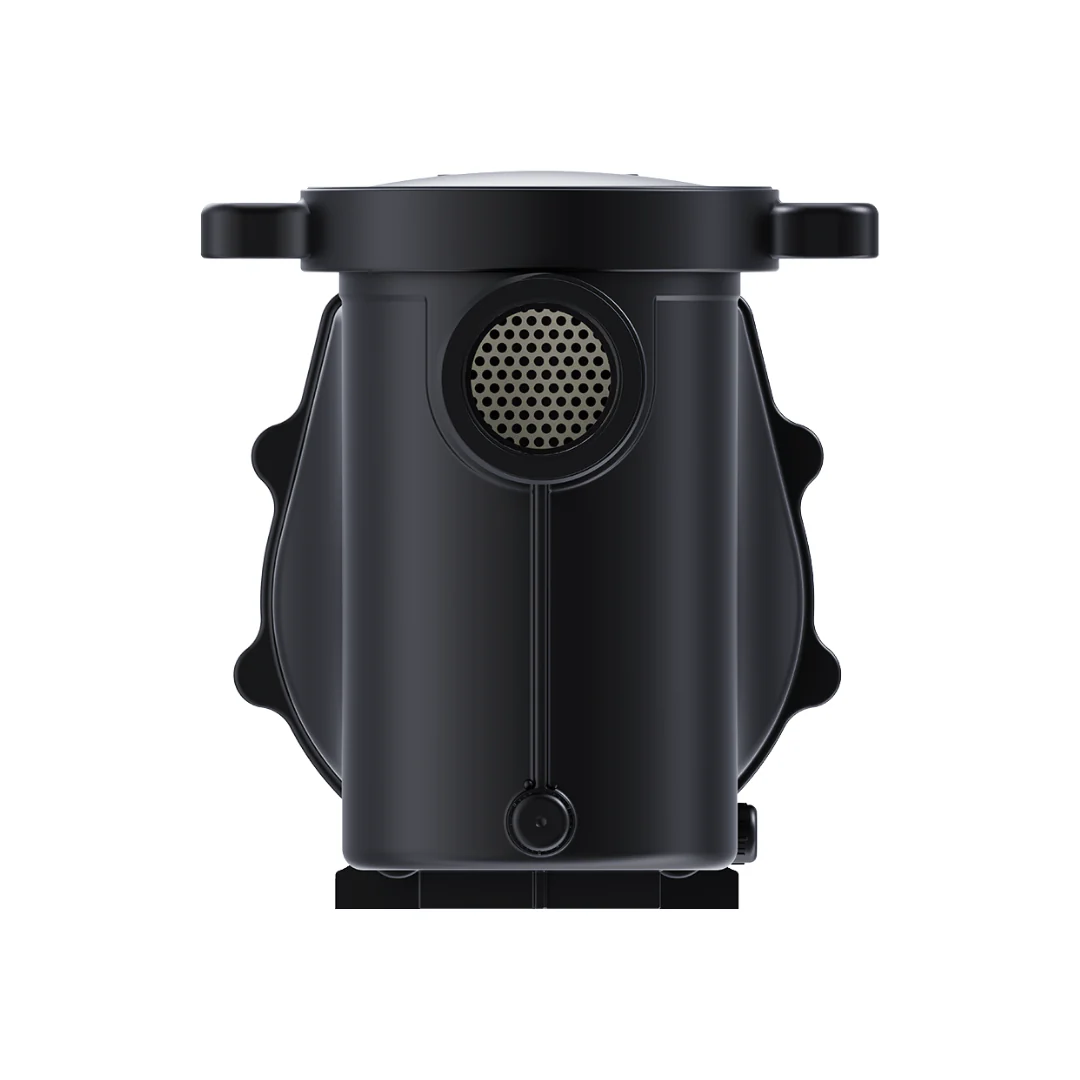

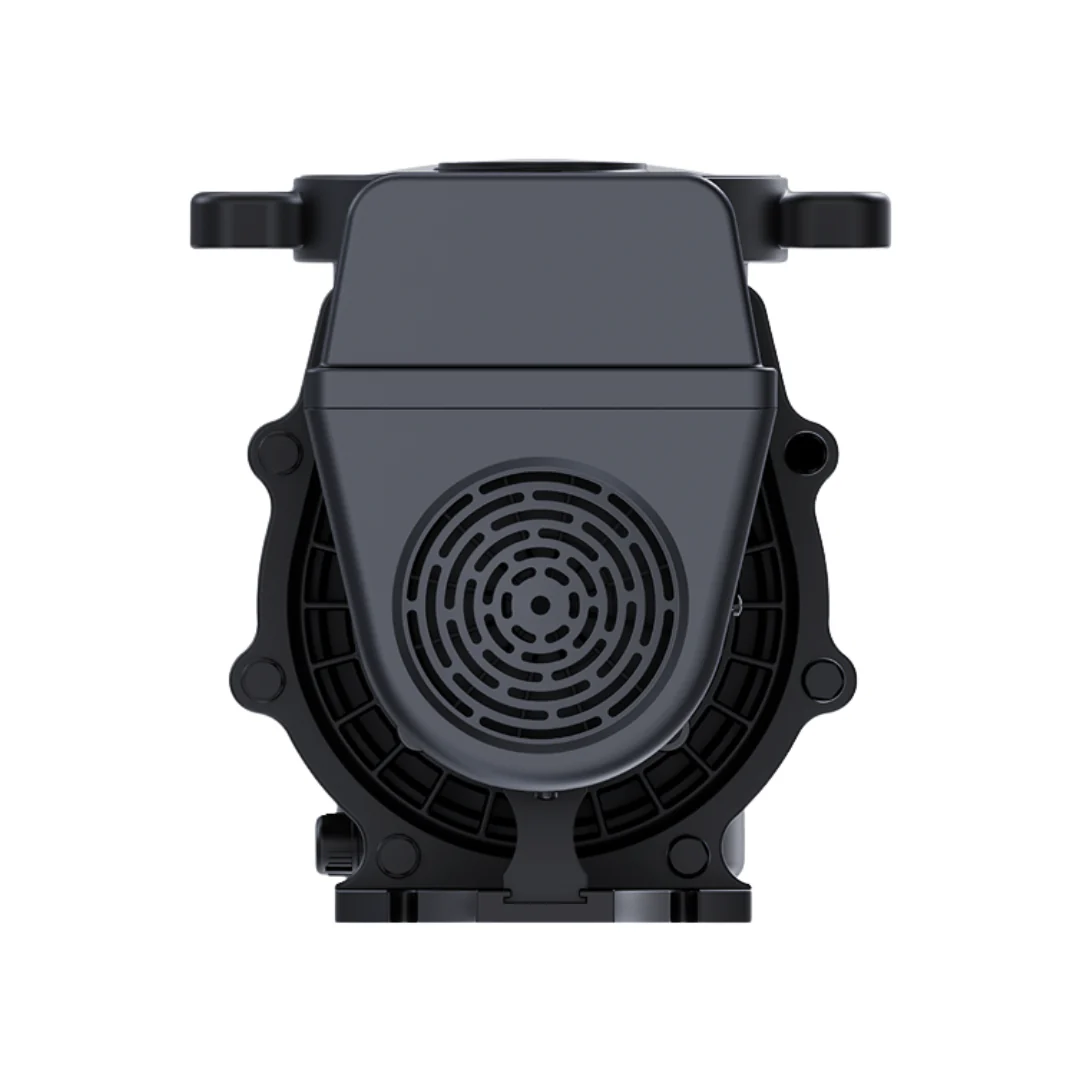

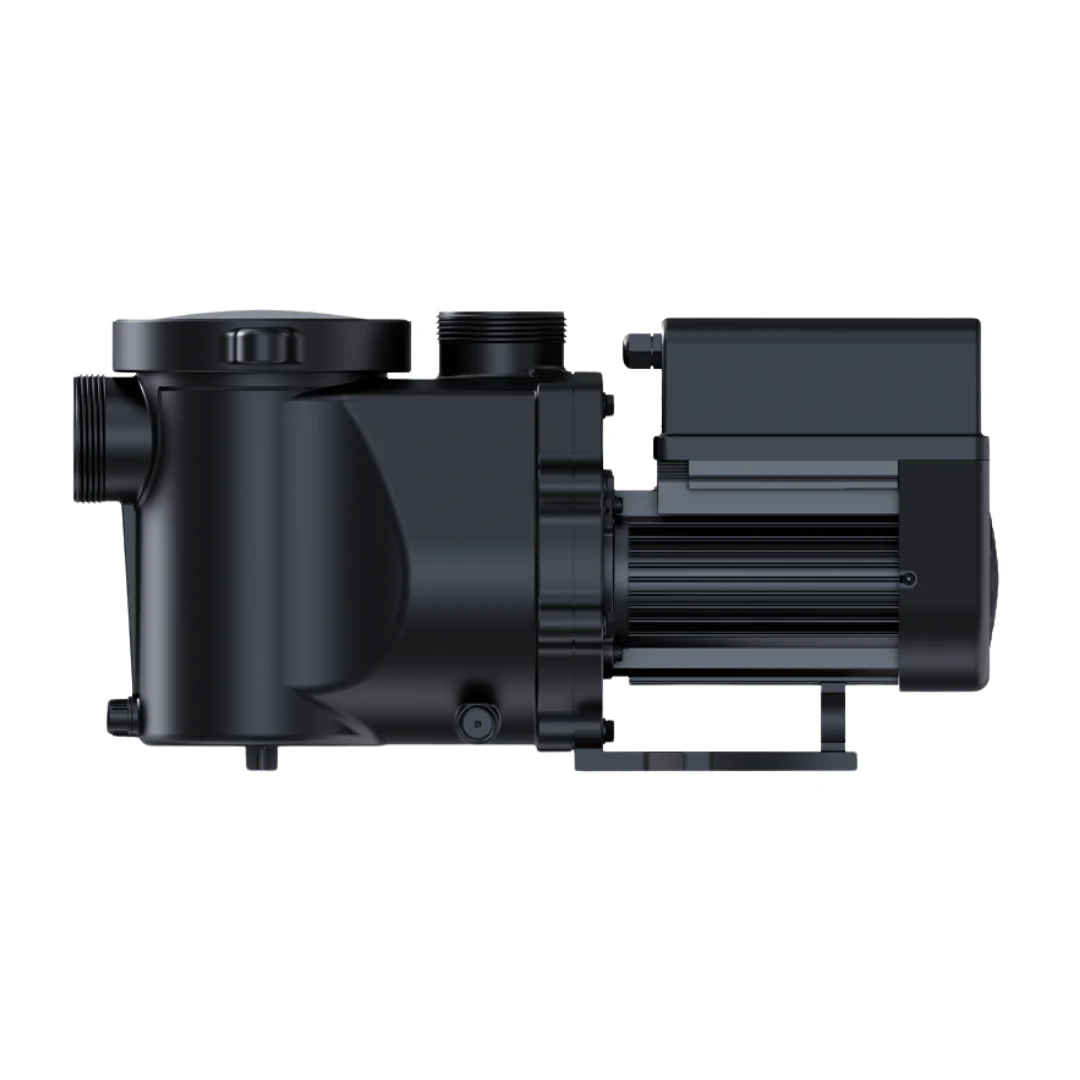

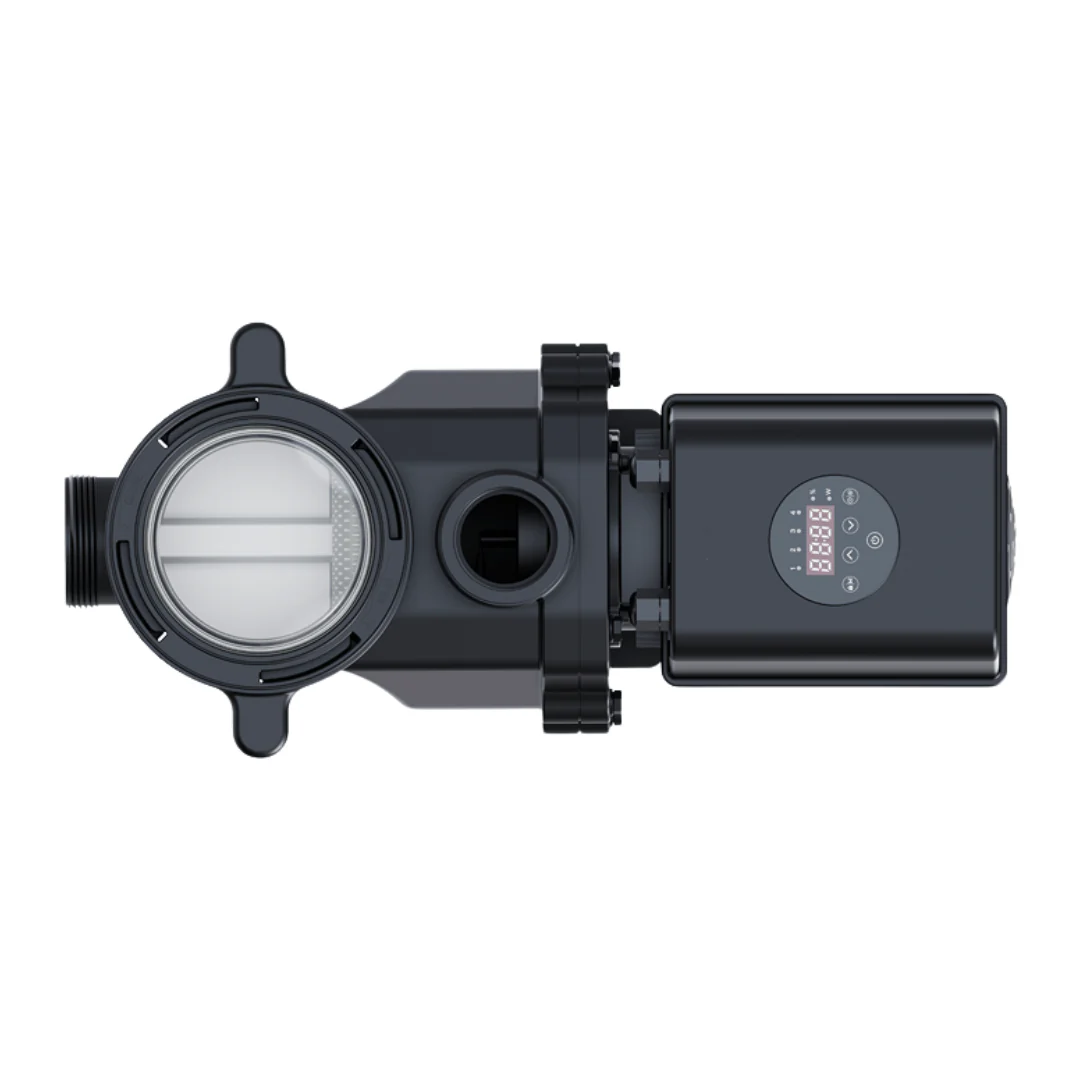

Madimack inverFLOW PLUS

Experience the next generation of pool pumps. The inverFLOW PLUS combines powerful performance with ultra-efficient full inverter technology—saving energy and running as quietly as 33dB.

• Wi-Fi control for easy operation
• Dual Voltage 110/220V
• Pentair Whisperflo base
• Skimmer Mode for a cleaner pool surface
• 5-year industry-leading warranty

Features:

• InverMAC Technology: Enhanced inverter motor for efficient performance and motor speed control
• DC Brushless Motor: Permanent magnetic motor for long lasting energy efficiency
• Advanced Sound Suppression Technology: Quiet operation down to 33 dB
• 4 Timers For Daily Operation: Full control capabilities, with multi speed and multi timer function
• Skimmer/Boost Mode: Activates for 5 minutes every hour to optimize surface cleaning efficiency
• Active Energy Monitor: Monitor and manage operational efficiency
• Running Capacity From 30%~100%: Full inverter technology for maximum control—30%−100% set points
• Wi-Fi Capabilities: Control your pump operation remotely
• Dual Voltage: Enabling flexible installation and ensure consistent performance regardless of the voltage

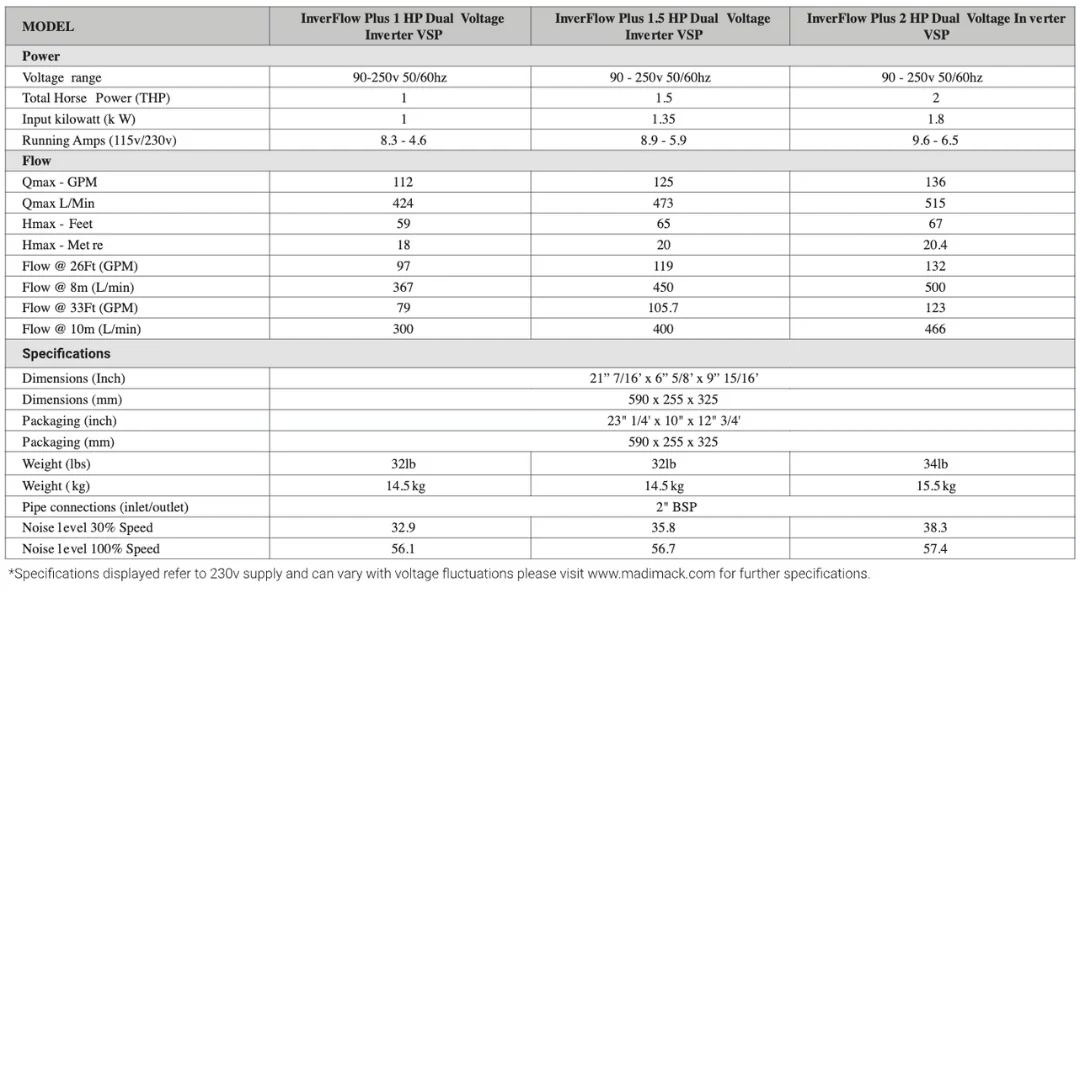

Specifications:

• Voltage range: 90 - 250v 50/60hz
• Total Horse Power (THP): 1.5
• Input kilowatt (kW): 1.35
• Running Amps (115v/230v): 8.9 - 5.9
• Qmax - GPM: 125
• Qmax L/Min: 473
• Hmax - Feet: 65
• Hmax - Metre: 20
• Flow @ 26Ft (GPM): 119
• Flow @ 8m (L/min): 450
• Flow @ 33Ft (GPM): 105.7
• Flow @ 10m (L/min): 400
• Dimensions (Inch): 21” 7/16’ x 6” 5/8’ x 9” 15/16’
• Packaging (inch): 23" 1/4' x 10" x 12" 3/4'
• Weight (lbs): 32lb
• Pipe connections (inlet/outlet): 2" BSP
• Noise level 30% Speed: 35.8
• Noise level 100% Speed: 56.7

Support Documents:

• Brochure
• User Manual
