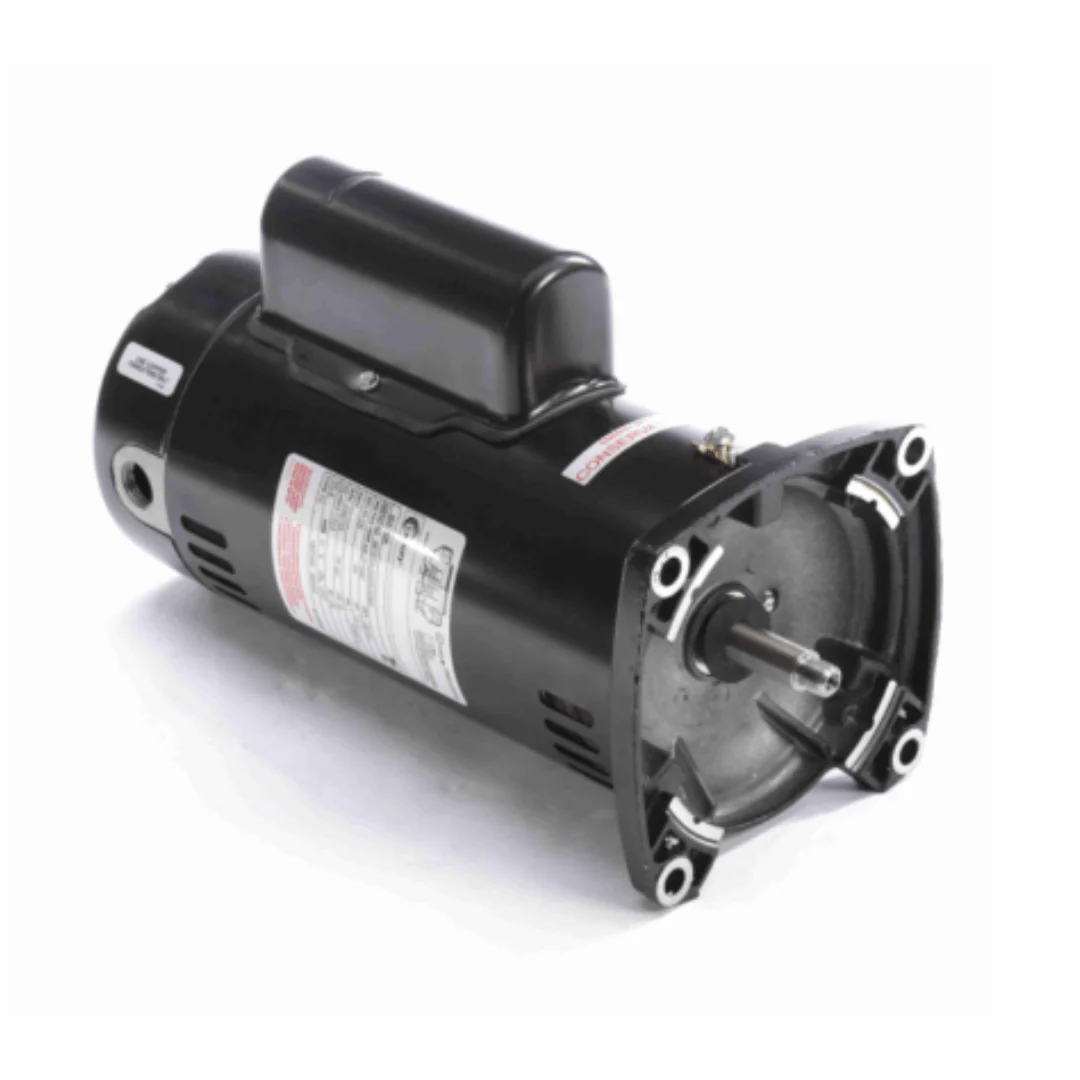

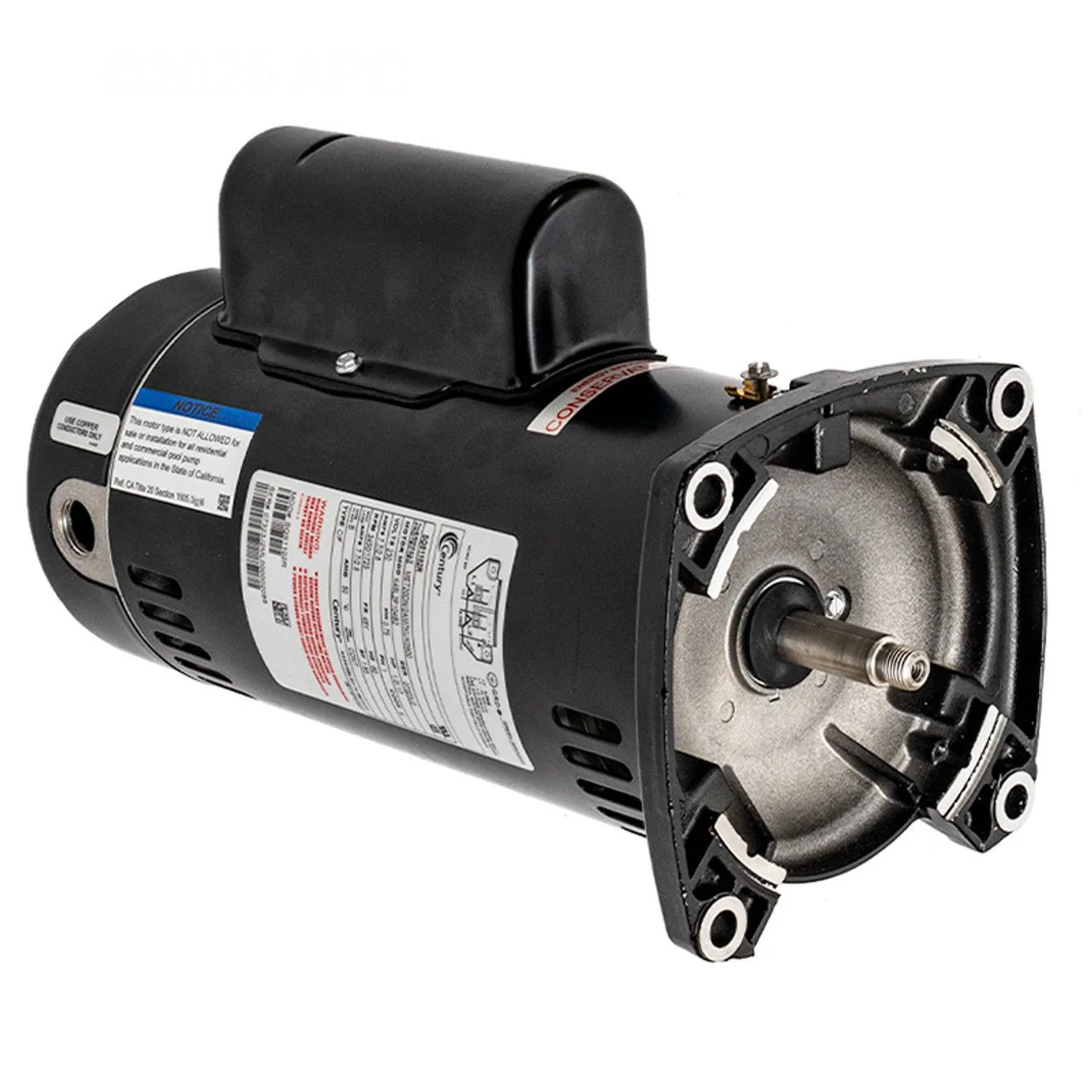

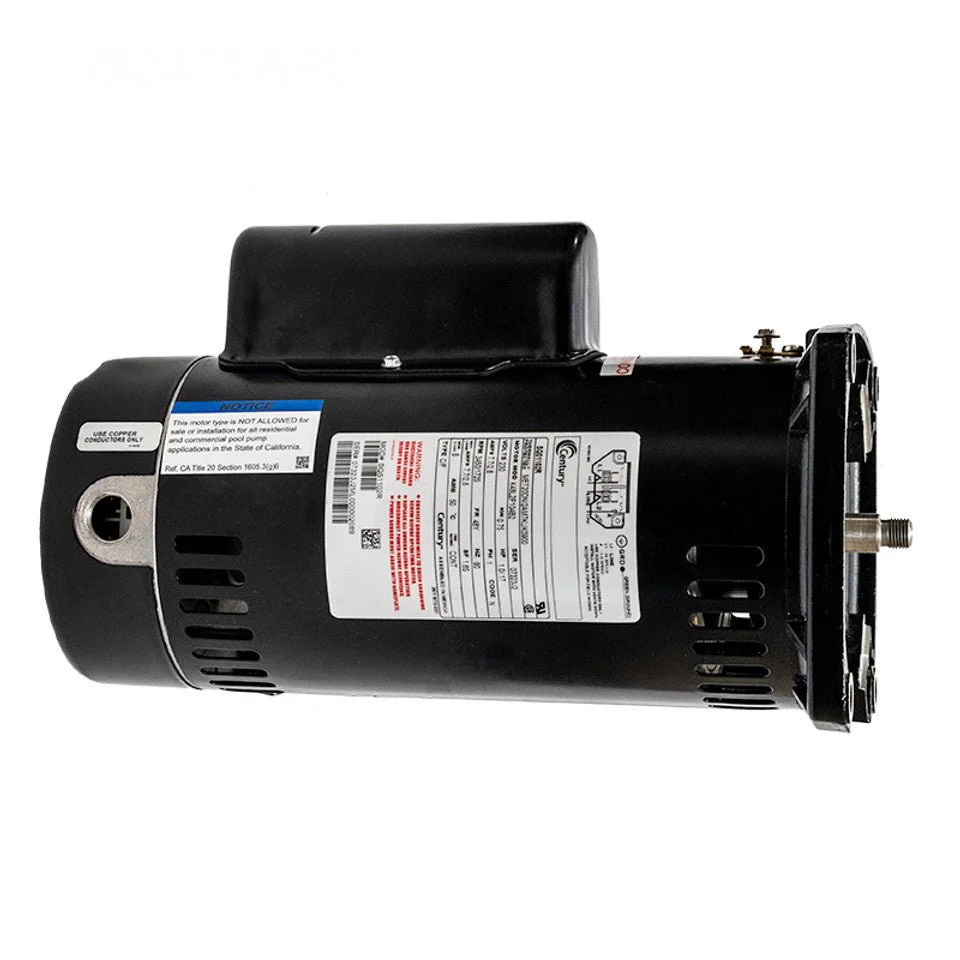

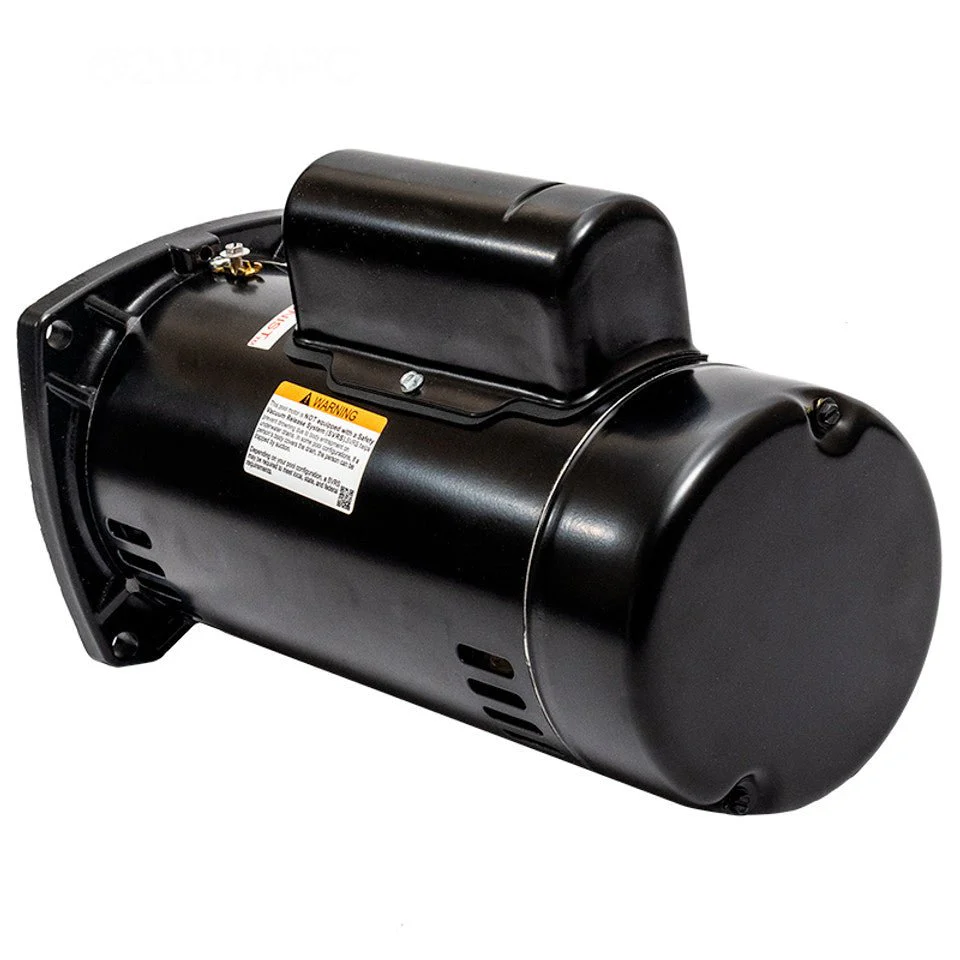

Century SQS1102R Pool Pump Motor, 1.0/.17 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 48Y Frame, ODP
- Two Speed
- All Copper Windings
- Energy Efficient
- 50Ā°C Ambient
- Capacitor Start Low Speed
- PSC High Speed
- Open Dripproof
- Meets California Energy Commission Appliance Regulations 2008
- UL 1081 Design
- 303 Stainless Steel Shaft
Specifications:
- Phase: 1
- Output HP: 1.0/.17 Hp
- Output KW: 0.75 kW
- Voltage: 230 V
- Speed: 3450/1725 rpm
- Service Factor: 1.65
- Frame: 48Y
- Enclosure: Open Drip Proof
- Thermal Protection: Automatic
- Ambient Temperature: 50 Ā°C
- Frequency: 60 Hz
- Current: 7.7/2.8 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 2
Ā
$479.99
Century SQS1102R Pool Pump Motor, 1.0/.17 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 48Y Frame, ODPā
$479.99
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Two Speed
- All Copper Windings
- Energy Efficient
- 50Ā°C Ambient
- Capacitor Start Low Speed
- PSC High Speed
- Open Dripproof
- Meets California Energy Commission Appliance Regulations 2008
- UL 1081 Design
- 303 Stainless Steel Shaft
Specifications:
- Phase: 1
- Output HP: 1.0/.17 Hp
- Output KW: 0.75 kW
- Voltage: 230 V
- Speed: 3450/1725 rpm
- Service Factor: 1.65
- Frame: 48Y
- Enclosure: Open Drip Proof
- Thermal Protection: Automatic
- Ambient Temperature: 50 Ā°C
- Frequency: 60 Hz
- Current: 7.7/2.8 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 2
Ā
