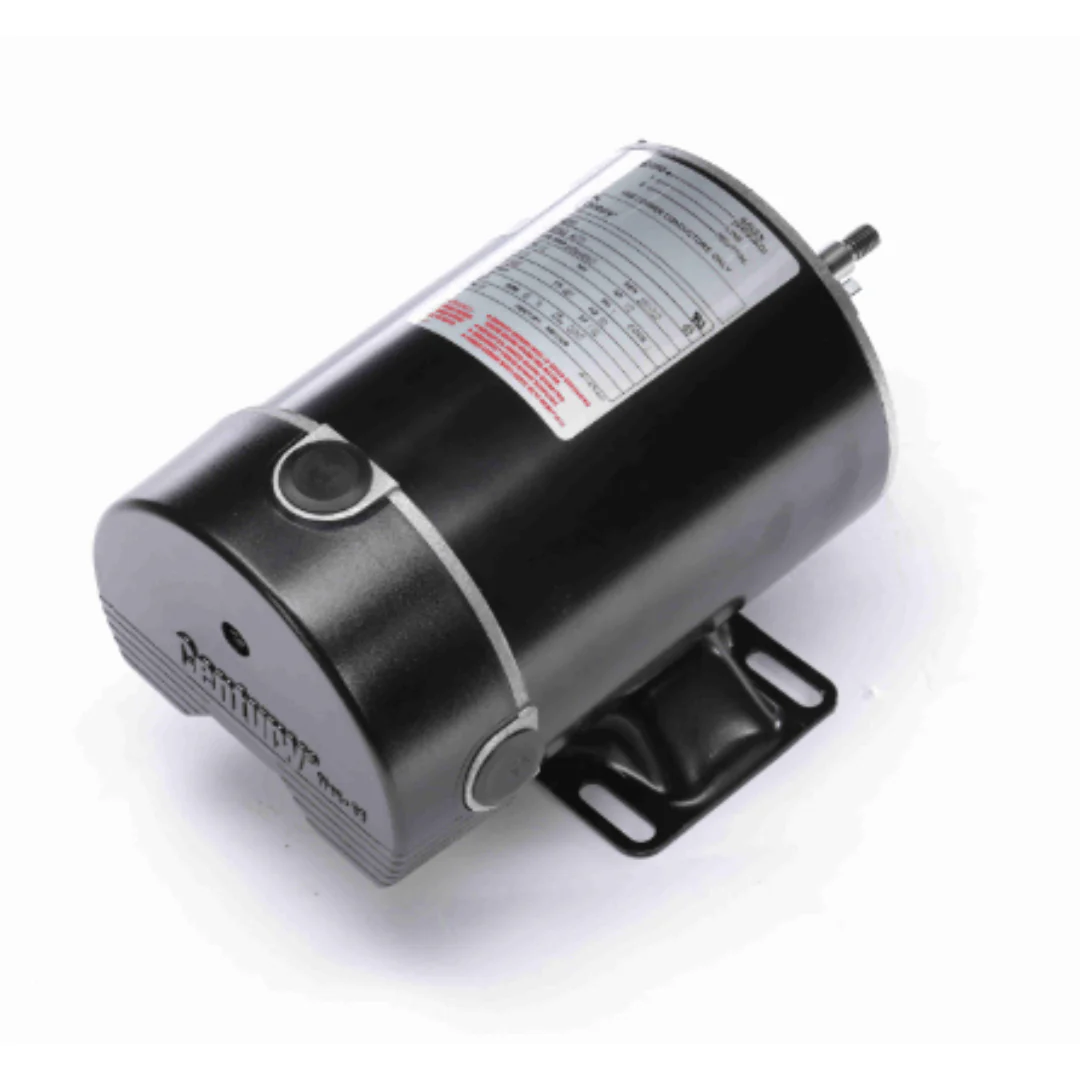

Century BN23V1 Pool Pump Motor, 1/2 HP, 1 Ph, 60 Hz, 115 V, 3600 RPM, 48Y Frame, DP
- 12 & 3 O'clock Conduit Entries
- 3-1/2" Shaft Height
- 40Ā°C Ambient
- Stainless Steel Shaft
- Four Thru Bolts on a 5.146 Bolt Circle
- 48/56 Base Mounting
- Sealed Ball Bearings
- UL 1081 Design
- Rigid Base
- Threaded Shaft
Used On:
- Hayward Power-Flo II Pump PartsĀ Ā
- Jacuzzi LH/LTH Series Pump PartsĀ
- Sta-Rite ABG Series Pump PartsĀ Ā
- Sta-Rite JW Series with Canopy Pump PartsĀ Ā
- Sta-Rite JWP Series Pump PartsĀ
- Sta-Rite LT Series Pump Parts
- PowerFlo SP1500 Pump Series Parts
Specifications:
- Phase: 1
- Output HP: 1/2 Hp
- Output KW: 0.37 kW
- Voltage: 115 V
- Speed: 3450 rpm
- Service Factor: 1
- Frame: 48Y
- Enclosure: Drip Proof
- Thermal Protection: Thermally Protected
- Ambient Temperature: 40 Ā°C
- Frequency: 60 Hz
- Current: 7.0 A
- Duty: Continuous
- Insulation Class: B
- UL: Recognized
- CSA: Y
- Number of Speeds: 1
Ā
$179.99
Century BN23V1 Pool Pump Motor, 1/2 HP, 1 Ph, 60 Hz, 115 V, 3600 RPM, 48Y Frame, DPā
$179.99
