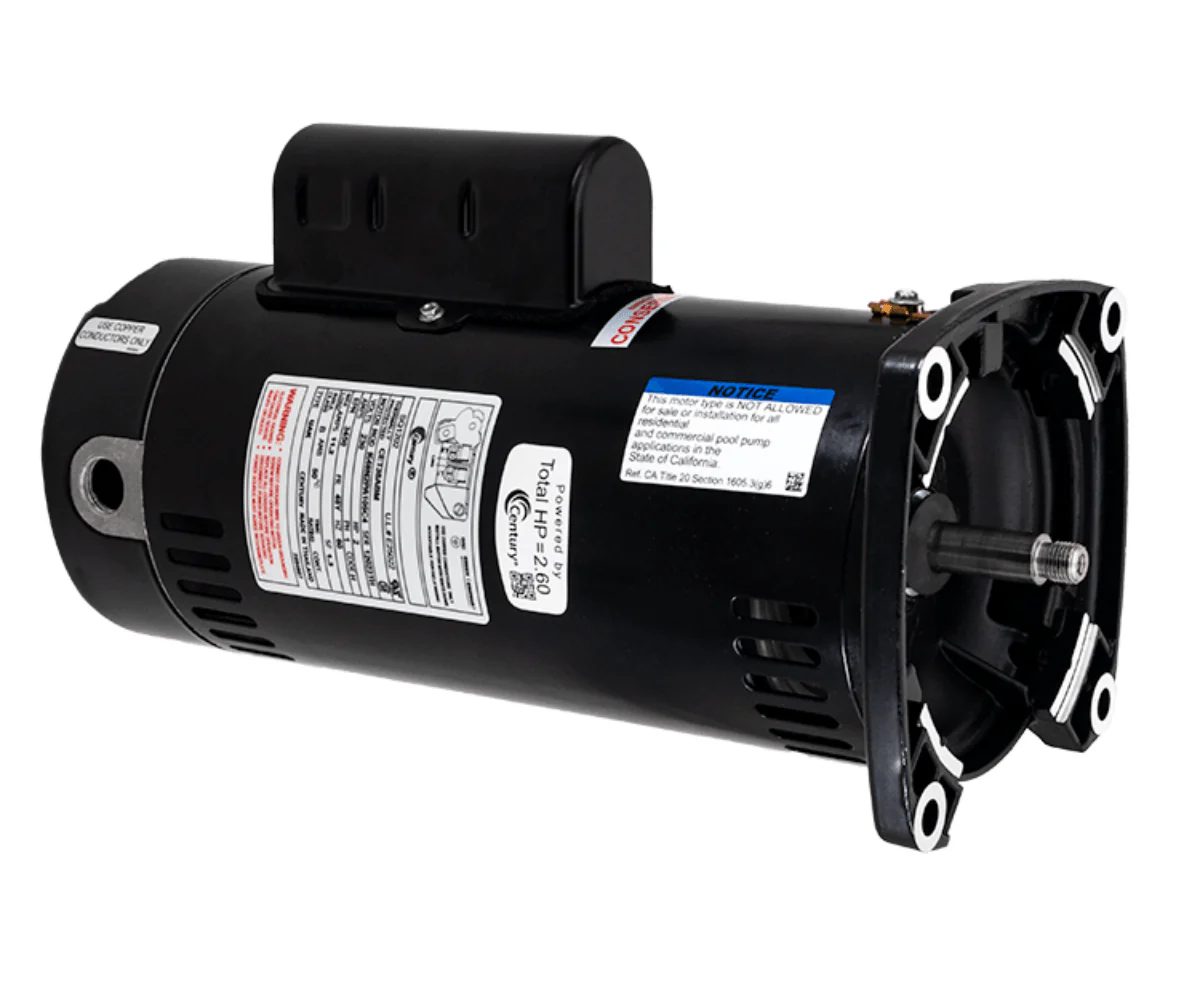

Century SQ1202 Pool Pump Motor, 2 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 48Y Frame, ODP
Century SQ1202 Square Flange Full-Rated Two-Compartment Pool Filter Motor; 2 HP; 3450 RPM; 230 V; 48Y; Threaded Shaft
- Energy efficient "Conservationist™" motor
- 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH threaded shaft
Used On:
- Jandy MHP/MHPU Pump Parts
- Sta-Rite Supermax Pump Parts
Specifications:
| Ambient Temperature | 50 deg C |
| Application | Many Sta-Rite®, Red Jacket, Pac Fab and American Products |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | High |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 11.2 A |
| HP | 2 |
| Insulation Class | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start/Run |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 13.88 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.30 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 2.6 |
| Type | Full-Rated, UAK |
| Voltage Rating | 230 V |
$168.00
Original: $479.99
-65%Century SQ1202 Pool Pump Motor, 2 HP, 1 Ph, 60 Hz, 230 V, 3600 RPM, 48Y Frame, ODP—
$479.99
$168.00Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Century SQ1202 Square Flange Full-Rated Two-Compartment Pool Filter Motor; 2 HP; 3450 RPM; 230 V; 48Y; Threaded Shaft
- Energy efficient "Conservationist™" motor
- 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH threaded shaft
Used On:
- Jandy MHP/MHPU Pump Parts
- Sta-Rite Supermax Pump Parts
Specifications:
| Ambient Temperature | 50 deg C |
| Application | Many Sta-Rite®, Red Jacket, Pac Fab and American Products |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 5-5/8 Inch |
| Duty Cycle | Continuous |
| Efficiency Group | High |
| Enclosure Design | Open Dripproof |
| Finish Color | Satin Black |
| Flange Type | Square |
| Frame | 48Y |
| Frequency Rating | 60 Hz |
| Full Load Amps | 11.2 A |
| HP | 2 |
| Insulation Class | B |
| Item | Two-Compartment Pool Filter Motor |
| Motor Design | Capacitor Start/Run |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 13.88 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Service Factor | 1.30 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341) |
| Sub Brand | Century® |
| Thrust Horsepower | 2.6 |
| Type | Full-Rated, UAK |
| Voltage Rating | 230 V |
