• .5 HP MOTOR, 115V/230V
• 1.90 SF FULL RATE

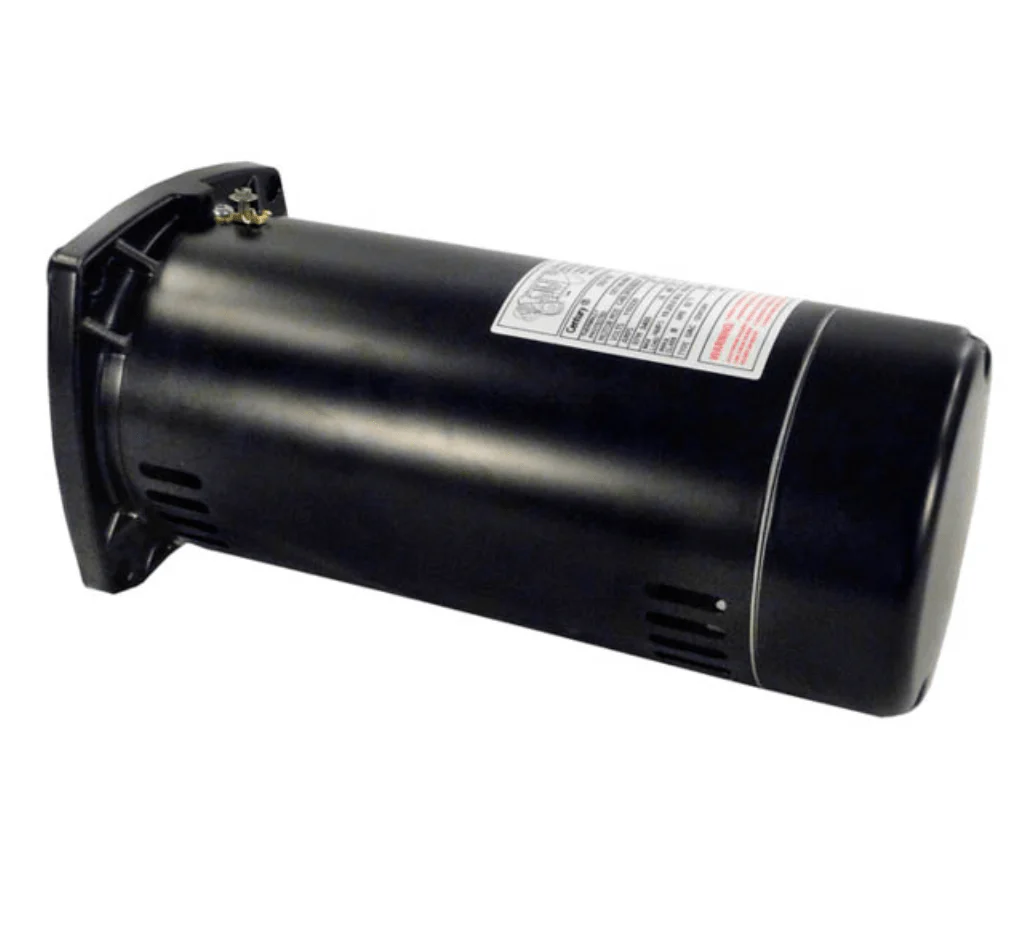

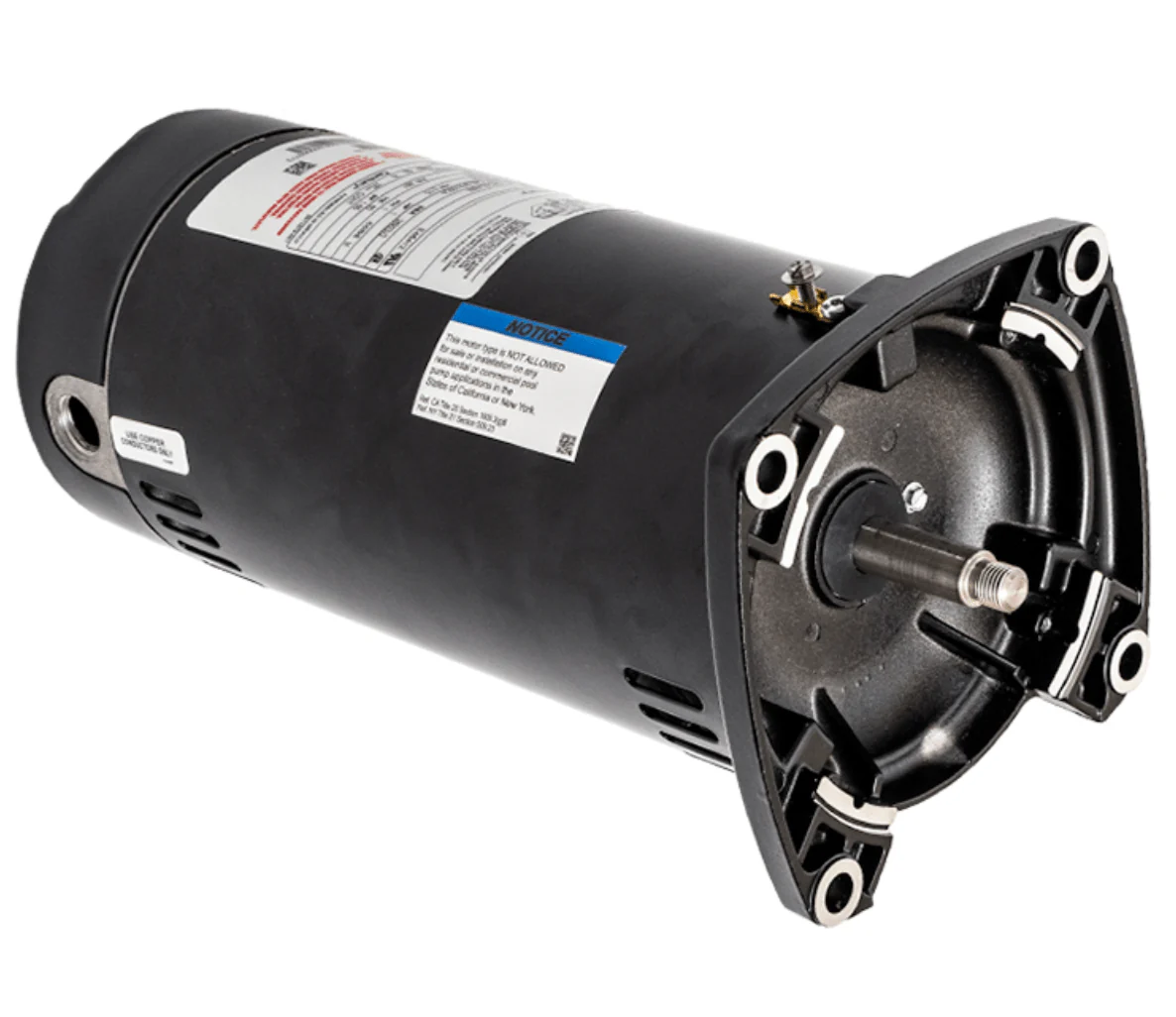

Century SQ1052 Square Flange Full-Rated Two-Compartment Pool Filter Motor; 0.5 HP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft



• 48Y Frame Threaded Shaft
• Service Factor: 1.9
• 3450 RPM, 115/230V, 13.4/6.7A
• C-Face
• Open Drip Proof
• Sealed Ball Bearings

Used On:

• Sta-Rite Dyna-Pro and Dyna-Pro E Pump Parts
• Sta-Rite Max-E Glas and Dura-Glas Full-Rated Pump Parts
• Sta-Rite Max-E Pro Series Pump Parts
• Sta-Rite Supermax Pump Parts

Specifications:

Ambient Temperature	50 deg C
Application	Many Sta-Rite®, Red Jacket, Pac Fab and American Products
Bearing Type	Sealed Ball
Brand	Regal Beloit
Diameter	5-5/8 Inch
Duty Cycle	Continuous
Efficiency Group	Standard
Enclosure Design	Open Dripproof
Finish Color	Satin Black
Flange Type	Square
Frame	48Y
Frequency Rating	60 Hz
Full Load Amps	13.4/6.7 A
HP	0.5
Insulation Class	B
Item	Two-Compartment Pool Filter Motor
Motor Design	Capacitor Start
Motor Shaft Rotation	CCWPE
Motor Thermal Protection	Auto
Mounting Type	C-Face
Number of Speed	1-Speed
Overall Length	11.50 Inch
Phase	1-Phase
RPM	3450
Service Factor	1.90
Shaft Design	Threaded
Shaft Diameter	5/8 Inch
Shaft Material	303 Stainless Steel
Standards Approvals	UL 1081 Approved, UL Recognized (E25022), CSA Certified (LR43341), Meets California Energy Commission Appliance Regulations 2008
Sub Brand	Century®
Thrust Horsepower	0.95
Type	Full-Rated, UAC
Voltage Rating	115/230 V
