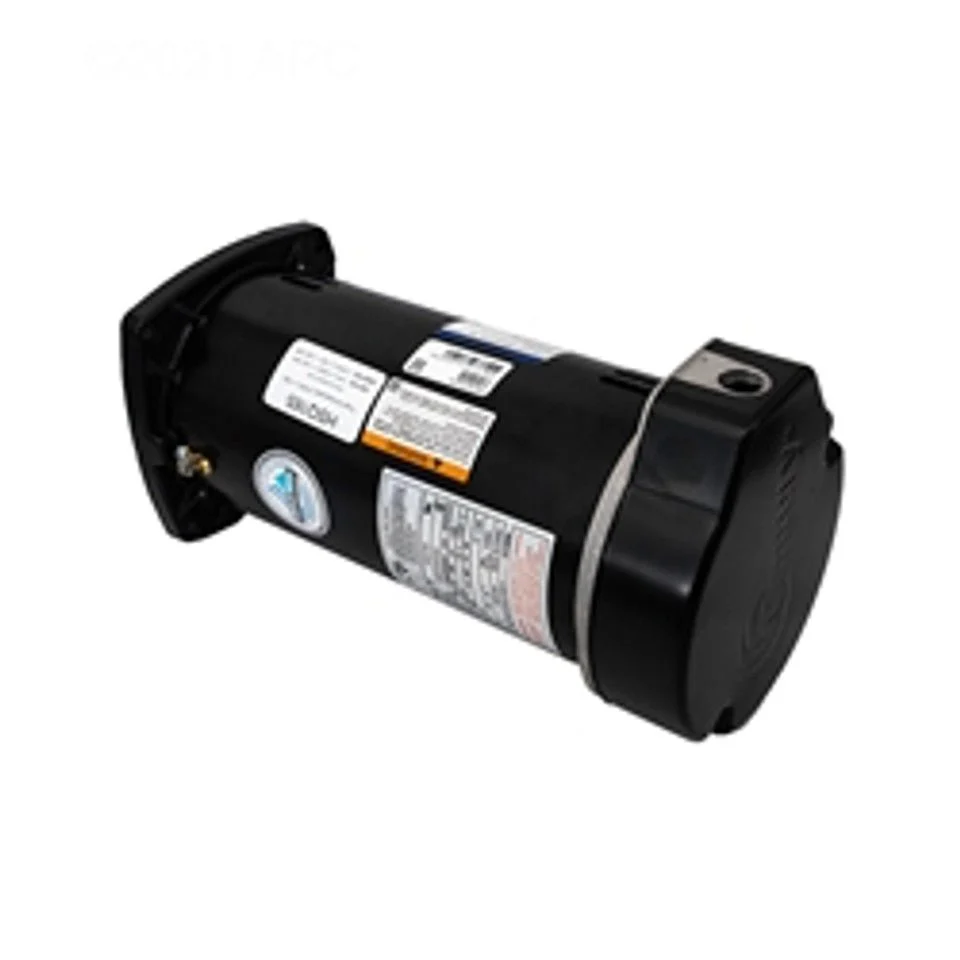

Century HST080 Centurion PRO® Pool Pump Motor, 0.80 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, 56J Frame, ODP
1 / 2
Century HST080 Centurion PRO® Pool Pump Motor, 0.80 HP, 1 Ph, 60 Hz, 230/115 V, 3600 RPM, 56J Frame, ODP
- .80 THP 115V 230V CENTURION PRO MOTOR C FLNG POOL SPA
- 56J FR 1.O SF 10.8A
- 5.4A HYBRID END FRAME PCB TERMINAL BOARD OPEN DRIPPROOF
- 3450 RPM
Century Centurion Pro HST080 Pool and Spa Pump Motor; 0.8 HP, 3450 RPM, 115/230 V, 56J, Threaded Shaft
- Professional grade
- Hybrid end frame design: The Centurion PRO's hybrid end frame design incorporates a unique BX hole placement and new terminal board design that provides installers ample room to easily feed even larger gauge wiring through with unencumbered access
- PCB terminal board: Formed from highly durable PCB material, the larger terminal board boasts a layout that is both hand- and tool-friendly
- Voltage change device: The Centurion PRO incorporates a new voltage change plug that virtually eliminates mis-wiring errors. The new voltage change plug fits specifically to one or the other clearly defined sets of angled spade terminals on the terminal b
- Definitive shaft access: The Centurion PRO design introduces a new and clearly defined shaft access path to aid installers in identifying the proper tool and location to acquire the shaft during installation or service.
- 203 Bearings both ends
Specifications:
| Ambient Temperature | 50 deg C |
| Bearing Type | Sealed Ball |
| Brand | Regal Beloit |
| Diameter | 6-1/2 Inch |
| Duty Cycle | Continuous |
| Enclosure Design | Open Dripproof |
| Frame | 56J |
| Frequency Rating | 60 Hz |
| Full Load Amps | 10.8/5.4 A |
| HP | 0.8 |
| Insulation Class | B |
| Item | Pool and Spa Pump Motor |
| Motor Design | Capacitor Start |
| Motor Shaft Rotation | CCWPE |
| Motor Thermal Protection | Auto |
| Mounting Type | C-Face |
| Number of Speed | 1-Speed |
| Overall Length | 11.84 Inch |
| Phase | 1-Phase |
| RPM | 3450 |
| Series | Centurion® Pro |
| Service Factor | 1.00 |
| Shaft Design | Threaded |
| Shaft Diameter | 5/8 Inch |
| Shaft Material | 303 Stainless Steel |
| Standards Approvals | UL Approved, CSA Certified |
| Sub Brand | Century® |
| Thrust Horsepower | 0.8 |
| Type | C |
| Voltage Rating | 115/230 V |
