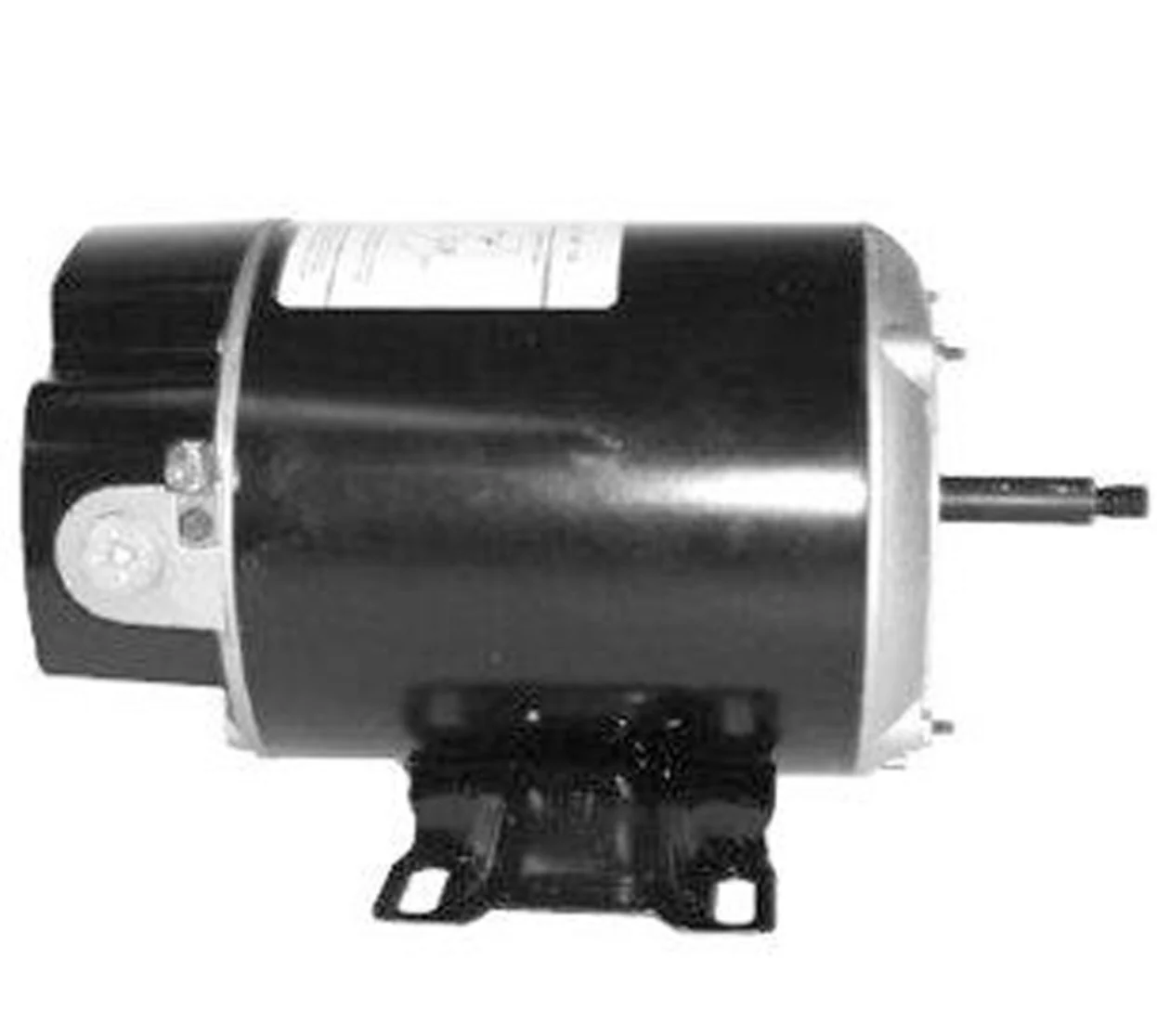

U.S. Motors EEQK500 5HP Pentair EQ Pump Motor 1.15 SF 208-230/460V
U.S. MOTORS EEQK500 Close Coupled EQ Series® ODP Replacement Pump Motor 3PH 5HP 208-230/460V
Support Documents:
- InstallGuide
- Tech Info
- Tech Info
Specifications:
- Brand: U.S. MOTORS
- Ambient Temperature: 40 degrees Celsius
- Shipping Dimensions: 23 x 14.5 x 15 inch
- Amps High Speed: 13.5
- Amps Low Speed: 6.2
- Application: Pool, Spa
- Bearing Type: Ball
- Color: Black
- Duty Cycle: Continuous
- Weight: 69.6 pounds
- Efficiency Group: Premium
- Frequency Rating (Hz): 60
- Horsepower: 5 horsepower
- Insulation Class: F
- Motor Enclosure Type: Open Drip Proof
- Motor Frame Size: 182JMZ
- Motor Speed: 1-Speed
- Phase: Three
- RPMs Max: 3600
- RPMs Min: 3600
- Service Factor: 1.15
- Shaft Design: Horizontal Footed
- Shaft Material: 303 Stainless Steel
- Voltage: 208V, 230V, 460V
- Wattage: 3.7 kilowatts
- Commercial, Residential, or Professional: Commercial
- Green or Energy Efficient Product: True
- Motor Rating: Full-Rated
- Nominal Efficiency %: 88.5
- UPC Code: 786382097073
