Built for All Climates – Coastal Tough, Inland Ready
Exclusive: Free Nationwide Shipping

The Raypak Weather King Heat Pump delivers reliable, energy-efficient heating year-round. Designed for warm, humid regions, it features corrosion-resistant components that stand up to salt air, high humidity, and temperature swings—perfect for both coastal and inland environments.

• Warranty – 2 years for labor, 7 years for parts
• Product Brochure
• User Manual

Key Features:

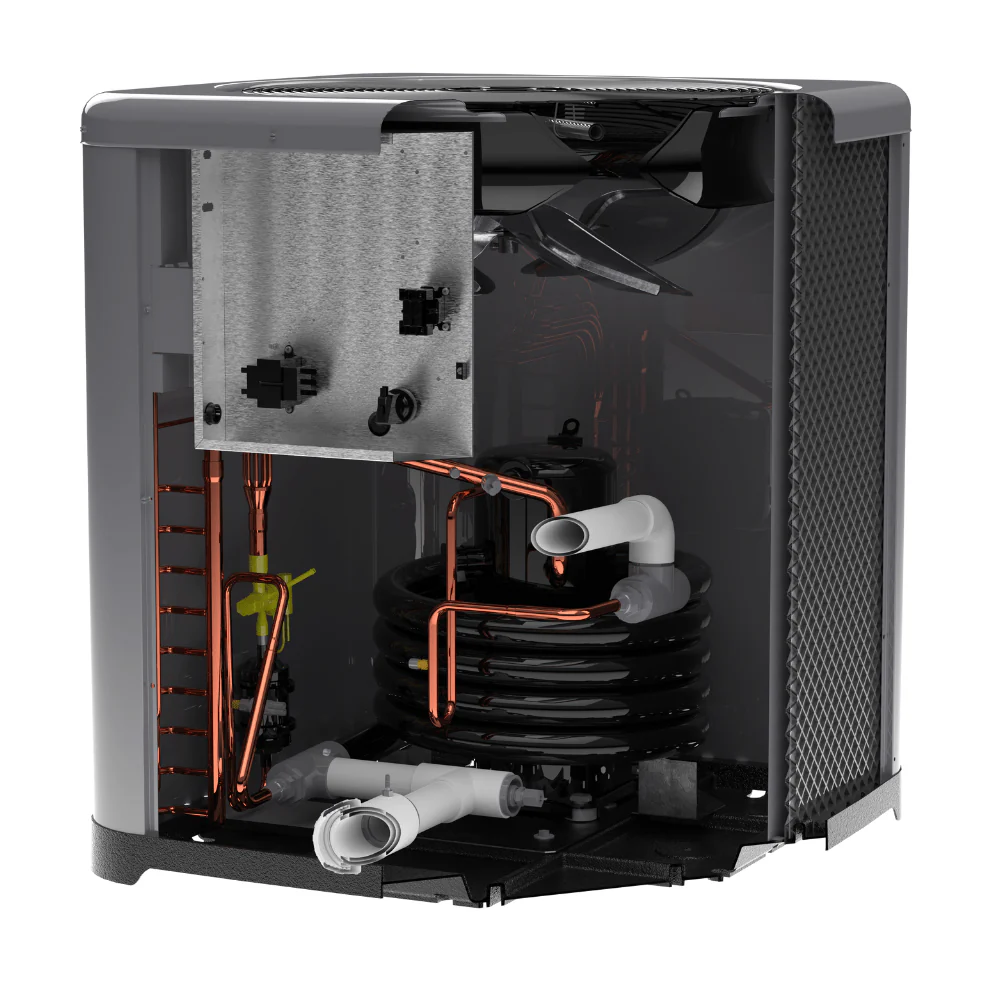

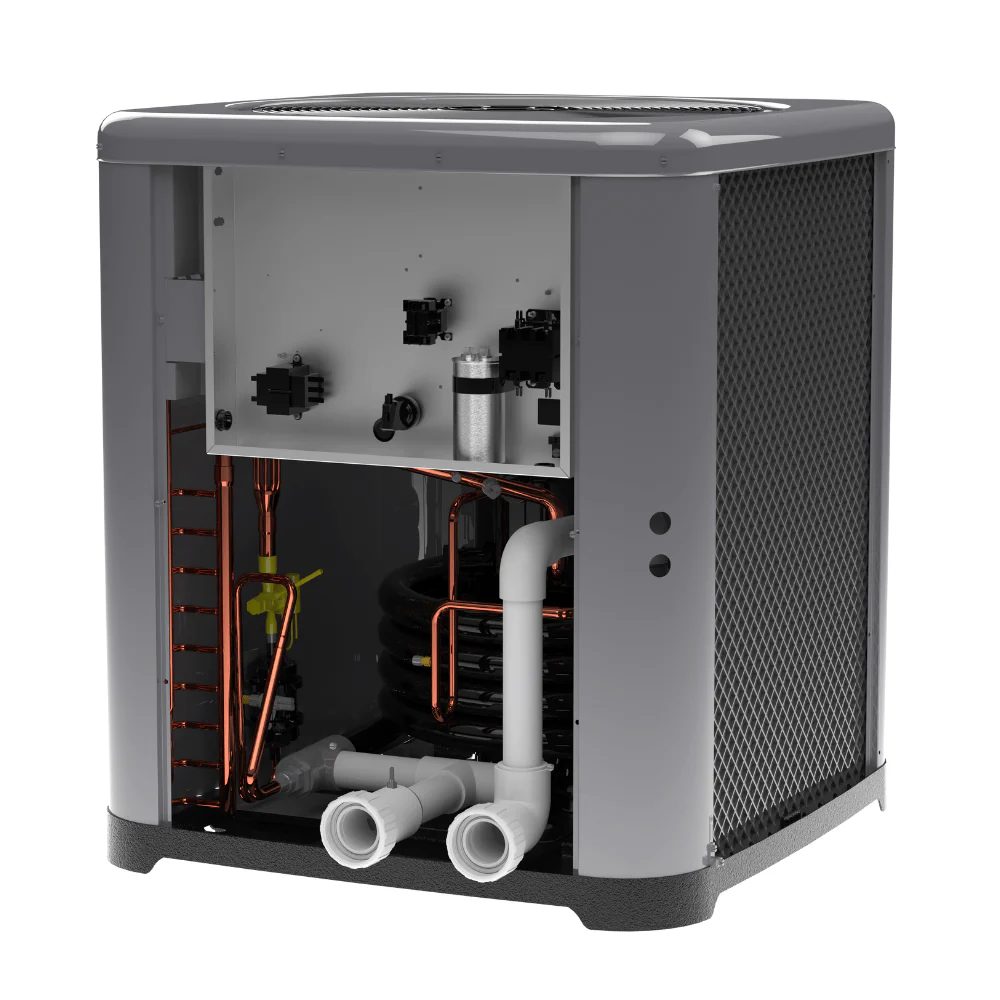

• Spiral Titanium Tube Heat Exchanger – Corrosion-resistant and efficient; reduces deposit buildup while maximizing heat transfer
• 2" Offset PVC Union Connections – Simplifies installation
• Large Air Coils – Raised lance-fin design enhances heating at lower temperatures for optimal performance
• Powder-Coated Steel Cabinet – More durable than plastic and resistant to corrosion
• Scroll Compressor – Quiet, efficient, and durable, providing improved performance over time
• Sound Isolation Pads – Reduce noise and improve drainage
• Digital Controls – Set precise temperatures for pools and spas, with energy-saving options available
• Remote Compatibility – Works with most two-wire and three-wire remote systems
• Onboard Diagnostics – Alerts homeowners to issues and provides technicians with detailed diagnostics


Specifications:

• Model Type: Heat Only
• Max. Capacity (BTUH): 118,000
• C.O.P: 6.0
• Rated Flow Capacity: (GPM) 49.5
• Indoor/Outdoor: Outdoor
• Residential/ Commercial: Residential
• Heat Exchanger: Material Titanium
• Refrigerant Type: R410A
• Heating Capacity: (kW) 34.5
• Rated Outlet: Water Temp 104F

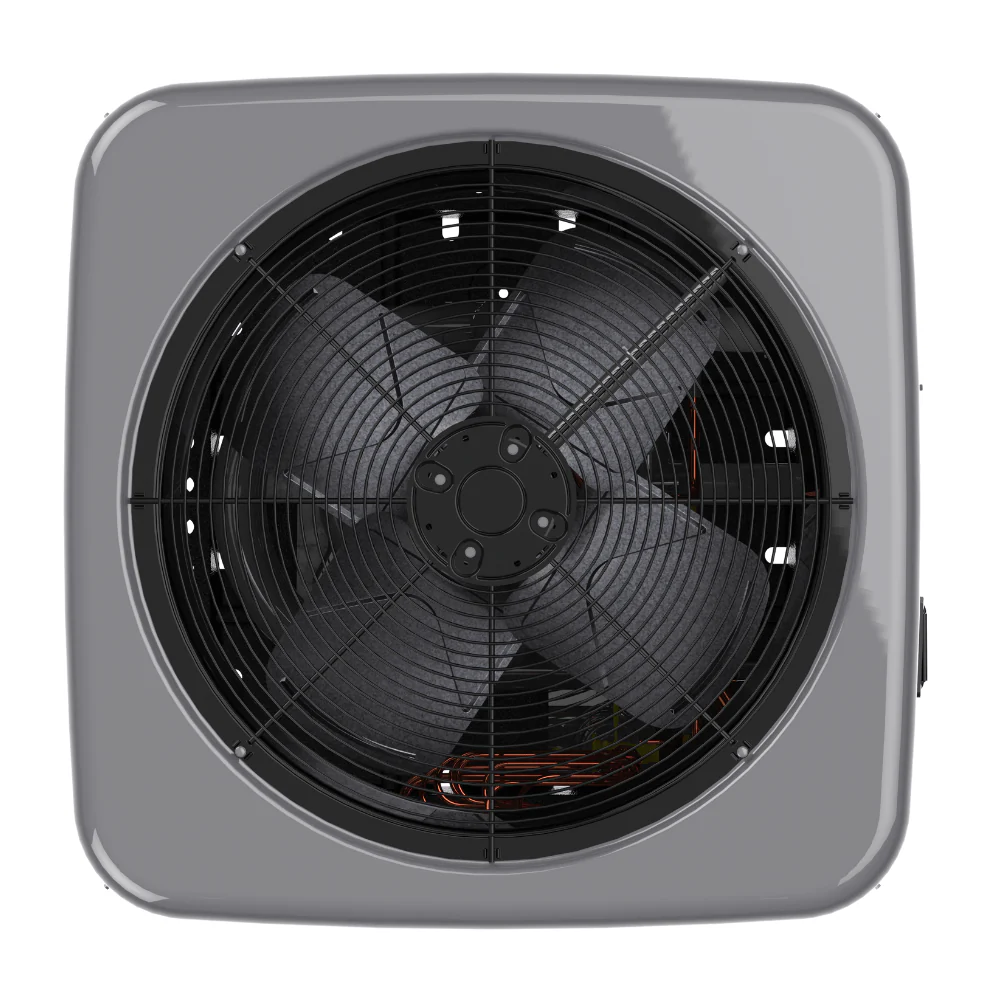

• Fan Type: 1-speed, 1-Ph/60Hz/240V motor, 4 blade fan
• 240V, 50A breaker is required
• Min. Water Supply: Flow (GPM) 30
• Max. Water Supply: Flow (GPM) 60
• Part Numbers: 6560, 6450, TWPH-6560, TWPH6560, TWPH-6560EHT01, TWPH6560EHT01, 016015, TWPH-6450EHT08, TWPH6450EHT08

Optional Water Bypass Valve Kit: Recommended for setups with single-speed pumps or flow rates above 60 GPM. Helps maximize heat pump efficiency and prevent error codes.

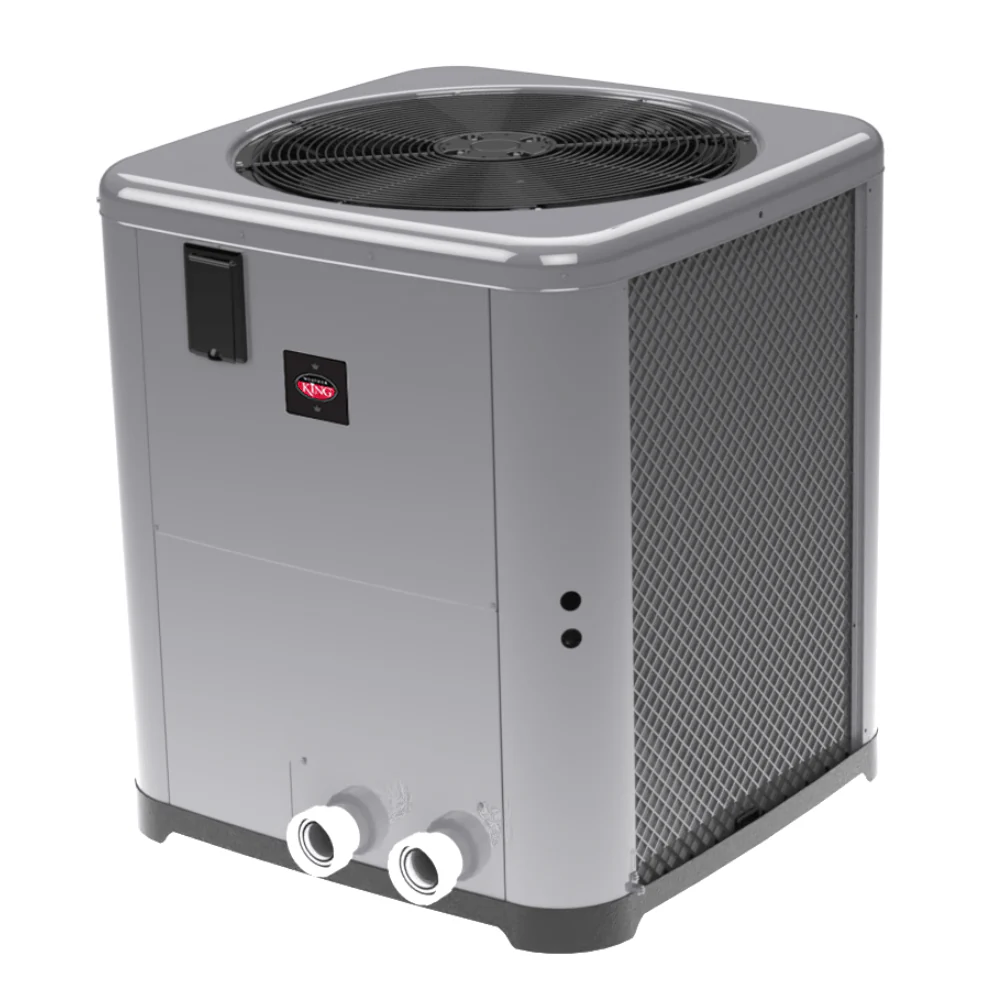

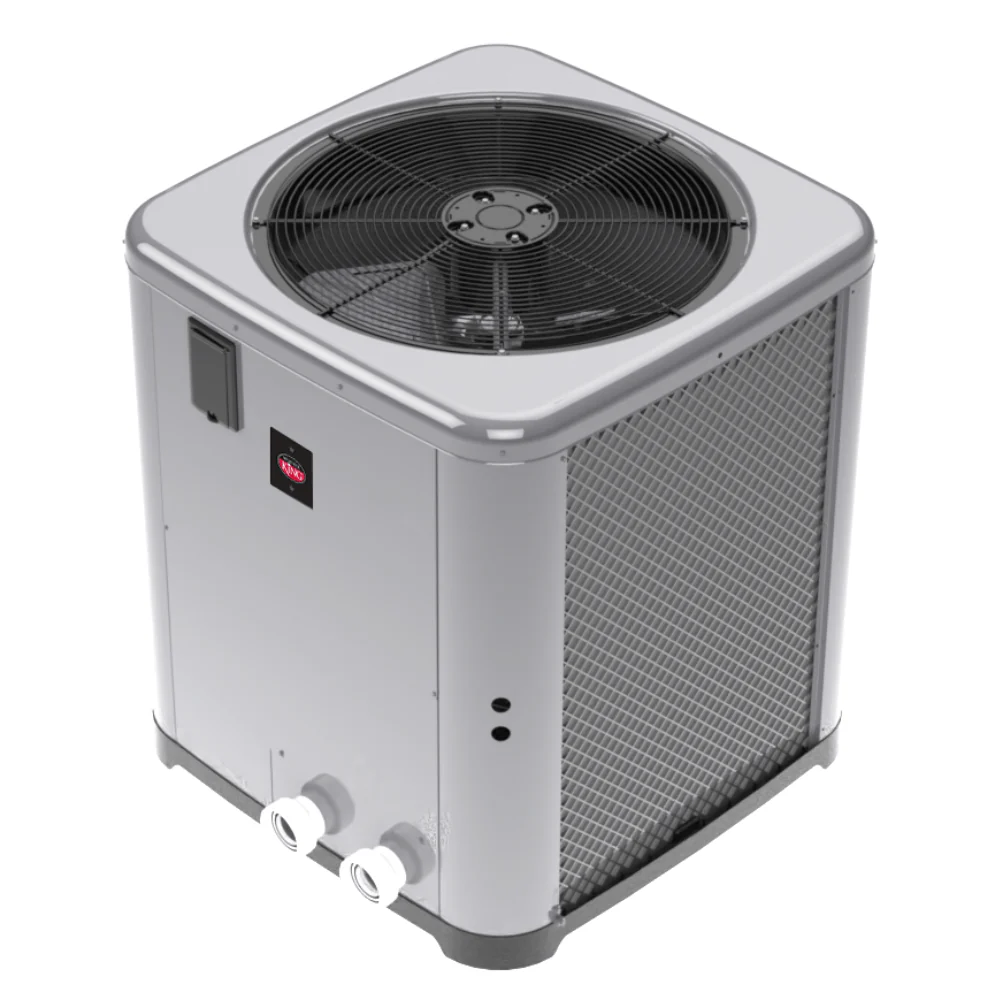

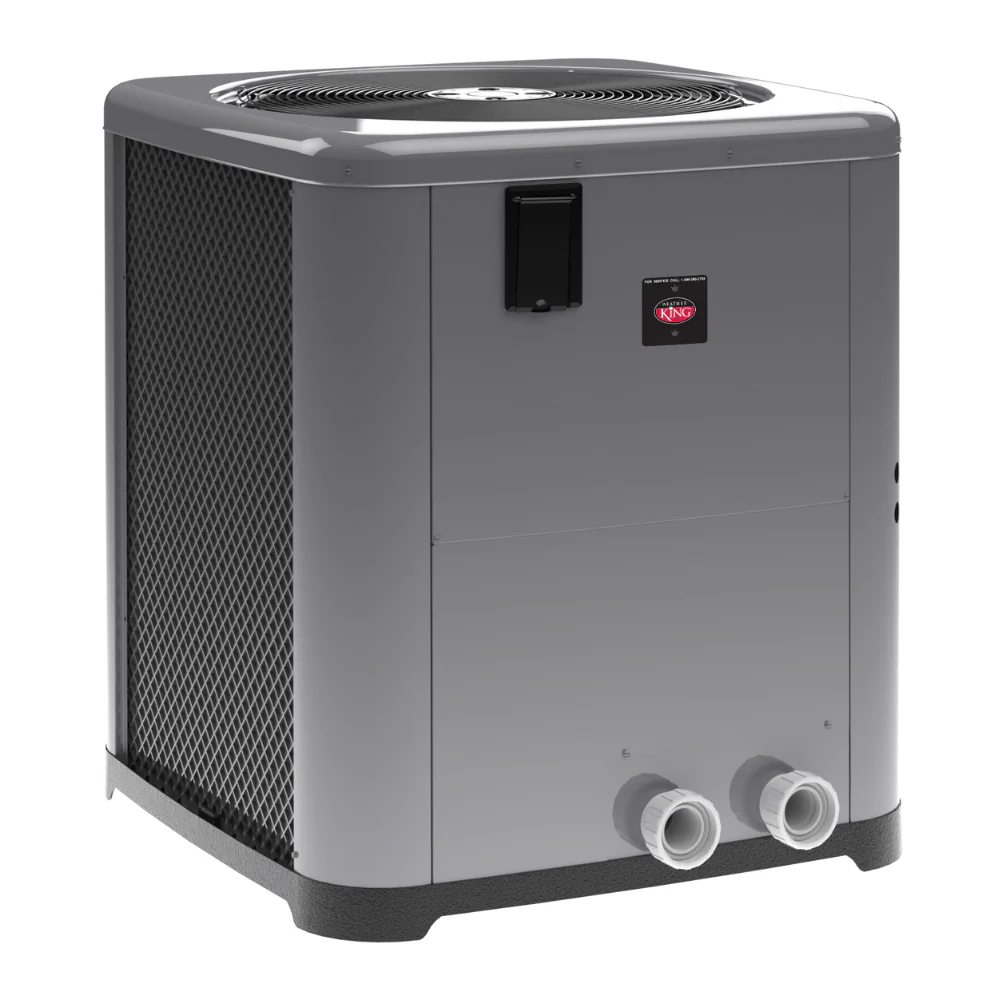

Raypak WeatherKing 118K BTU Heat Pump 6560 with Powder-Coated Steel Cabinet and Digital Controls
