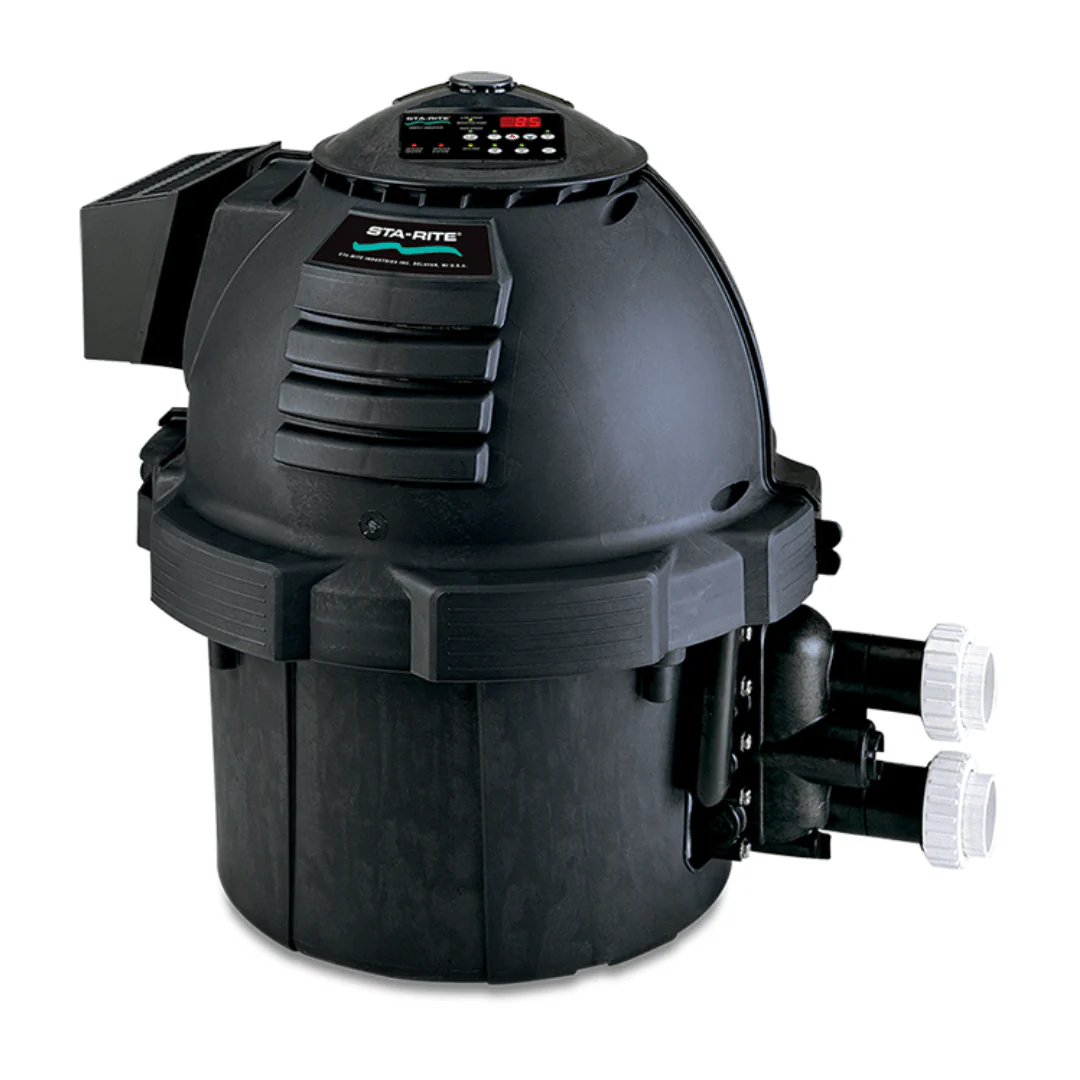

Pentair Max-E-Therm® SR200LP Heater; 200K BTU, Liquid Propane

For indoor or outdoor installations on pools and spas. Features include an LCD temperature readout with dual thermostat controls, temperature safety lockout, and a 6-position control panel. PMG burner technology requires no outdoor draft hood. Proven Dura-Glas Resin provides rust-proof construction. Heavy-duty (HD) unit with cupro-nickel exchanger for improved performance in more challenging applications, like low pH, high flow, or heavy use.

• Now, with smart connectivity and energy-saving automation, it’s easier than ever to get the pool warm and ready whenever needed.
• New automation functionality and ignition control module with flame strength sensor for always optimized performance.
• Max-E-Therm Heater is certified for low NOx emission.
• The multi-position top panel allows the digital display to be re-positioned for convenient operation.
• A tough, rustproof exterior handles the heat and weathers the elements.
• Certified for outdoor and indoor installations.
• Optional Smart Heater Bypass valve control diverts water flow when the heater isn’t needed to help save up to 35% in yearly operational costs.*

SR200LP Max-E-Therm 200 Propane Heater:

• Model: SR200LP Max-E-Therm 200 Propane
• Brand: Pentair

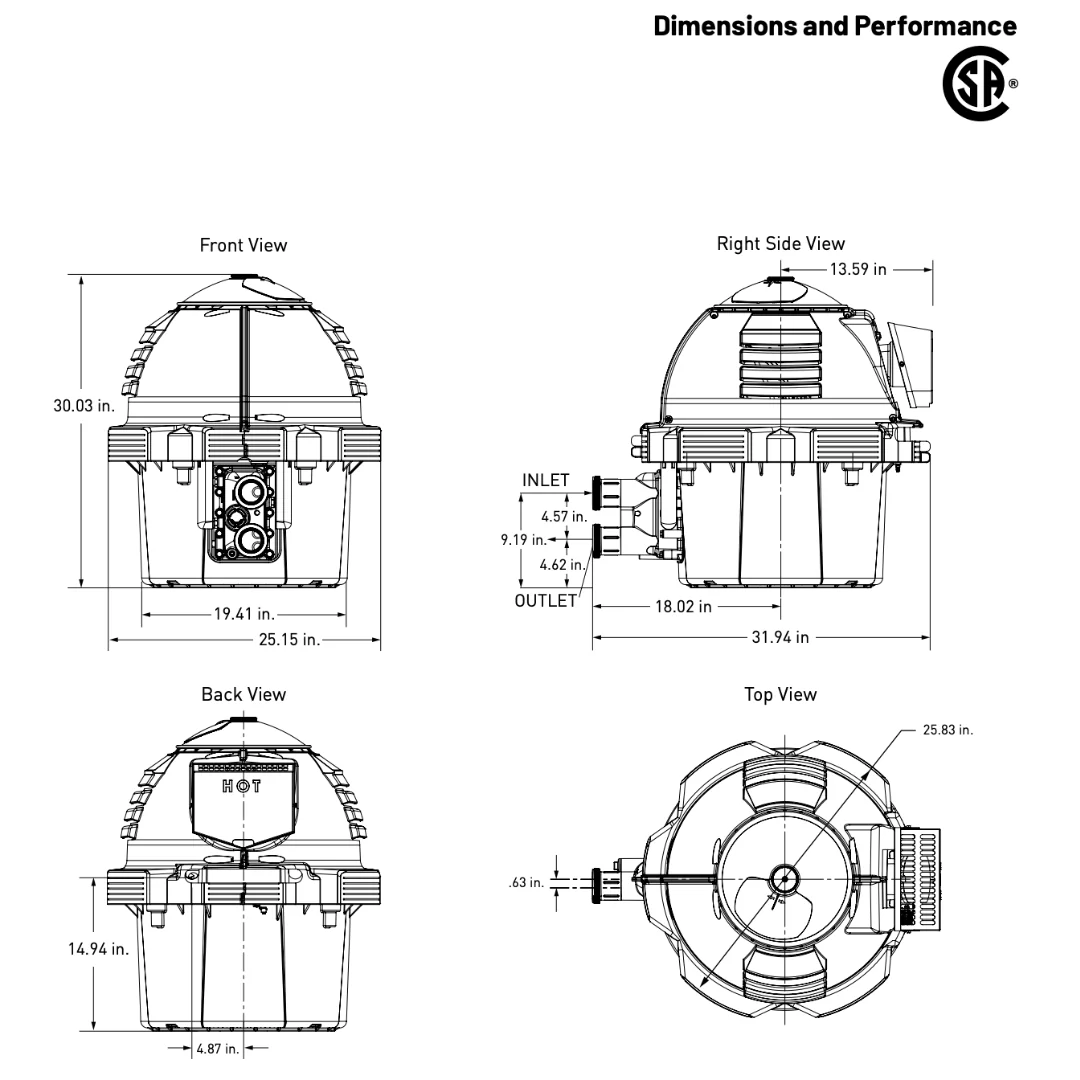

• Cabinet Depth: 31.69 inch
• Cabinet Height: 30.03 inch
• Cabinet Width: 25.15 inch
• Commercial, Residential, or Professional: Residential
• Control Type: Digital
• Weight: 131 pounds
• Flow Rate Max: 120 gal/min
• Flow Rate Min: 20 gal/min
• Frequency Rating (Hz): 60
• Fuel Type: Propane
• Green or Energy Efficient Product: True
• Phase: Single
• Product Depth: 30 inch
• Product Height: 26 inch
• Product Width: 26 inch
• Standards Approvals: CSA Certified
• Voltage: 120V, 240V
• BTU Input: 200,000 British thermal unit
• UPC Code: 022315208315
• Warranty: 2-year warranty with professional installation

Support Documents:
