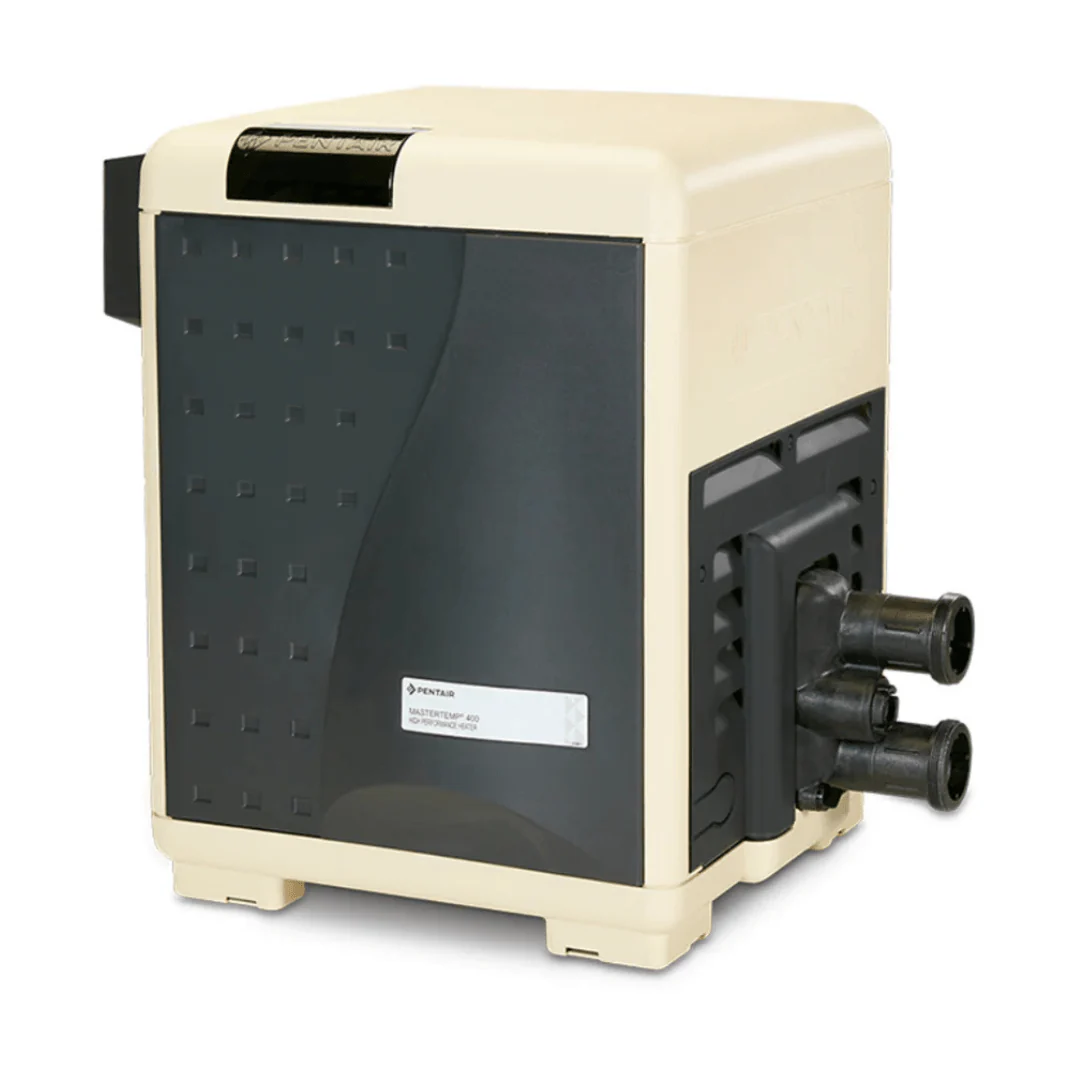

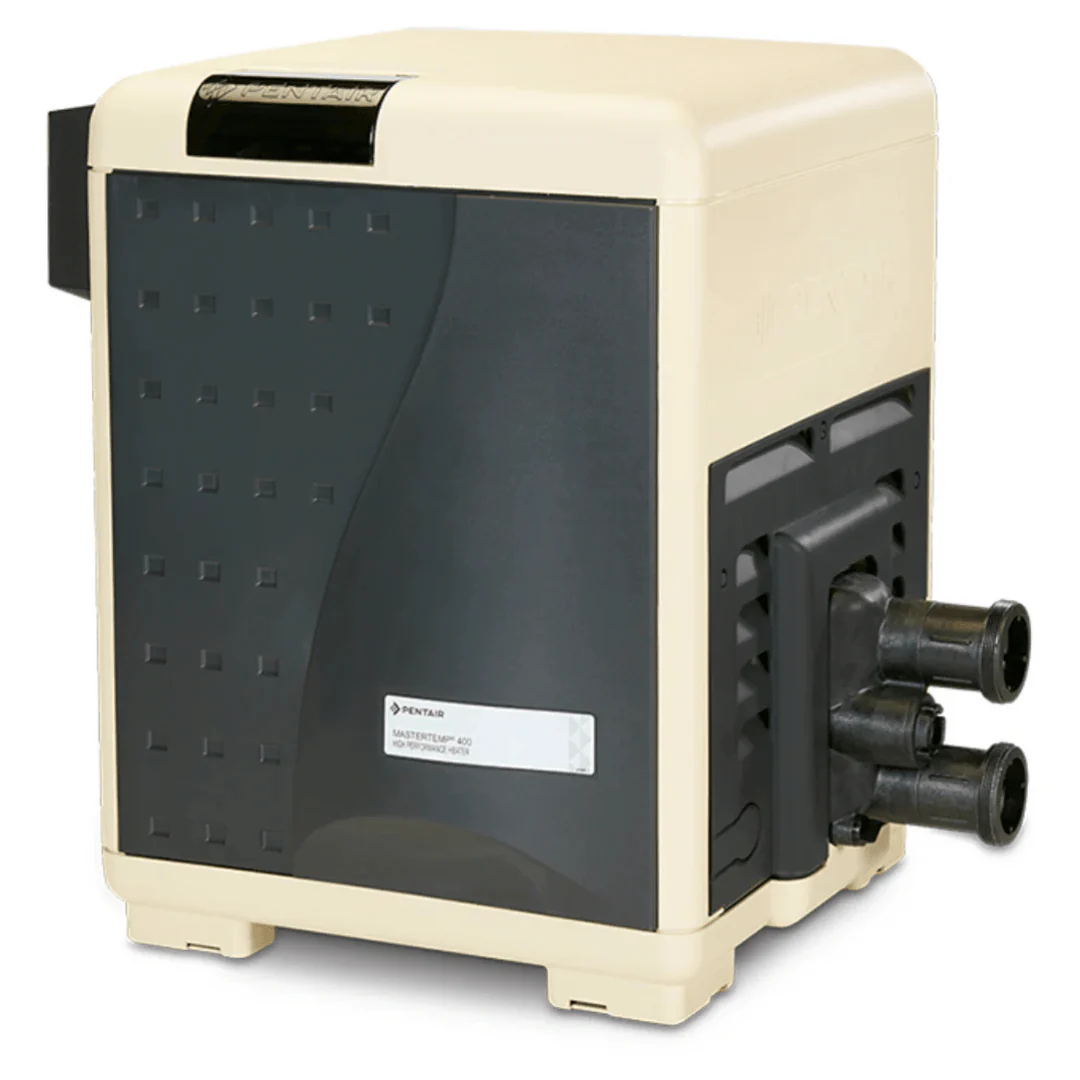

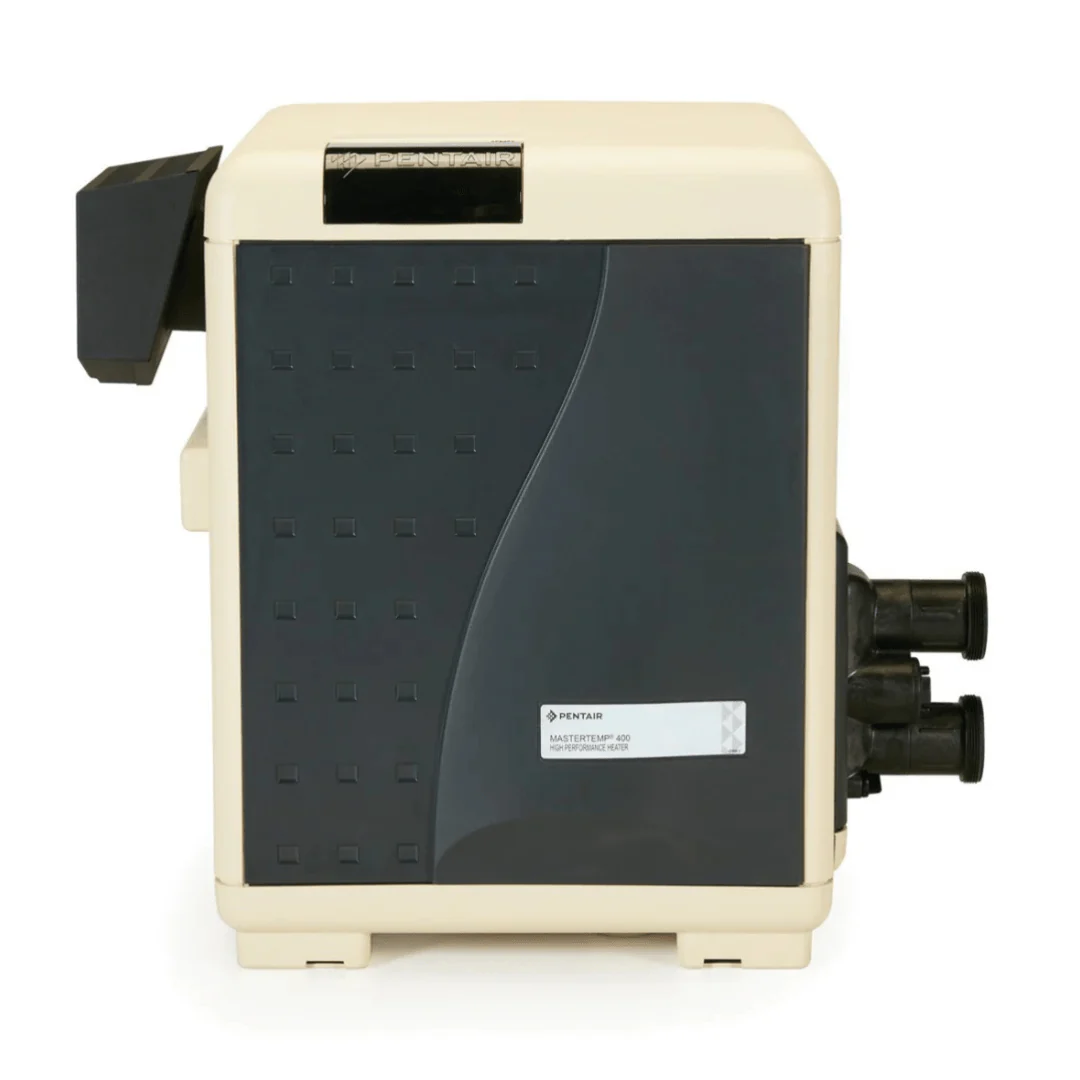

Pentair MasterTemp® 460806 Low NOx Pool and Spa Heater; 250HD BTU, Natural Gas, Cupro-Nickel Tubing

MASTERTEMP® HD Heavy Duty Heater: The MasterTemp HD is Pentair’s solution for those seeking maximum durability in various conditions and applications. Featuring a cupro-nickel heat exchanger, this heater is highly resistant to harsh environments, including low pH levels, high flow rates, and heavy usage. For those who demand the best from their pool heater, the MasterTemp HD is the ideal choice.

Specifications:

• Brand: Pentair
• Application: Indoor, Outdoor, Pool, Spa
• Shipping Dimensions: 36 x 25 x 30 inch
• Commercial, Residential, or Professional: Residential
• Frequency Rating (Hz): 60
• Fuel Type: Natural Gas
• Phase: Single
• Product Weight: 136 pounds
• Standards Approvals: CSA Certified
• Voltage: 120V, 240V
• BTU Input: 250,000 British thermal units
• Cabinet Depth: 32.61 inches
• Cabinet Height: 28.15 inches
• Cabinet Width: 23.02 inches
• Control Type: Digital
• Flow Rate Max: 120 gal/min
• Flow Rate Min: 120 gal/min
• Gas Connection: 0.75 inch
• Green or Energy-Efficient Product: True
• Product Depth: 28.2 inches
• Product Height: 21 inches
• Product Width: 23 inches
• Tubing Material: Cupro Nickel
• UPC Code: 788379745486
• Warranty: 2 years

Support Documents:

• Brochure & Brochure
• Install Guide
• Tech Info
• Auto By-Pass Valve Kit Instructions 462048
• 462048 MasterTemp and Max-E-Therm Smart Bypass Valve Kit
