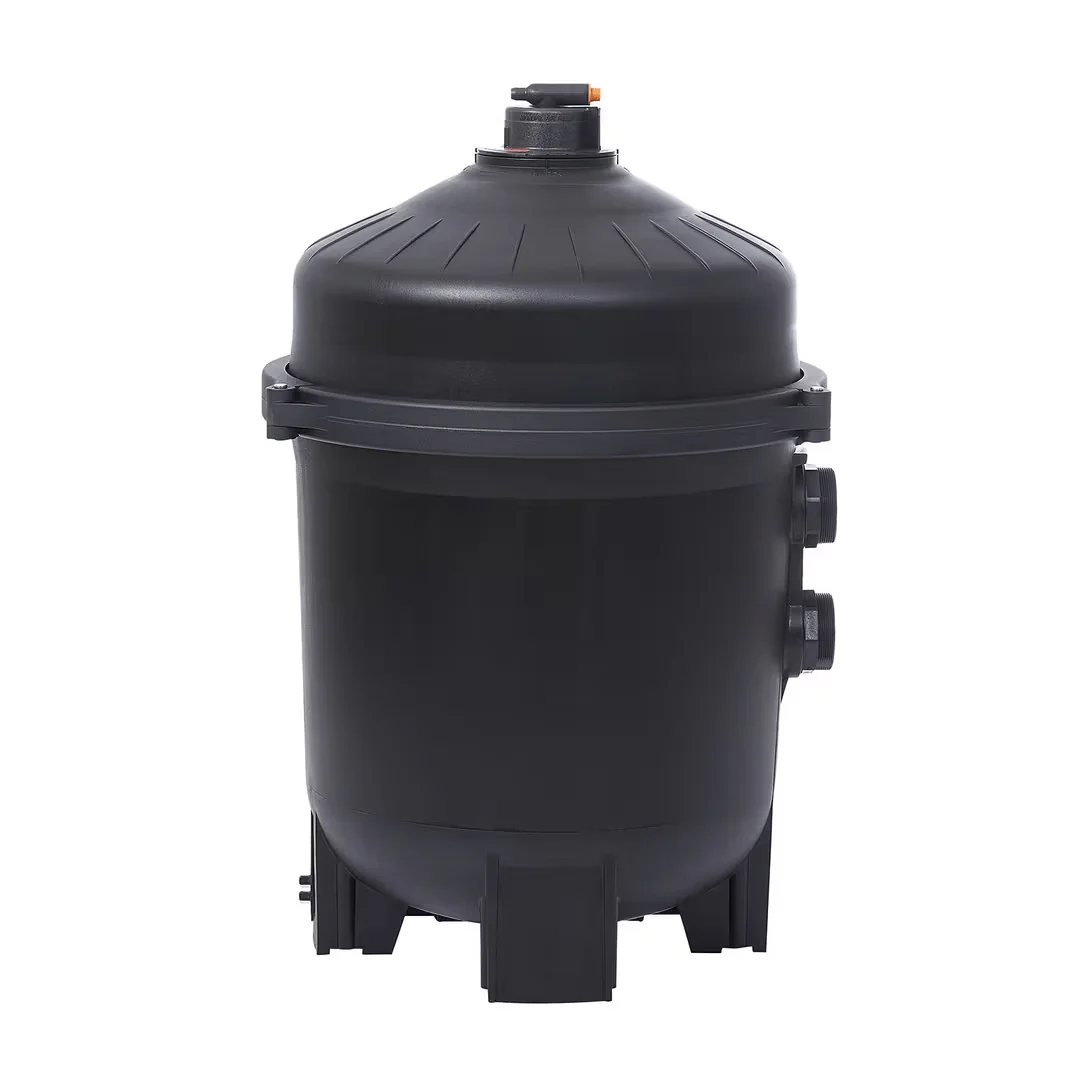

Hayward W3DE3620 36 Sq Ft ProGrid Vertical Grid DE Pool Filter
The Hayward W3DE3620 Pro-Grid 36 sq. ft. D.E. Pool Filter offers top-tier filtration, capturing particles as small as 5 microns (the size of a red blood cell). It uses 7 full and 1 partial grid coated in diatomaceous earth. The durable tank is made of glass-reinforced thermoplastic and includes a manual air relief valve to prevent air buildup.
A 1-1/2" drain ensures quick drainage, and the one-piece flange clamp secures the tank. The filter requires 50.1" vertical clearance for removal, and backwashing before removing the top lid is recommended to clean out the DE powder.
ProGrid filters ensure excellent water clarity, efficient flow, and large cleaning capacity, offering a user-friendly design for pools and spas of all sizes.
- Filter tanks are made from the most durable materials to meet the demands of the toughest applications and environmental conditions
- High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever
- Heavy-duty, tamper-proof, one-piece flange clamp securely fastens tank top and bottom and allows quick access to all internal components
-
Valve sold separately.Ā Compatible valves:
- SP0740DE (Selecta-Flo 2" SKT)
- SP0710XR50 (Vari-Flo 1 1/2" NPT)
- SP0715XR50 (Vari-Flo 2" NPT - Optional)
- SP0410X5025 (Slide Valve 2" SKT - Optional)
Specifications:
- Brand: Hayward
- Part Number: ProGridĀ® 36 Sq Ft W3DE3620 DE3620
- UPC: 0610377387873 / 610377387873
- Cartridge: No
- Design Flow Rate: 90
- Effective Filtration Area: 36 SQFT
- Filter Type: Diatomaceous Earth D.E. DE
- Pool Type: In Ground
- Pressure Gauge: No
- Product Dimensions: 34.5 " x 24 " x 24 "
- Product Height: 34.5 in
- Product Length: 24 in
- Product Weight: 65 lb
- Product Width: 24 in
- Public Design Flow Rate: 72
- Residential Design Flow Rate: 90
- Series Filters: ProGrid
- Shipping Dimensions: 35.7 " x 24.6 " x 23.1 "
- Shipping Height: 35.7 in
- Shipping Length: 23.1 in
- Shipping Weight: 66 lb
- Shipping Width: 24.6 in
- Replacement Filter: DEX3600DC Filter Element Cluster Assembly (Complete set of elements, collectors, locators, manifold, etc.)
Support Documents:Ā
- Owner's Manual
- Product Sell Sheet
