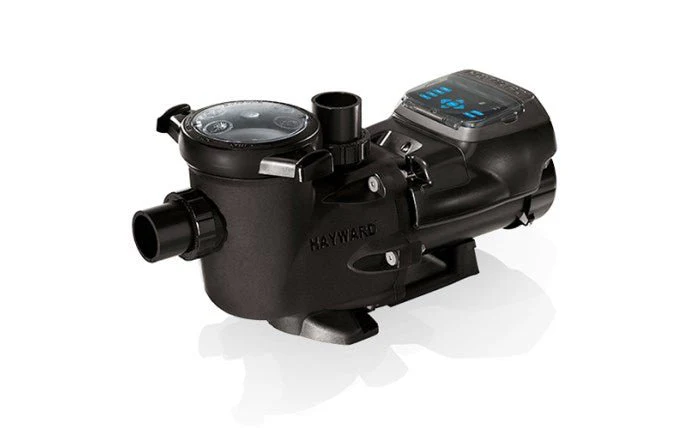

Hayward TriStar® HCP2500VSP VS C HCP 2500 Series Pump 230V

The HCP 2000 features the industry’s most energy-efficient hydraulics, providing unmatched performance in semi-commercial applications. Easy to install, service, and maintain, TriStar outperforms the competition in terms of flow, efficiency, and value. It’s the first to feature a large, ribless strainer basket

• 2" x 2 1/2" union connections make installation and servicing fast and easy
• Self-priming (suction lift up to 10' above water level)
• Elevated base ensures better ventilation and protection from flooding
• Ribless basket design ensures easy debris removal.
• Extra leaf-holding capacity extends time between cleanings
• Tri-Lock strainer cover design seals with less than a quarter turn
• 3-year limited warranty
• NSF/ANSI Standard 50 Certified

Specifications:

• Brand: Hayward
• DOE Compliant: Yes
• GTIN: 610377388344
• Labor Warranty: 3-year
• Motor Type: TEFC
• Parts Warranty: 3-year
• Phase Single Phase
• Quick Clean Button: No
• Remote Mount Display: No
• Rotatable Display: No
• Shipping Dimensions: 16 " x 13.6 " x 30.1 "
• Shipping Height: 16 in
• Shipping Length: 30.1 in
• Shipping Weight: 63 lb
• Shipping Width: 13.6 in
• Total HP: 2.7
• Twist Lock: No
• Voltage at 60 Hz: 240/230/115
• WEF: 7.3 / 10.1

Support Documents:

• Commercial HCP2500 Sell Sheet
• Hayward VSP Quick Reference Guide
• 2.70 THP VS Pump Family Owner's Manual
