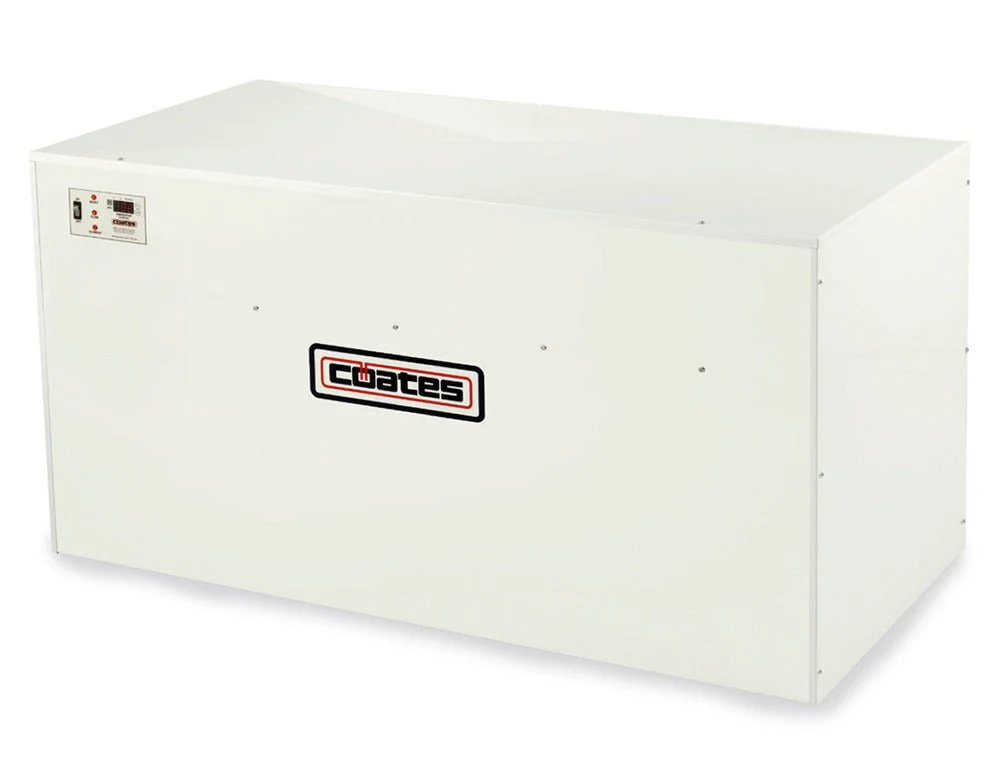

Coates PHS-20 (180kW–300kW)

Designed for high-capacity commercial pool installations, Coates heaters incorporate design features that increase service life, dependability, and provide ease of servicing. Corrosion-resistant all stainless steel tank surfaces and low-watt-density Incoloy elements mounted on four-bolt stainless steel flanges provide long, trouble-free service life.

All electrical components are easily accessible under the conveniently hinged cover. Terminal blocks are provided for simplified power supply wiring.

Features:

• Stainless steel tank
• 35psi design pressure – ASME “U” stamp
• Incoloy heating elements
• Digital thermostat
• Manual reset high temp limit
• 240V control circuit
• Lighted “on/off” switch
• Element & flow “on” lights
• Pressure relief valve* (separate installation required)
• Flow switch* (separate installation required)
• Professional installation required (not included)

Technical Specifications:

• 54″L x 26″W x 28″H (425 lbs)
• UL Listed for Indoor Installation
• ASME Canadian Registration

*Please note: This heater is built to order and has a 14–18 week lead time.
