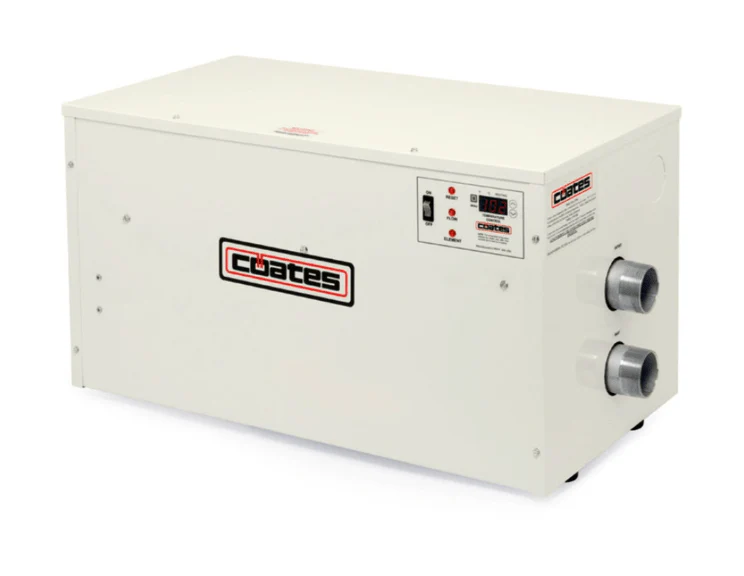

Coates PHS Series Electric Pool & Spa Heater 36KW, 208V, 100A, Three Phase, 32036PHS-3

The Coates PHS Series pool and spa heaters feature a flow switch to prevent operation when there is no water flow. An all stainless steel tank for long life and corrosion resistance is also standard. These 36-57 kW heaters include a digital thermostat for more precise control of pool water temperature.

• Incoloy heating elements
• Digital thermostat
• Manual reset high temp limit
• Flow switch
• 2″ male NPT connections
• Heavy-duty contactors
• Stainless steel tank
• Element, flow, and high temp “on” lights
• Element fusing on units rated over 48 amps

Technical Data:

• 28”L x 15”W x 15”H (100 lbs)
• Min Flow Rate: 20 GPM
• Max Flow Rate: 80 GPM
• Three phase
• UL Listed for indoor/outdoor installation
