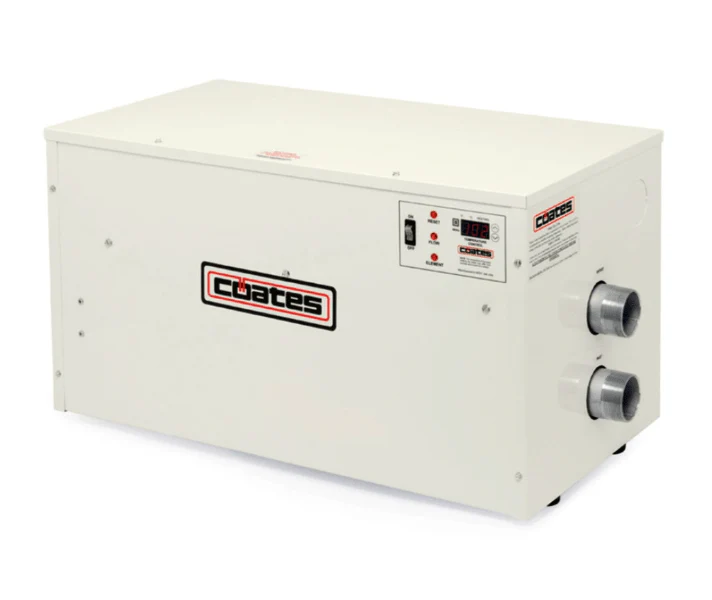

Coates CPH Series Electric Pool Heater 30KW, 208V, 84A, Three Phase, 32030CPH

Note: Most Coates heaters ship within 2-5 business days.

The Coates CPH Series  24-30 kW heaters include a digital thermostat for more precise control of pool water temperature.

Features

• Incoloy heating elements
• Digital thermostat
• Manual reset high temp limit
• Flow switch
• 1-1/2″ male NPT connections
• Stainless steel tank
• Heavy duty contactors
• Element, flow and high temp “on” lights
• Element fusing on units rated over 48 amps

Technical Data

• 24”L x 12”W x 13”H (68 lbs)
• Min Flow Rate: 20 GPM
• Max Flow Rate: 80 GPM
• Three phase
• UL Listed for indoor/outdoor installation

Specifications

Brand	Coates
Cabinet Depth	13 Inch
Cabinet Height	24 Inch
Cabinet Width	12 Inch
Flow Rate	20 - 80 gpm
Heat Output	30 kW
Item	Electric Heater
Maximum Breaker Size	110 A
Phase	3-Phase
Series	CPH
Voltage Rating	208 V
Water Connection	1-1/2 Inch MNPT
Wire Size	2 AWG
