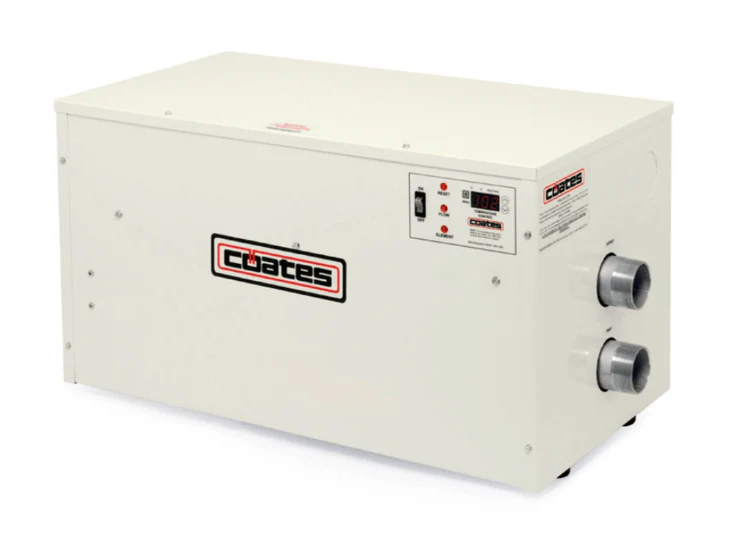

Coates PHS Series Electric Pool & Spa Heater 45KW, 240V, 188A, Single Phase, 12445PHS

The Coates PHS Series pool and spa heaters feature a flow switch to prevent operation when there is no water flow. An all stainless steel tank for long life and corrosion resistance is also standard. These 36-57 kW heaters include a digital thermostat for more precise control of pool water temperature.

• Incoloy heating elements
• Digital thermostat
• Manual reset high temp limit
• Flow switch
• 2″ male NPT connections
• Heavy-duty contactors
• Stainless steel tank
• Element, flow, and high temp “on” lights
• Element fusing on units rated over 48 amps

Technical Data:

• 28”L x 15”W x 15”H (100 lbs)
• Min Flow Rate: 20 GPM
• Max Flow Rate: 80 GPM
• Single phase
• UL Listed for indoor/outdoor installation

Specifications:

Amperage Draw	188 A
Brand	Coates
Cabinet Depth	15 Inch
Cabinet Height	28 Inch
Cabinet Width	15 Inch
Flow Rate	20 - 80 gpm
Heat Output	45 kW
Item	Electric Heater
Maximum Breaker Size	250 A
Phase	1-Phase
Series	PHS
Voltage Rating	240 V
Water Connection	2 Inch MNPT
Wire Size	250 AWG
