The CMI 3' x 100' Copper Equipotential Bonding Grid Kit (EB3100) ensures safety by providing proper bonding to meet Utility Industry standards and NEC® Section 680.26(C) compliance. Designed for use under paved surfaces, it extends 3 feet from the pool’s inside edge to protect against lethal stray voltage.

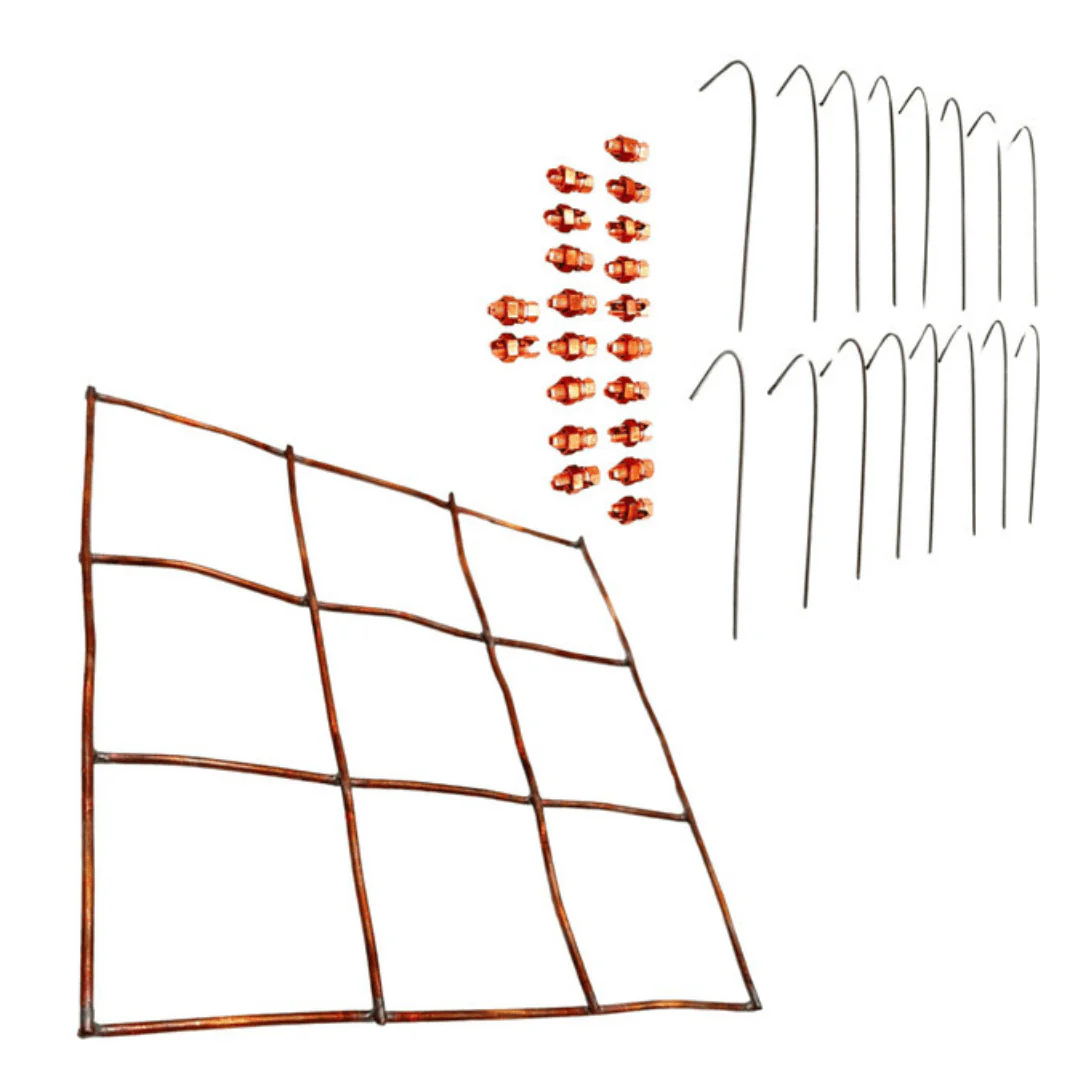

This kit includes:

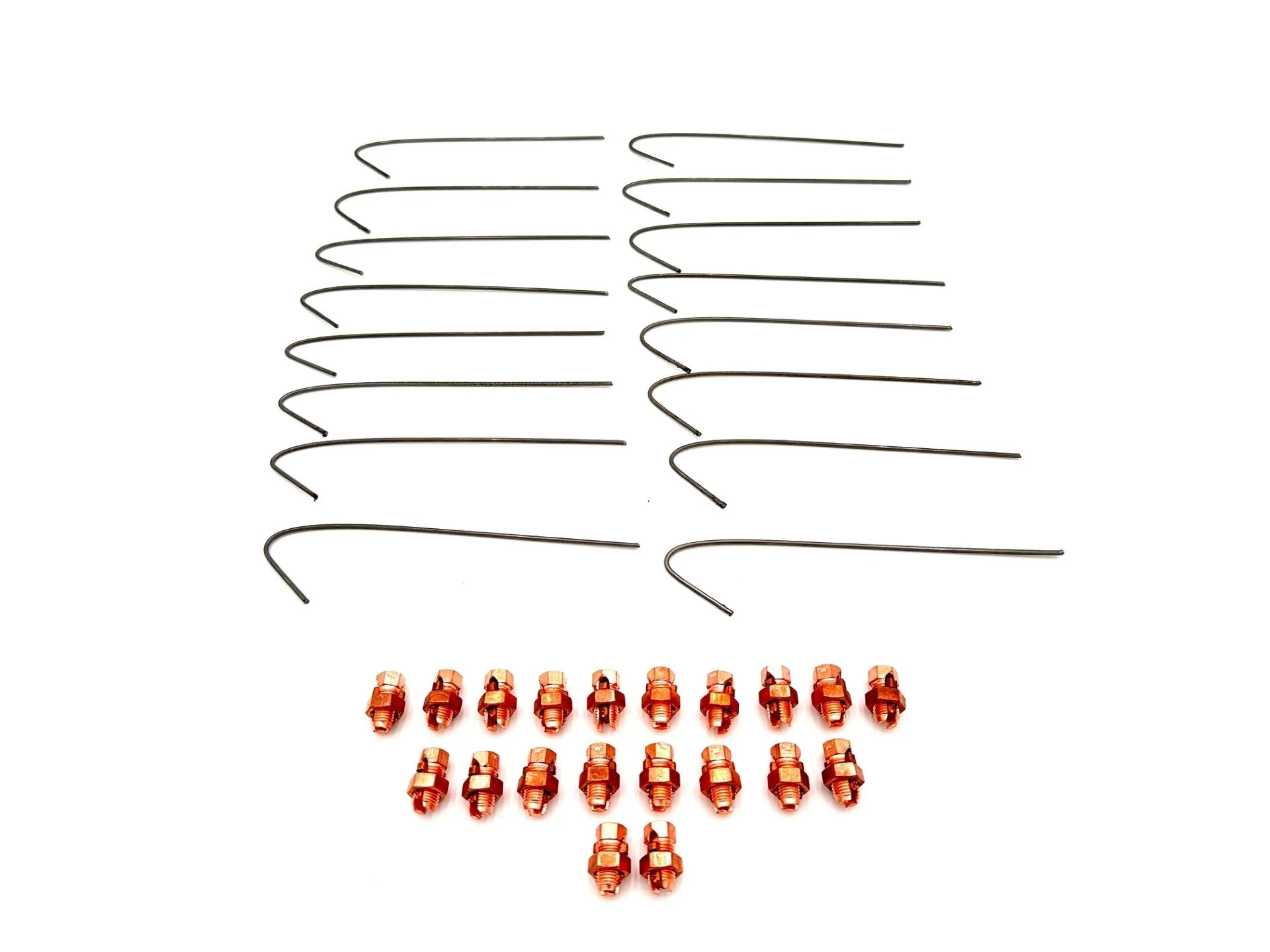

• UL-listed JRD rebar clamps for #8 bond wires

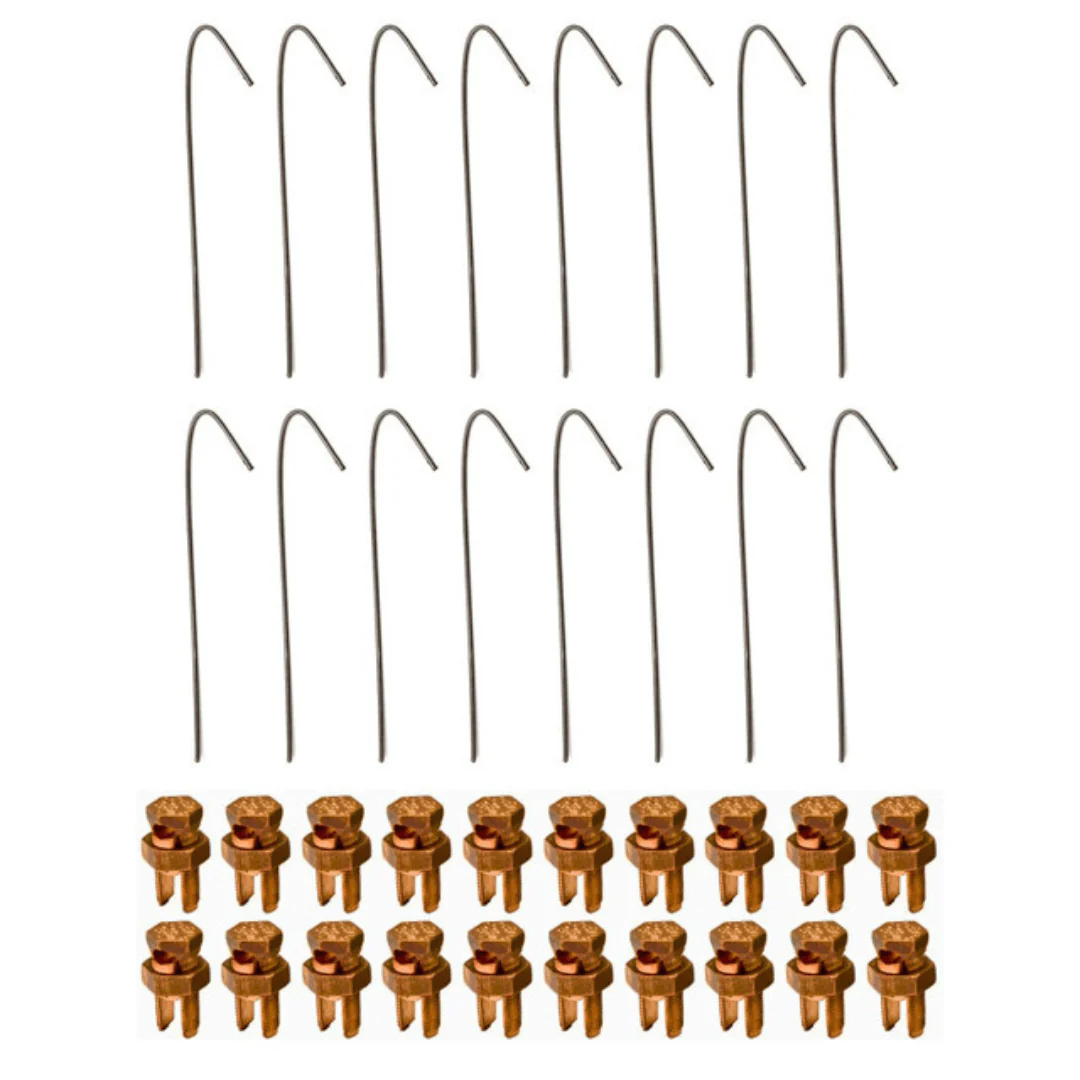

• 17 #8 split bolts for corner connections and rebar clamps
• 16 durable metal stakes for secure placement

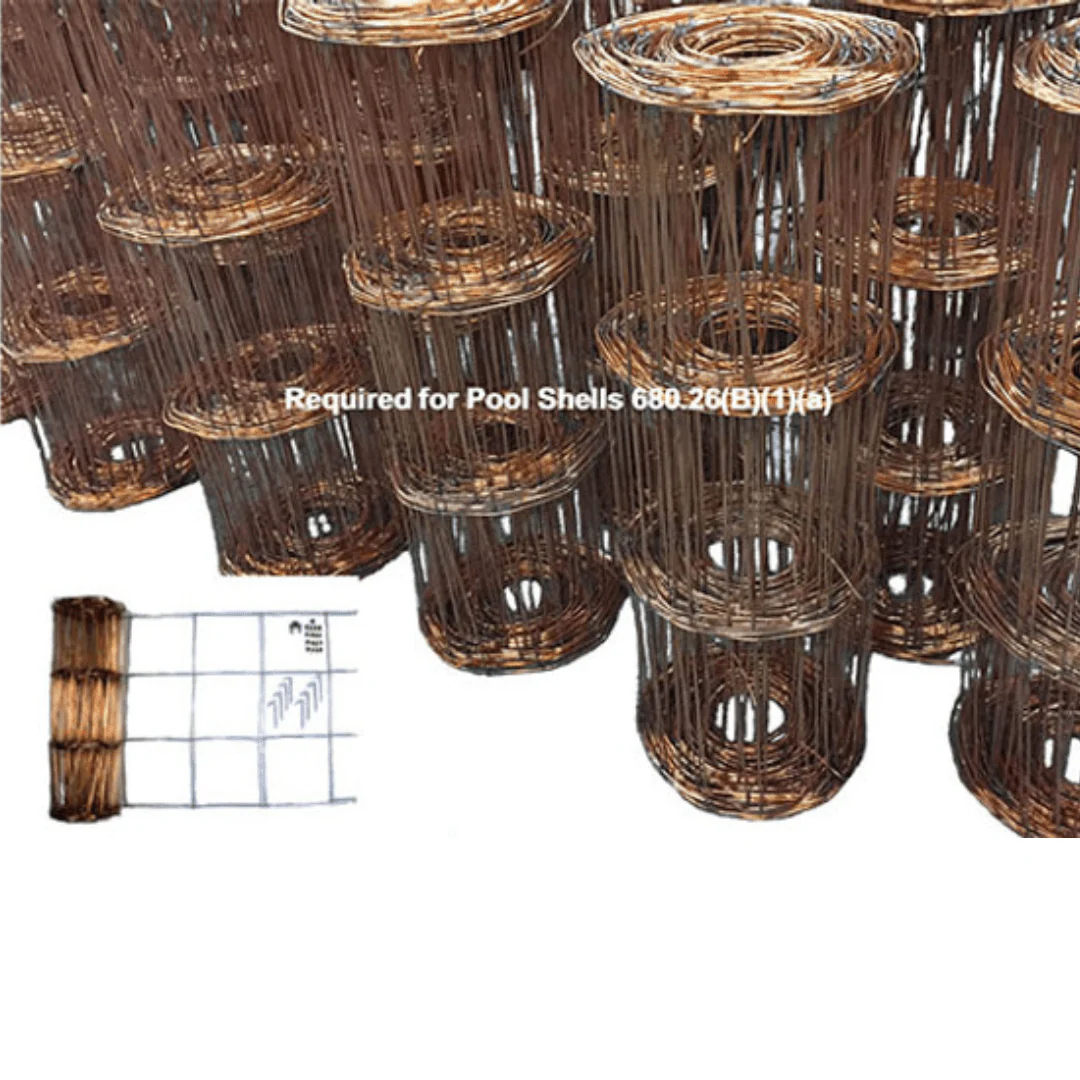

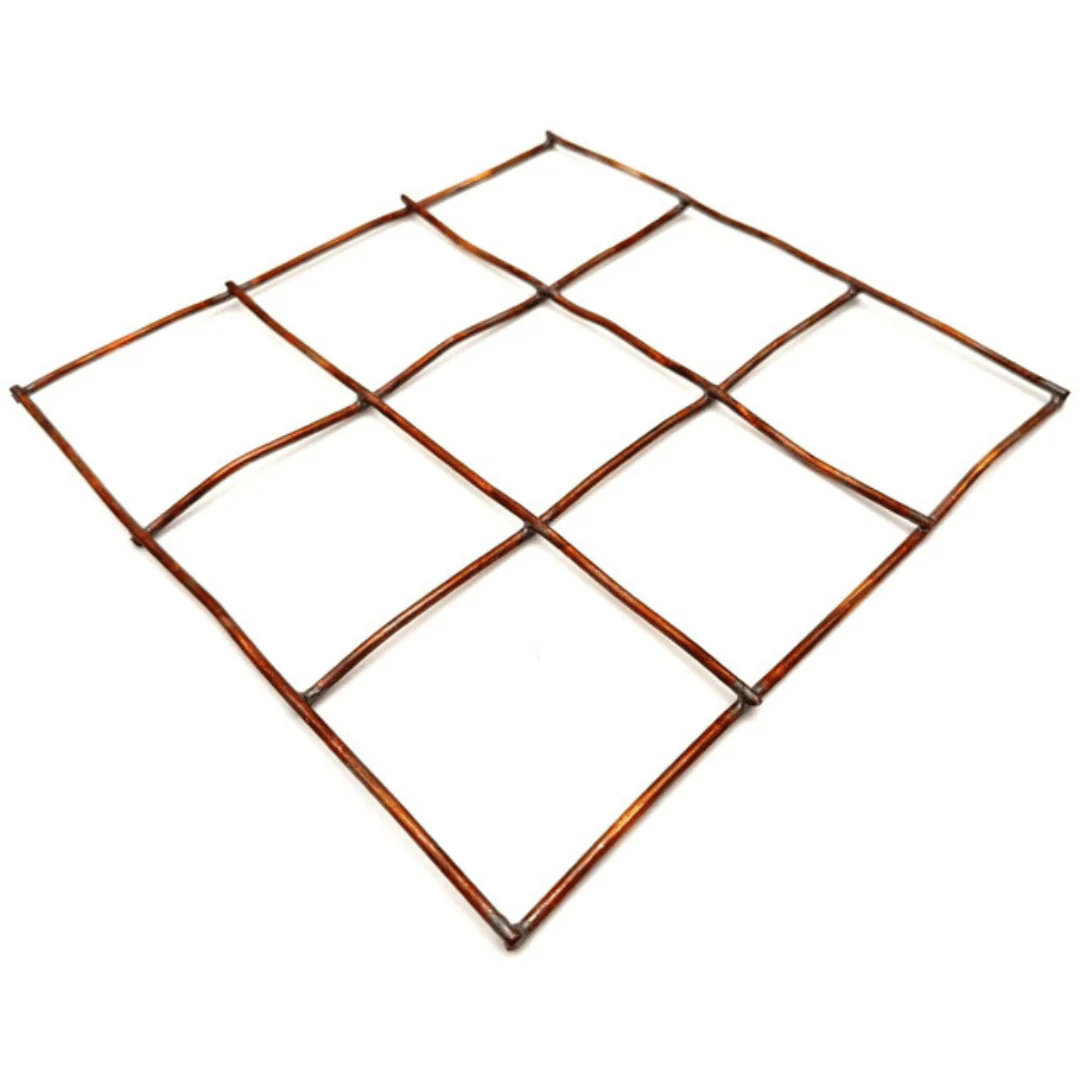

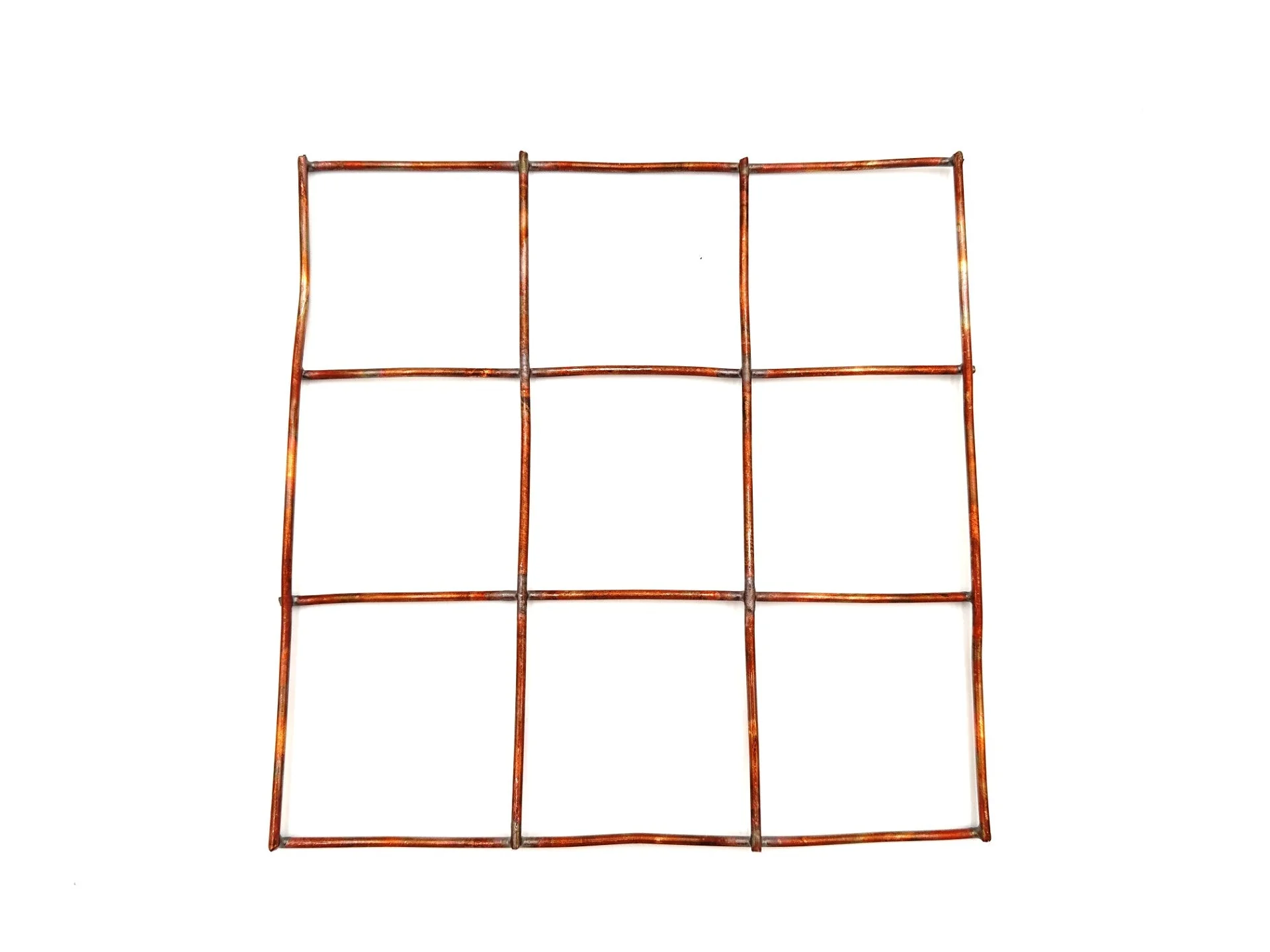

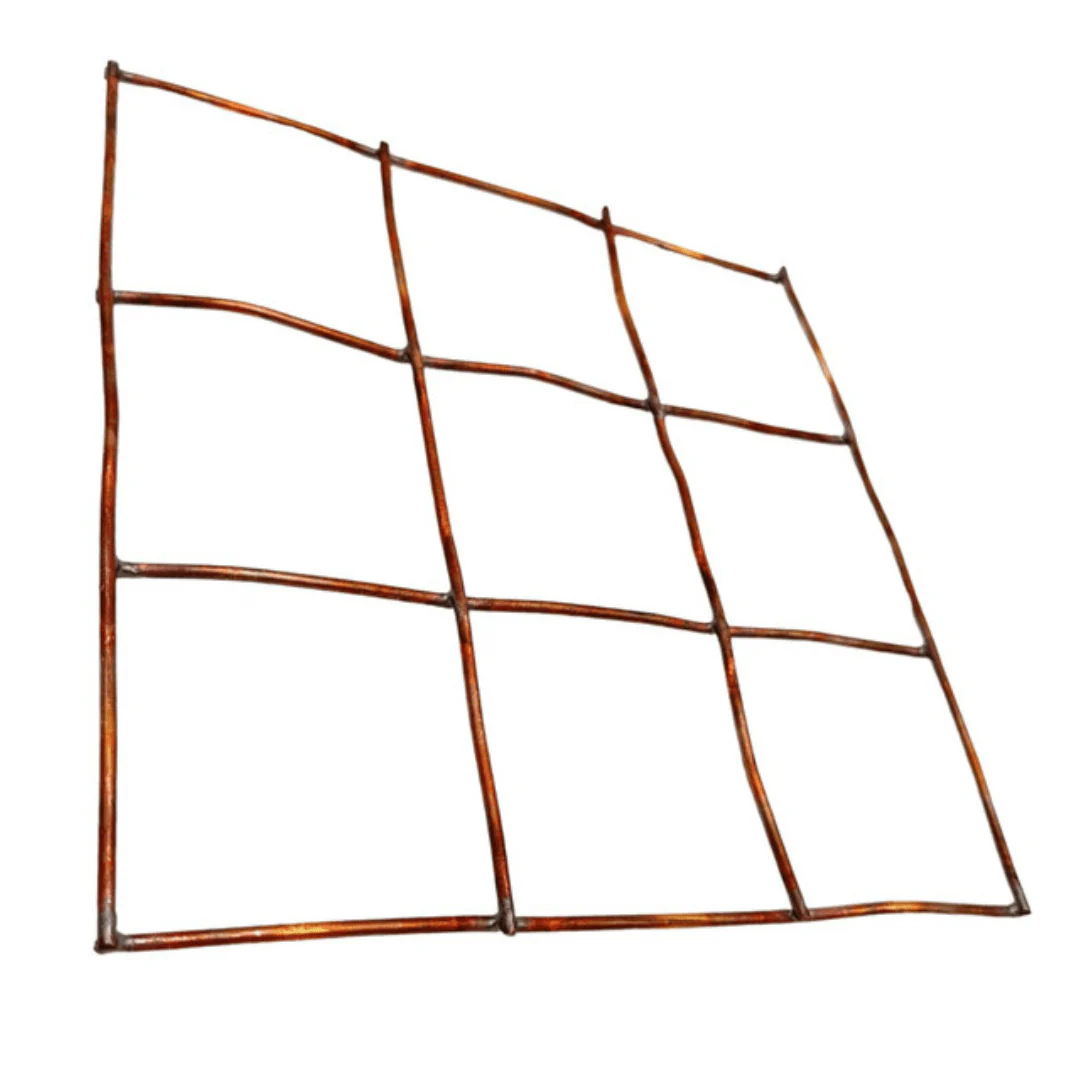

Crafted with exothermically welded #8 solid copper and featuring 12-inch grid spacing, the system is easy to install with its roll-out design. Available in two sizes:

• 2' x 100' Roll (EB2100) – Suitable for pools with a 12" beam
• 3' x 100' Roll (EB3100) – Required for beams less than 12"

Support Documents:

• User Manual

• Product Sheet

Protect your pool deck and loved ones with this reliable bonding solution, designed to prevent electrical hazards and ensure peace of mind.

A Copper Equipotential Bonding Grid is a safety system that prevents electrical shock around pools by equalizing electrical potential. Made of #8 solid copper in a mesh pattern, it’s installed beneath the pool deck, extending 3 feet from the inside edge, and connects all conductive elements. This ensures stray electrical currents are safely dissipated, protecting swimmers and complying with NEC® Section 680.26(C). It’s essential for residential and commercial pools to eliminate voltage differences and enhance safety.

The gauge measurement of the CMI 3' x 100' Copper Equipotential Bonding Grid Kit (EB3100) is #8 solid copper.

In terms of American Wire Gauge (AWG), #8 solid copper corresponds to:

• Diameter: 0.1285 inches (3.264 mm)
• Cross-sectional area: 8.37 mm²

This size is standard for bonding grids as required by NEC® 680.26(C).
