Water Pro BP7 Series Control System with 4.0kW Fixed Flow-Thru Heater and TP500 Topside Control

The BP7 Series Retrofit Kit has M8 technology equipped and features a 4.0KW heater and TP500 series spaside control. All circuits are convertible to 120 or 240V. Freeze protection and an Amp receptacle are included.

• M8 Technology Equipped
• With 1.375/5.5KW or 1.0/4.0KW Heater
• 12V Light Assembly
• All Circuits Convertible to 120 or 240VAC
• Spaside Control
• Amp Receptacles

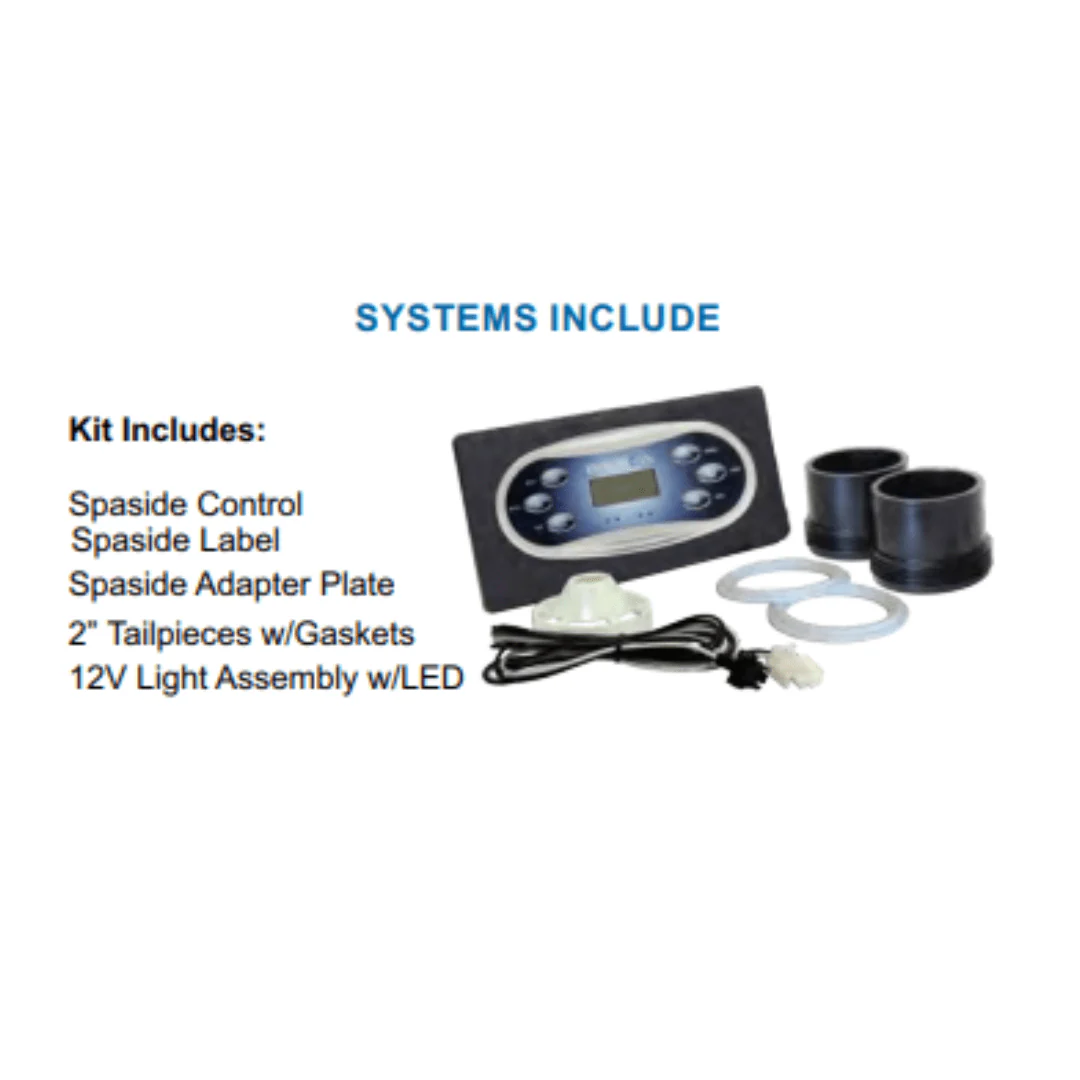

• Installation Kit (see below)
• US and Canada UL Recognized
• Freeze Protection
• Detailed Owner’s Manual & Wiring Diagram

Specifications:

• Brand: Balboa Water Pro Series By HydroQuip
• Model: Water Pro BP7 Series
• System Supports: Pump1 + Blower or Pump2
• System Voltage: 115/230V
• Heater Version: Flow-Thru
• Heater Wattage: 4.0kW
• Topside Included?: TP500
• Special Features: Circulation Pump = Supported, Wi-Fi Capable



  Detailed Owner’s Manual & Wiring Diagram

Note: **BP7 Series Systems Replace Old Model BP5 Series Systems**
